#03 - Winkhaus FGTE Thunderbolt Multi-Point Master Door Lock 45mm

(Code: 2601.612)
£ 77.96
(-16.50%) £ 65.10
(3 Item(s) In Stock)
Add to cart
#03 - Winkhaus FGTE Thunderbolt Multi-Point Master Door Lock 45mm
  • #03 - Winkhaus FGTE Thunderbolt Multi-Point Master Door Lock 45mm
  • #03 - Winkhaus FGTE Thunderbolt Multi-Point Master Door Lock 45mm
  • #03 - Winkhaus FGTE Thunderbolt Multi-Point Master Door Lock 45mm

Winkhaus FGTE Thunderbolt Twin Deadbolt Multipoint Master Door Lock for Double Door Systems, Lift-Lever Operation, 45mm Backset


- Priced per Single
- Lift-lever operation
- Accepts FGTE top & bottom shoot bolts
- Fully croppable faceplate
- 45mm backset, 92mm centres
- Core Stock Product

Winkhaus Product Ref: 5016084

Secured by Design PAS 24 Enhanced Security High Security 10 Year Guarantee
Residential Use Commercial Use Industrial Use

The Winkhaus FGTE Thunderbolt Master Door lock is designed for fitting to the first opening leaf of double doors as part of a full FGTE twin handle system. The Thunderbolt master lock has two nickel plated twin deadbolts which lock directly in to the opposing lock on the slave door. The lock can be used as is or can be fitted with top and bottom shootbolts for additional locking points in the head and cill. The faceplate is fully croppable to accomodate different door heights and handle height positions.

Supplied here in lock only format excluding shootbolts. Shootbolts can be purchased via the relevant product link in the "Related Items" section below.

  • Master Door Lock Operation:
    The central deadbolt and top/bottom twin deadbolts (plus the vertical shootbolts if fitted) are thrown internally or externally by lifting the door lever handle. The door is then locked by operation of the lock cylinder barrel. Unlocking and retraction of the bolts is by reverse action.
  • High Security:
    Thunderbolt locks have been tested in all frame materials to PAS23/24 Enhanced Security standards and are approved by the Police 'Secured by Design’ Security initiative and by the Master Locksmith Association’s Sold Secure Scheme.
  • 20mm Throw Nickel Plated Twin Deadbolts:
    The specially designed twin deadbolts are chamfered to allow a high degree of fitting tolerence for door installation. In addition, the deadbolt shape provides low operating forces and helps doors achieve a higher level of weather performance.
  • High Performance Central Gearbox:
    Tested to 100,000 cycles the sprung gearbox offers the lowest possible operating forces and helps prevent handle droop. Nickel plated sprung latchbolt and 20mm throw nickel steel deadbolt provide maximum strength in the centre of the door.
  • Corrosion Resistant:
    Winkhaus locks have a protective surface coating in excess of EN 1670 : 2007 Grade 4 which is designated as ‘Very high corrosion resistance’
  • Weather Seal Compression Adjustment:
    Enhanced bolt design and adjustment in the keeps provides low operating forces. With ± 2mm adjustment it is possible to adjust for misalignment of the door during and after installation.

For optimum security this lock should be fitted with TS 007 3 Star cylinders (see our ULTION Maximum Security range) or TS 007 1 Star cylinders with 2 Star cylinder guard (see our Adapta Prime High Security range). We recommend master and slave door cylinders are Keyed Alike.

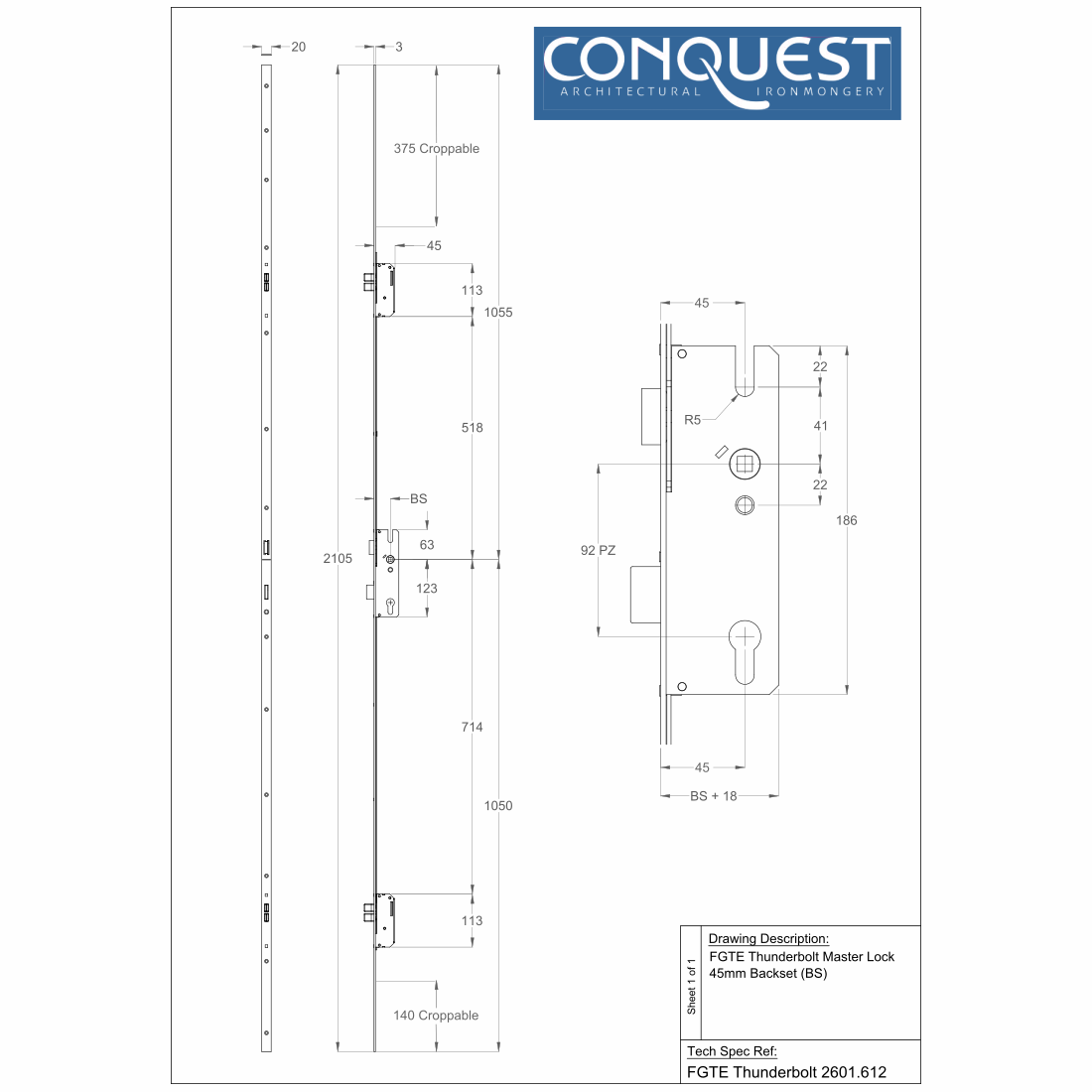

Lever handle furniture MUST be of a type that allows the handle to be lifted. Handle backplates should be compatible with the lock centres measurement and fixing centres measurements. Please refer to the relevant technical drawings.

One FGTE Thunderbolt Master Door Lock only. Shootbolts and keeps should be ordered separately if required.

This multipoint lock is normally available from stock. If we are temporarily out of stock you should allow 10 - 14 working days for despatch.

[Manufacturer's Brochure]
FGTE Double Door Multipoint Lock System
