#05 4" (101mm) Imperial G8020/G8021 Mortice Bathroom Lock for Lever Door Handles

(Code: 2527-784-650)
Select Finish :
SPRING STRENGTH :
£ 49.61
Available at Supplier
Available in 21 days
Add to cart
#05  4" (101mm) Imperial G8020/G8021 Mortice Bathroom Lock for Lever Door Handles
  • #05  4" (101mm) Imperial G8020/G8021 Mortice Bathroom Lock for Lever Door Handles
  • #05  4" (101mm) Imperial G8020/G8021 Mortice Bathroom Lock for Lever Door Handles
Made In Britain Suitable for FD30 Fire Doors

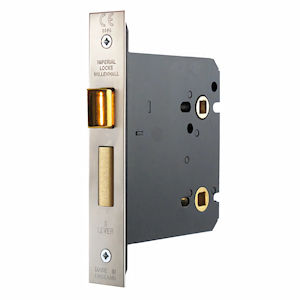

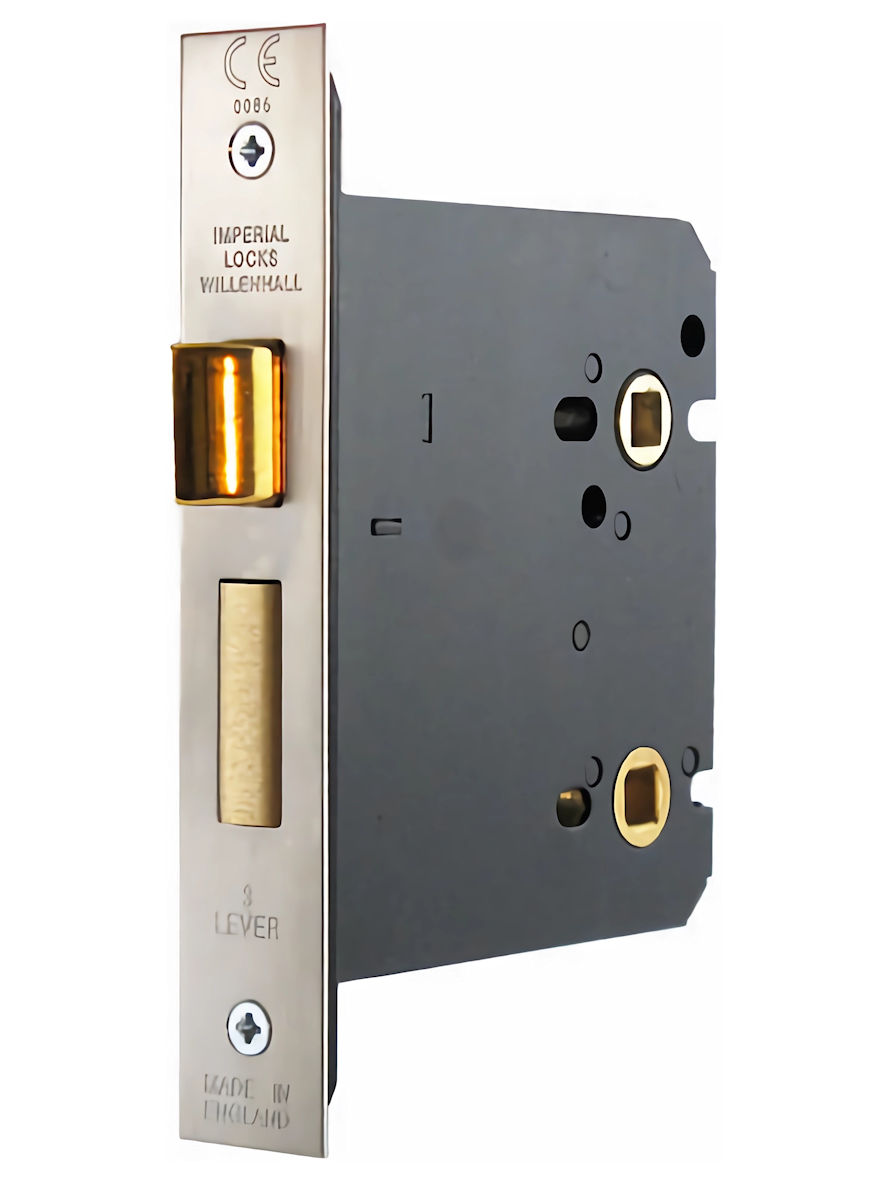

Premium Quality British Made Heavy Duty Mortice Bathroom/Toilet Privacy Lock for Self-Sprung or Un-Sprung Lever Door Handles

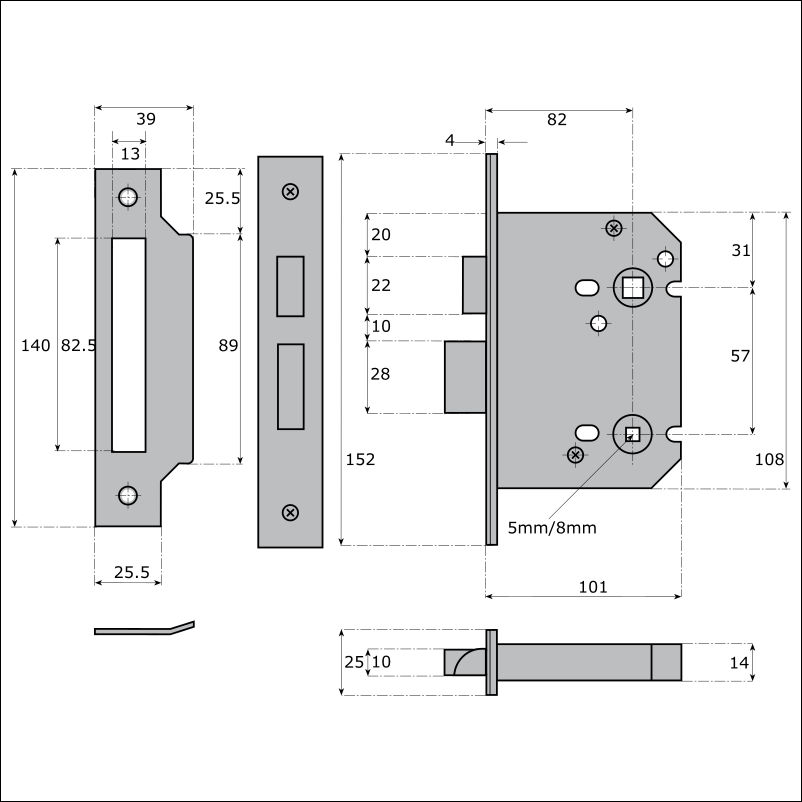

Dimensions: Case Depth 101mm, Backset 82mm, Centres 57mm
Thumbturn Spindle Follower: 5mm or 8mm

Imperial Product Ref: G8020 & G8021 101mm

Priced per SINGLE c/w Strikeplate & Fixing Screws
Core Stock Product

Use the drop down menu above to select from the following premium quality finishes:
(Click on a finish image for more details)
Satin Brass Unlacquered Polished Brass Unlacquered Antique Brass Unlacquered Imperial Bronze Unlacquered
Satin Stainless Steel Polished Stainless Steel Dull Black

This premium quality mortice privacy lock provides simple keyless locking of bathroom or toilet doors. Incorporating a heavy duty solid brass latchbolt for superior performance this lock is an excellent choice for both high quality residential and heavy use commercial applications and can be used with any bathroom thumbturn having a 5mm or 8mm square spindle. CE/UKCE certified and fully compliant for use on FD30/FD60 fire rated timber door sets when used with appropriate intumescent material. Manufactured in Britain by Guardian Lock & Engineering.

This lock is supplied "Standard Sprung" for use with self-sprung lever handles. For un-sprung handles please select the "Heavy Sprung" option when ordering.

Part of our 'UK+' range of modular sized upright mortice locks and latches.

Recommended for door thicknesses from 35mm to 54mm.

Suitable for handle roses with diagonally opposed bolt through fixings.

Available in a range of specialist finishes to compliment both traditional and contemporary styles. Choose from Satin Brass Unlacquered, Polished Brass Unlacquered, Antique Brass Unlacquered, Imperial Bronze Unlacquered, Satin Stainless Steel, Polished Stainless Steel and Dull Black.

Supplied complete with 5mm to 8mm spindle adapter, frame striking plate and fixings for wood.

Suitable for use on double doors with rebated meeting stiles when used with the appropriate [REBATE CONVERSION SET]

This mortice privacy lock is suitable for FD30/FD60 rated doors in high-use settings. For full compliance on fire doors, this product MUST be fitted with appropriate intumescent material on both door and frame.

Detailed advice on the selection of mortice locks & latches can be found [HERE]

To keep this mortice privacy lock in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Wipe clean with an oil impregnated cloth.
