#01 5" (127mm) Imperial G3011 Deep Horizontal 3 Lever Mortice Lock for Door Knobs

(Code: 2509-415-628)
Shopping Satisfaction
Select Finish :
£ 42.53
(4 Item(s) In Stock)
Add to cart
#01  5" (127mm) Imperial G3011 Deep Horizontal 3 Lever Mortice Lock for Door Knobs
  • #01  5" (127mm) Imperial G3011 Deep Horizontal 3 Lever Mortice Lock for Door Knobs
  • #01  5" (127mm) Imperial G3011 Deep Horizontal 3 Lever Mortice Lock for Door Knobs
Made In Britain Suitable for FD30 Fire Doors Medium Security

Premium Quality British Made Deep Horizontal 3 Lever Mortice Lock for Door Knob Furniture

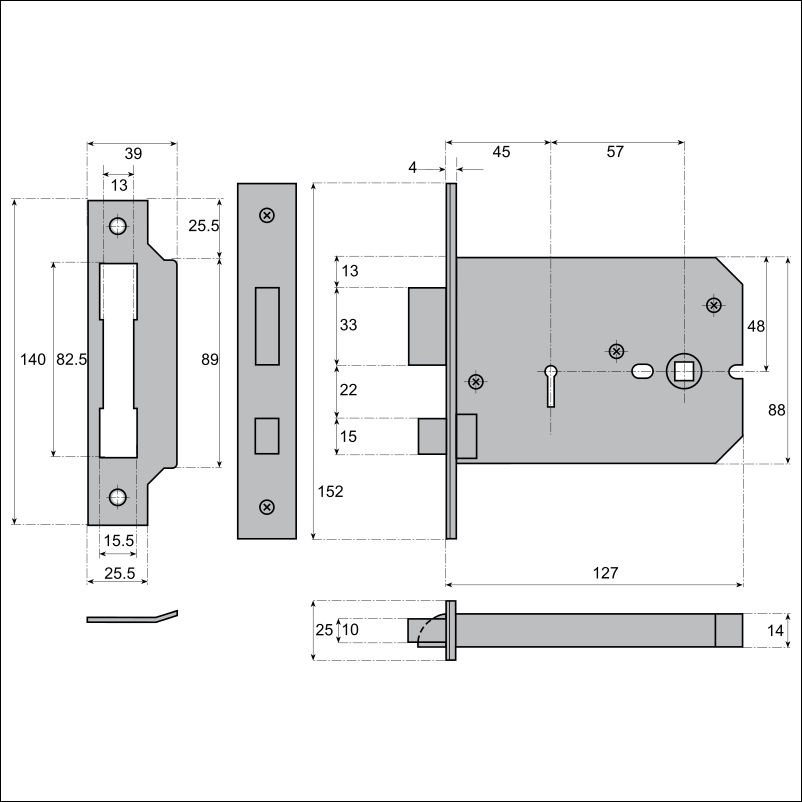

Dimensions: Case Depth 127mm, Backset 45mm, Centres 57mm

Priced per SINGLE c/w 2 Keys, Strikeplate & Fixing Screws
Core Stock Product

Imperial Product Ref: G3011 127mm

Use the drop down menu above to select from the following premium quality finishes:
(Click on a finish image for more details)
Satin Brass Unlacquered Polished Brass Unlacquered Antique Brass Unlacquered Imperial Bronze Unlacquered
Satin Stainless Steel Polished Stainless Steel Dull Black

Our premium quality, 3 Lever deep horizontal mortice locks provide a medium level of security for internal doors and are specifically designed for use with door knob furniture. Knobs are positioned away from the door edge to avoid rapping knuckles against the frame and the medium sprung, two-way action is particularly suitable for heavier door knobs and ring handles. This version will position the centre of the door knob 102mm from the door edge. Incorporating a heavy duty solid brass latchbolt for superior performance this lock is an excellent choice for both high quality residential and heavy use commercial applications. CE/UKCE certified and fully compliant for use on FD30/FD60 fire rated timber door sets when used with appropriate intumescent material. Manufactured in Britain by Guardian Lock & Engineering.

Recommended for door thicknesses from 35mm to 54mm.

Available in a range of specialist finishes to compliment both traditional and contemporary styles. Choose from Satin Brass Unlacquered, Polished Brass Unlacquered, Antique Brass Unlacquered, Imperial Bronze Unlacquered, Satin Stainless Steel, Polished Stainless Steel and Dull Black.

Supplied complete with 2 keys, frame striking plate and fixings for wood.

Suitable for use on double doors with rebated meeting stiles when used with the appropriate Rebate Conversion Set - please contact us for details

This horizontal mortice privacy lock is suitable for FD30/FD60 rated doors in high-use settings. For full compliance on fire doors, this product MUST be fitted with appropriate intumescent material on both door and frame.

Detailed advice on the selection of mortice locks & latches can be found [HERE]

These locks are supplied "to differ" (individually keyed) with 2 keys per lock. If required, we can supply these locks in passing groups operated by the same key ("keyed alike" or "keyed to pass") or Master Keyed to special order - please contact us for details.

To keep this horizontal mortice lock in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Wipe clean with an oil impregnated cloth.

Customer reviews
Shopping Satisfaction
 5/5
Finish : Polished Brass Unlacquered
Excellent quality. Can't fault. Would recommend.
Katrina B.
