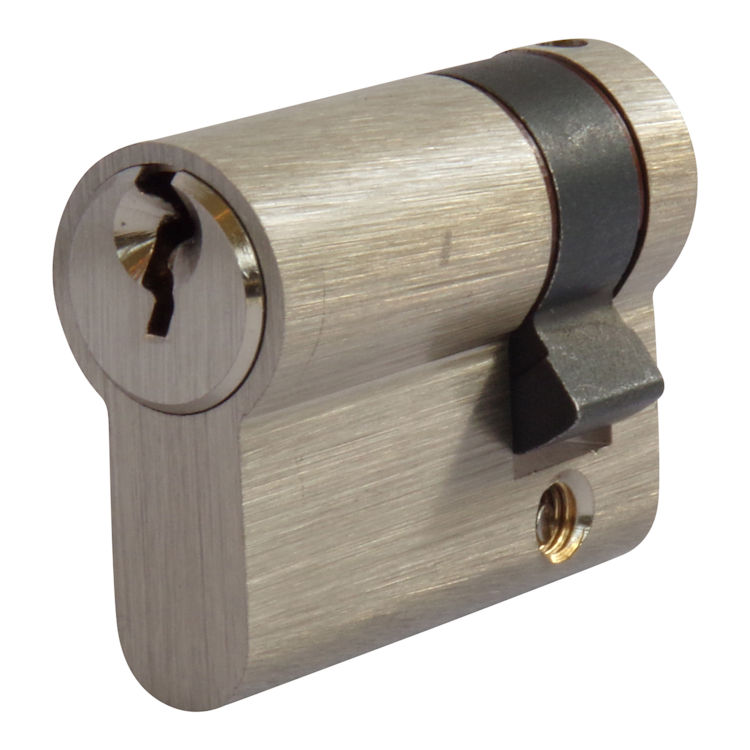

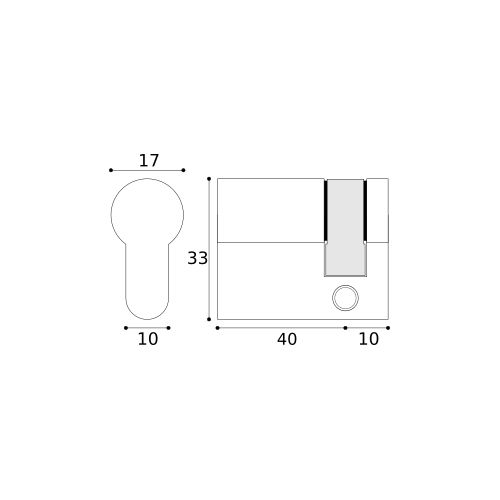

A 50mm (40mm/10mm) Euro Profile Single Cylinder Lock Barrel suitable for internal and external applications where locking/unlocking is required to one side of the door only. Part of our Adapta J79 5 pin open profile cylinder range and ideal for medium security applications in residential and commercial settings where higher security cylinders are not required. This version is supplied "Keyed Alike" - please refer to the information under the "Keying" tab above.
Use only with lock cases and multipoint locks described as "euro profile", "DIN euro" or "dual profile".
The minimum cylinder length required should be calculated by measuring from the lock centre line to the door face and adding the thickness of escutcheons or handle backplates. Cylinders should ideally be flush with, or protrude no more than 3mm/5mm from, the face of escutcheons or furniture backplates.
Detailed advice on the selection of euro profile cylinder lock barrels can be found in our [Euro Profile Lock Cylinders Specification Guide]
For best results and long life, this cylinder lock barrel should be lubricated with a specialist lock spray or good quality graphite powder. Do NOT use oils or WD40.
These cylinder lock barrels are supplied "keyed alike" in passing groups all operated by the same key. This option is a popular choice as it reduces the amount of different keys needed for multiple doors. This feature is available for all of our Adapta J79 cylinders so your group can contain any combination of the cylinder types, sizes and finishes within the range.
Cylinder lock barrels ordered keyed alike will be supplied in one passing group. If you require multiple groups please contact us prior to placing your order.
*Our Adapta J79 keyed alike cylinders are supplied with 3 keys each - if you order 4 cylinders, for example, you will receive a quantity of 12 keys.
Successfully type tested for conformity to all of the requirements of BS EN 1303:2005 including the additional requirements for fire/smoke door use - certificates are available on request
Fire rating is only applicable to this product when fitted to timber based door assemblies of proven fire resistance as defined in BS EN1634-1 or BS476 Part 22:1987 and when used with suitably rated locks.
One euro profile cylinder lock barrel as described complete with 3 keys and retaining screw.
This euro profile cylinder lock barrel is manufactured in keyed alike format to special order only. You should therefore allow 7 - 10 working days for delivery.
Special Order items are non returnable.
