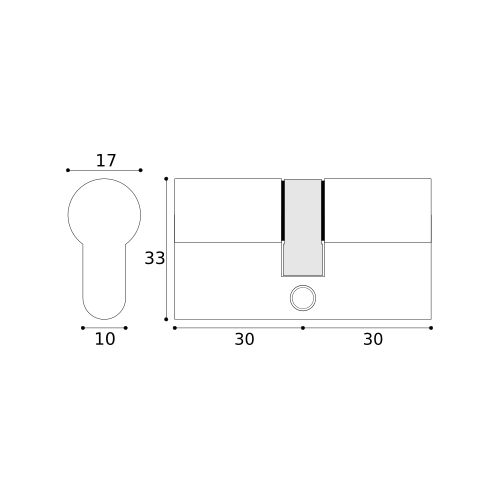

A 60mm (30mm/30mm) Euro Profile Double Cylinder Lock Barrel suitable for internal and external applications where key locking/unlocking is required to both sides of the door. Designed and built to withstand all common forms of attack including drilling, picking, bumping, twisting and pulling, our maximum security cylinders are ideally suited to external doors that require the highest physical security and restricted access to additional keys. In addition, a unique "Lock Down" mode prevents manipulation of the cylinder when a "snap" attack is detected. Our maximum security cylinders have been tested to the highest TS007 standard (3 Star) and are "Secured by Design" and "Sold Secure Diamond" approved products. Use as an upgrade for existing locks or as part of a high security package for new doors. This version is supplied "Keyed to Differ" - please refer to the information under the "Keying" tab above.
Use only with lock cases and multipoint locks described as "euro profile", "DIN euro" or "dual profile".
The minimum cylinder length required should be calculated by measuring from the lock centre line to the door face and adding the thickness of escutcheons or handle backplates. Cylinders should ideally be flush with, or protrude no more than 3mm/5mm from, the face of escutcheons or furniture backplates. Where locks are fitted off centre the minimum cylinder length should be calculated for each side individually by measuring from out from the lock centre line. Again, don't forget to add the thickness of escutcheons or backplates.
Detailed advice on the selection of euro profile lock cylinder barrels can be found in our [Euro Profile Lock Cylinders Specification Guide]
For best results and long life, this lock cylinder barrel should be lubricated with a specialist lock spray or good quality graphite powder. Do NOT use oils or WD40.
This cylinder is supplied "Keyed to Differ" whereby each cylinder is operated by it's own individual keys (2 supplied). Additional keys per cylinder can be ordered via the drop down list.
Successfully type tested for conformity to all of the requirements of BS EN 1303:2005 - certificates are available on request. In addition, this product has been successfully type tested for conformity to the requirements of TS 007:2014 + A1:2015 and has achieved a 3 Star rating.
One euro profile double cylinder lock barrel as described complete with 2 keys and retaining screw.
This maximum security euro profile cylinder lock barrel is normally available from stock for immediate despatch. Orders for cylinders with additional keys take a little longer so you should allow an extra few days.
