#01 2.5" (64mm) Tubular Mortice Privacy Door Bolt

(Code: 2417-352-150)
Select Finish :
£ 7.21
(3 Item(s) In Stock)
Add to cart

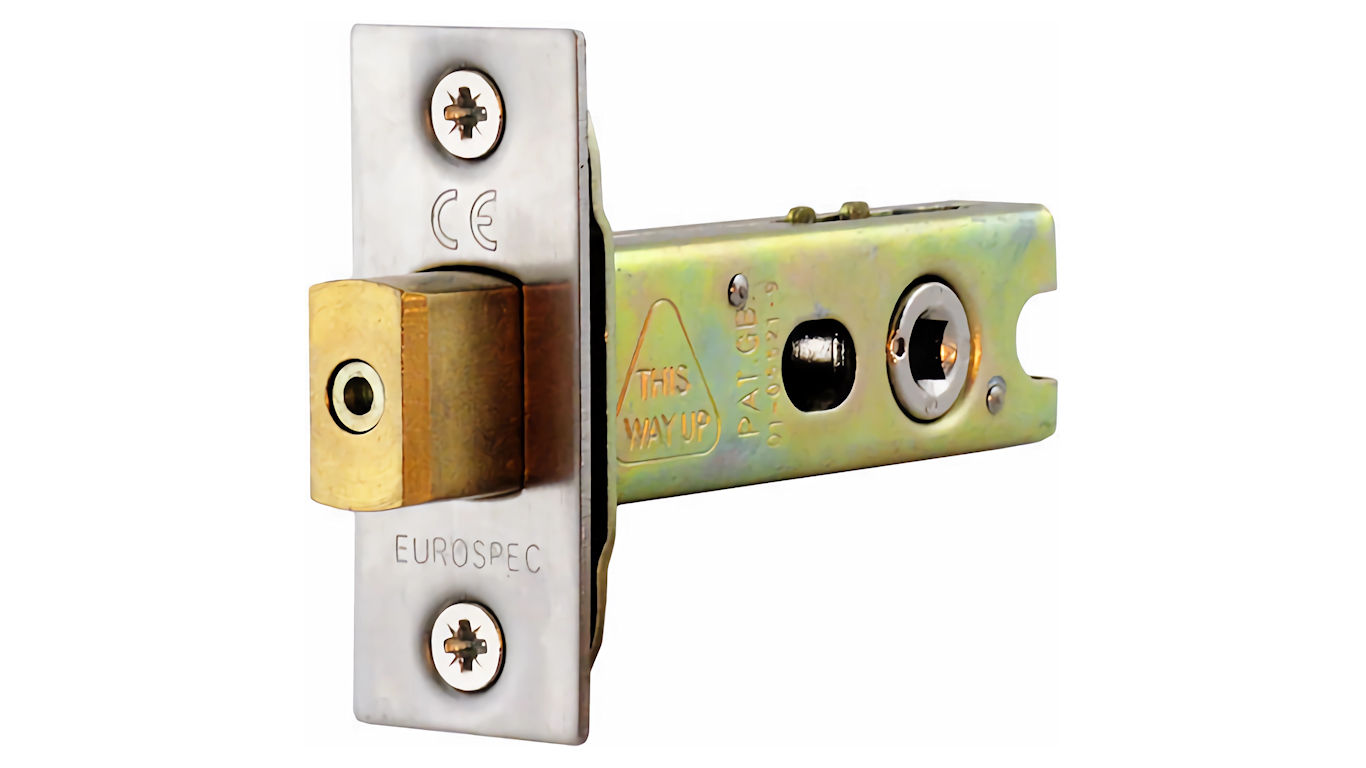

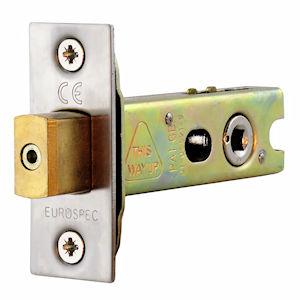

#01 2.5" (64mm) Tubular Mortice Privacy Door Bolt
  • #01 2.5" (64mm) Tubular Mortice Privacy Door Bolt
  • #01 2.5" (64mm) Tubular Mortice Privacy Door Bolt
  • #01 2.5" (64mm) Tubular Mortice Privacy Door Bolt
Suitable for FD30/FD60 Fire Doors

Medium Duty Tubular Mortice Privacy Bolt for Bathroom & Toilet Doors

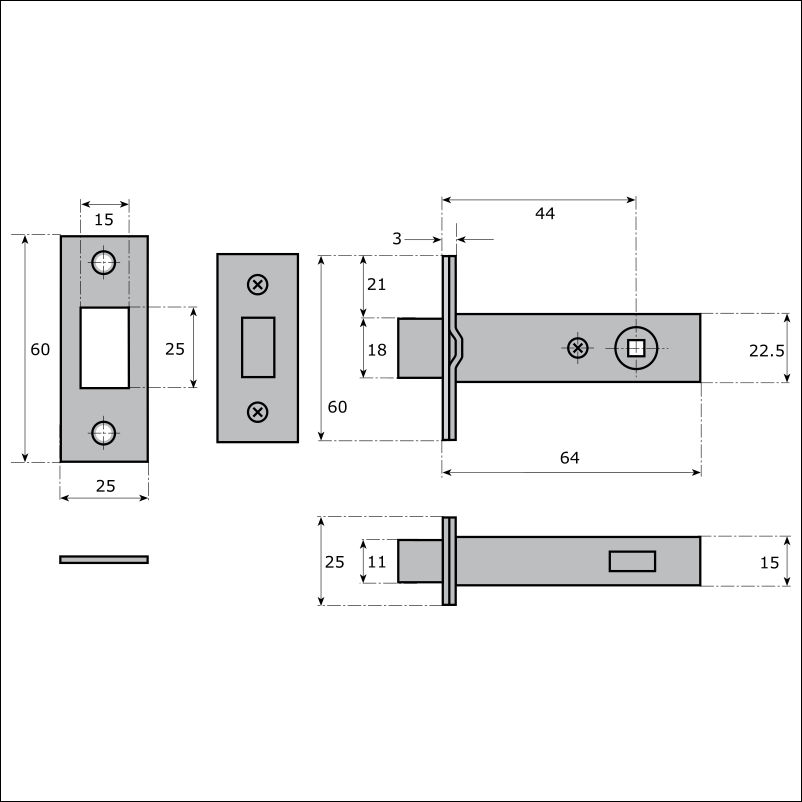

Dimensions: Case Depth 64mm, Backset 44mm
Spindle Follower: 5mm Square

Priced per SINGLE c/w Strikeplate & Fixing Screws
Core Stock Product

Use the drop down menu above to select from the following quality finishes:
(Click on a finish image for more details)
Satin Stainless Steel Polished Stainless Steel Satin Brass Plated Stainless Brass PVD
Antique Brass Plated Dark Matt Bronze Plated Dull Black

Privacy Bolts provide simple, keyless locking on bathroom doors and toilet doors with operation normally by internal thumbturn and external release. This medium duty version is a good choice for general residential settings and can be used with any bathroom thumbturn having a 5mm square spindle. Suitable for use with roses having horizontally aligned bolt through fixings.CE/UKCE certified and fully compliant for use on FD30/FD60 fire rated timber door sets when used with this [INTUMESCENT LINER PACK]

Available in a range of quality finishes - Satin Stainless Steel, Polished Stainless Steel, Satin Brass Plated, Stainless Brass PVD, Antique Brass Plated, Dark Matt Bronze Plated and Dull Black.

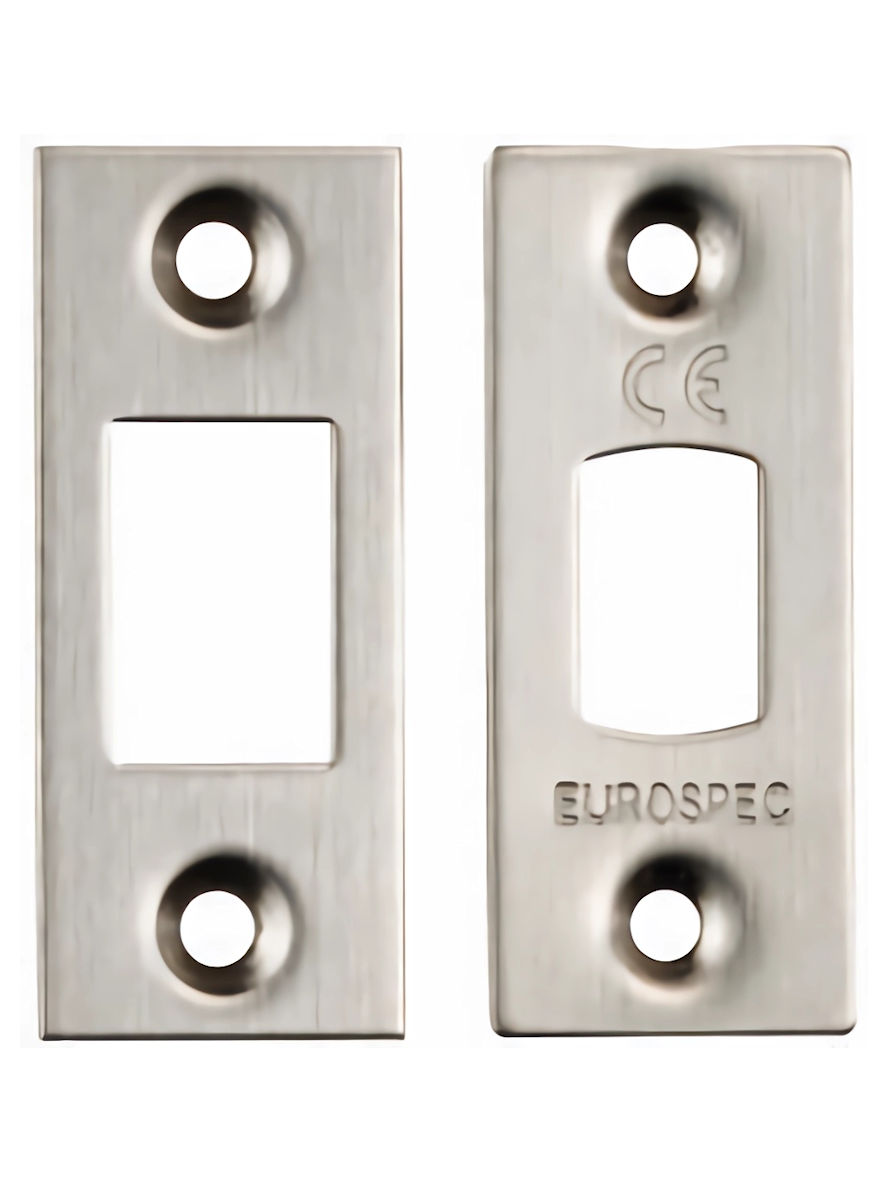

Supplied complete with frame striking plate and fixings for wood.

This tubular mortice privacy bolt is suitable for FD30/FD60 rated doors in light to medium use settings. For full compliance on fire doors, this product MUST be fitted with appropriate intumescent material on both door and frame.

Detailed advice on the selection of mortice locks & latches can be found [HERE]

To keep this tubular mortice privacy bolt in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Wipe clean with an oil impregnated cloth.
