#09 - 35mm/35mm Euro Profile Key & Thumbturn Cylinder KA

(Code: 2754-122-139KA)
Finish :
£ 23.21
Available at Supplier
Available in 10 days
Add to cart
#09 - 35mm/35mm Euro Profile Key & Thumbturn Cylinder KA
  • #09 - 35mm/35mm Euro Profile Key & Thumbturn Cylinder KA
  • #09 - 35mm/35mm Euro Profile Key & Thumbturn Cylinder KA

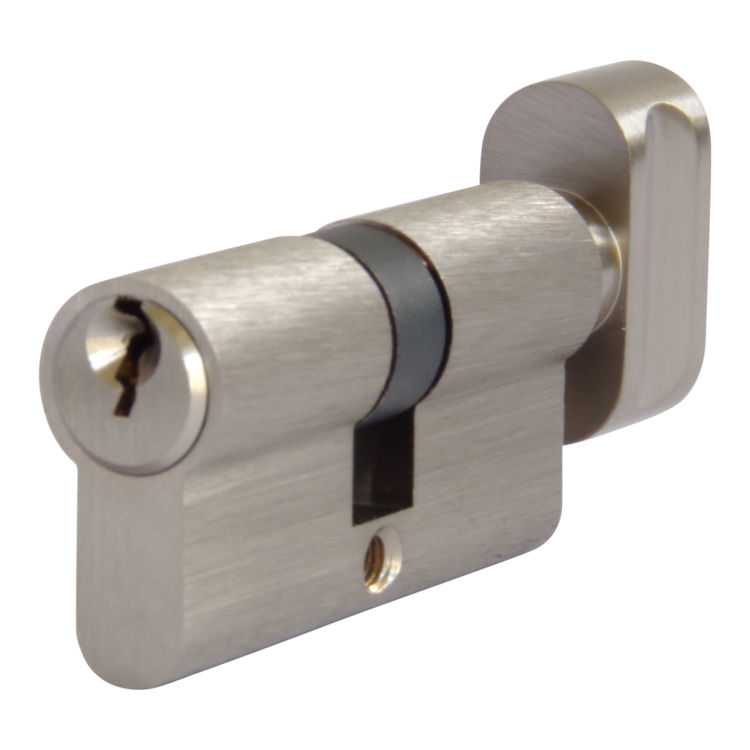

70mm (35mm/35mm) Euro Profile Key & Thumbturn Cylinder Lock Barrel Keyed Alike in Passing Groups

- Priced per Single complete with 3 keys - additional keys available*
- Key operation externally, thumbturn operation internally
- Medium security 5 pin mechanism
- Keyed alike in passing groups
- Special Order Item

Satin Brass Unlacquered Polished Brass Unlacquered Antique Brass Unlacquered
Imperial Dark Bronze Satin Nickel Polished Chrome

Medium Security BS EN 1303 Suitable for Fire Doors 10 Year Guarantee
Residential Use Commercial Use

A 70mm (35mm/35mm) Euro Profile Key and Thumbturn Cylinder Lock Barrel suitable for applications where key locking/unlocking is required externally with thumbturn operation internally. Part of our Adapta J79 5 pin open profile cylinder range and ideal for medium security applications in residential and commercial settings where higher security cylinders are not required. This version is supplied "Keyed Alike" - please refer to the information under the "Keying" tab above.

Use only with lock cases and multipoint locks described as "euro profile", "DIN euro" or "dual profile".

For locks fitted centrally, the minimum cylinder length required is calculated by adding the door thickness to the thickness of escutcheons or handle backplates. Cylinders should ideally be flush with, or protrude no more than 3mm/5mm from, the face of escutcheons or furniture backplates. Where locks are fitted off centre the minimum cylinder length should be calculated for each side individually by measuring out from the lock centre line. Again, don't forget to add the thickness of escutcheons or backplates.

Detailed advice on the selection of euro profile cylinder lock barrels can be found in our [Euro Profile Lock Cylinders Specification Guide]

For best results and long life, this cylinder lock barrel should be lubricated with a specialist lock spray or good quality graphite powder. Do NOT use oils or WD40.

These cylinder lock barrels are supplied "keyed alike" in passing groups all operated by the same key. This option is a popular choice as it reduces the amount of different keys needed for multiple doors. This feature is available for all of our Adapta J79 cylinders so your group can contain any combination of the cylinder types, sizes and finishes within the range.

Cylinder lock barrels ordered keyed alike will be supplied in one passing group. If you require multiple groups please contact us prior to placing your order.

*Our Adapta J79 keyed alike cylinders are supplied with 3 keys each - if you order 4 cylinders, for example, you will receive a quantity of 12 keys.

Successfully type tested for conformity to all of the requirements of BS EN 1303:2005 including the additional requirements for fire/smoke door use - certificates are available on request

Fire rating is only applicable to this product when fitted to timber based door assemblies of proven fire resistance as defined in BS EN1634-1 or BS476 Part 22:1987 and when used with suitably rated locks.

One euro profile cylinder lock barrel as described complete with 3 keys and retaining screw.

This euro profile cylinder lock barrel is manufactured in keyed alike format to special order only. You should therefore allow 7 - 10 working days for delivery.

Special Order items are non returnable.

This key and thumbturn cylinder lock barrel is also available with the following options:

- Classroom/Clutch thumbturn
- Larger DDA thumbturn

Please contact us for details and prices.
