#10 3" (73mm) Union 3G110 5 Detainer High Security Mortice Deadlock

(Code: 2507-213-130)
Select Finish :
£ 164.00
(1 Item(s) In Stock)
Add to cart

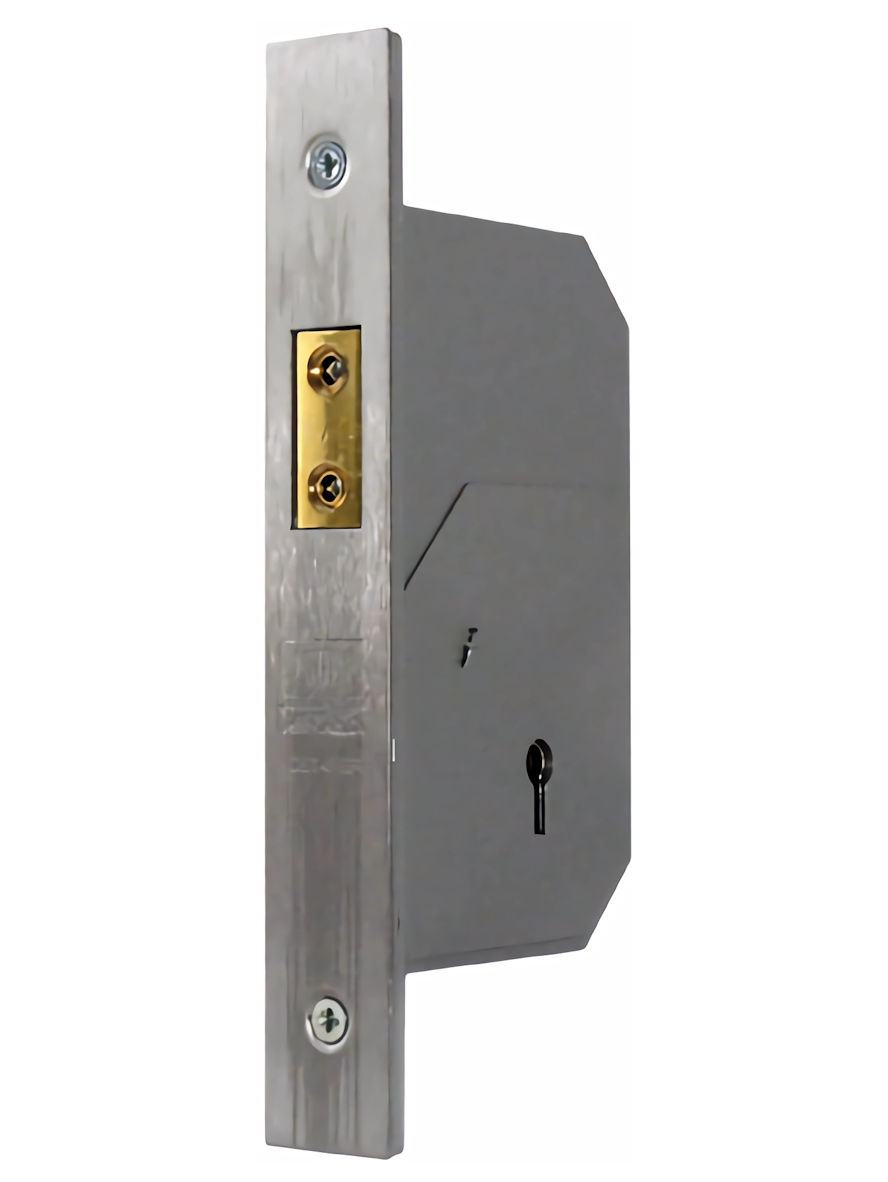

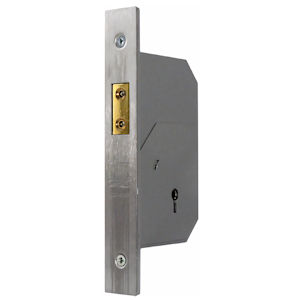

#10 3" (73mm) Union 3G110 5 Detainer High Security Mortice Deadlock
  • #10 3" (73mm) Union 3G110 5 Detainer High Security Mortice Deadlock
  • #10 3" (73mm) Union 3G110 5 Detainer High Security Mortice Deadlock
Suitable for FD30/FD60 Fire Doors High Security

British Made High Security 5 Detainer Mortice Deadlock

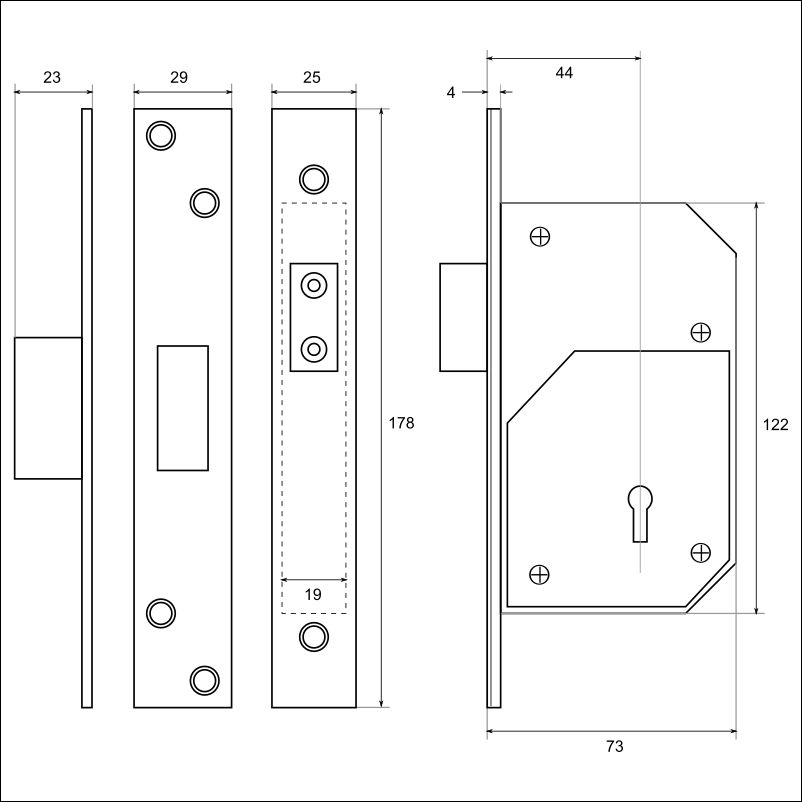

Dimensions: Case Depth 73mm, Backset 44mm

Priced per SINGLE c/w 2 Keys, Strikeplate & Fixing Screws
Core Stock Product

Union Product Ref: 3G110

Use the drop down menu above to select from the following quality finishes:

Polished Brass Satin Stainless Steel

Probably one of the best locks of it's type ever made, the 3G110 is a High Security Deadlock that has been a popular choice for domestic and industrial/commercial entrance doors for nearly a century. Incorporating the famous Chubb 5 Detainer mechanism the lock has excellent protection against all common forms of attack including a positive throw solid brass deadbolt with hardened steel anti-saw rollers and hardened steel anti-drill plates. CE/UKCE certified and fully compliant for use on FD30/FD60 fire rated timber door sets when used with appropriate intumescent material. Originally bearing the 'Chubb' name, this lock is manufactured in Britain under the Union brand name.

Recommended for door thicknesses from 44mm to 56mm.

Supplied complete with 2 keys, frame striking plate and fixings for wood.

This mortice deadlock is suitable for FD30/FD60 rated doors in high-use settings. For full compliance on fire doors, this product MUST be fitted with appropriate intumescent material on both door and frame.

Detailed advice on the selection of mortice locks & latches can be found [HERE]

These locks are supplied "to differ" (individually keyed) with 2 keys per lock. If required, we can supply these locks in passing groups operated by the same key ("keyed alike" or "keyed to pass") to special order - please contact us for details.

To keep this mortice deadlock in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Wipe clean with an oil impregnated cloth.
