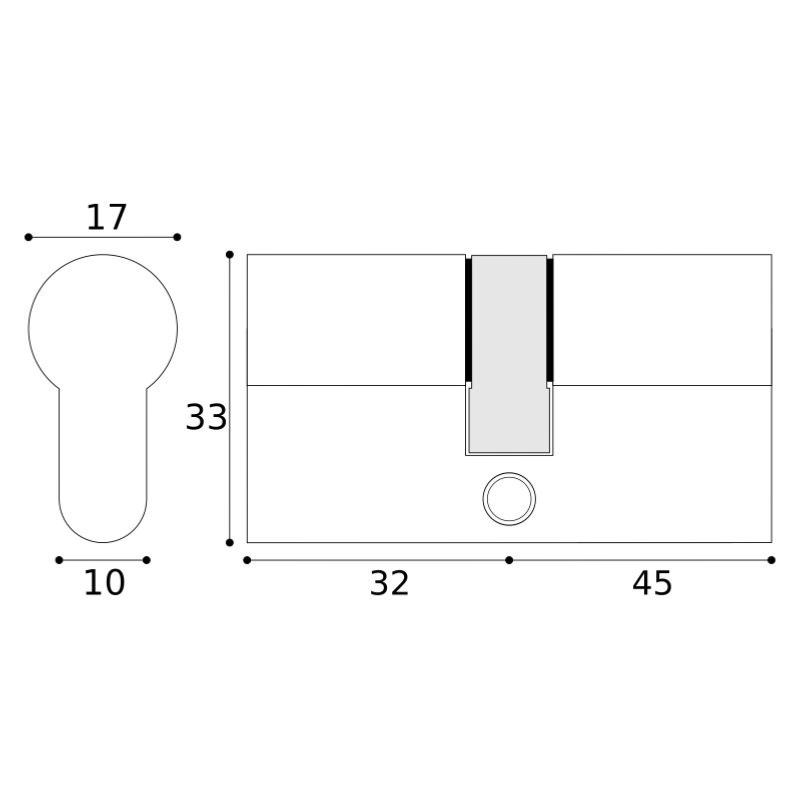

A 75mm (30mm/45mm Off-Set) Euro Profile Double Cylinder Lock Barrel suitable for internal and external applications where key locking/unlocking is required to both sides of the door. Designed and built to withstand all common forms of attack including drilling, picking, bumping, twisting and pulling, our maximum security cylinders are ideally suited to external doors that require the highest physical security and restricted access to additional keys. In addition, a unique "Lock Down" mode prevents manipulation of the cylinder when a "snap" attack is detected. Our maximum security cylinders have been tested to the highest TS007 standard (3 Star) and are "Secured by Design" and "Sold Secure Diamond" approved products. Use as an upgrade for existing locks or as part of a high security package for new doors. This version is supplied "Keyed Alike" - please refer to the information under the "Keying" tab.
Use only with lock cases and multipoint locks described as "euro profile", "DIN euro" or "dual profile".
The minimum cylinder length required should be calculated by measuring from the lock centre line to the door face and adding the thickness of escutcheons or handle backplates. Cylinders should ideally be flush with, or protrude no more than 3mm/5mm from, the face of escutcheons or furniture backplates. Where locks are fitted off centre the minimum cylinder length should be calculated for each side individually by measuring from out from the lock centre line. Again, don't forget to add the thickness of escutcheons or backplates.
Detailed advice on the selection of euro profile lock cylinder barrels can be found in our [Euro Profile Lock Cylinders Specification Guide]
For best results and long life, this cylinder lock barrel should be lubricated with a specialist lock spray or good quality graphite powder. Do NOT use oils or WD40.
These cylinder lock barrels are supplied "keyed alike" in passing groups all operated by the same key. This option is a popular choice as it reduces the amount of different keys needed for multiple doors. This feature is available for all of our ULTION cylinders so your group can contain any combination of the cylinder types, sizes and finishes within the range.
Important: Keyed Alike cylinders are supplied with 3 keys only per group regardless of the quanity of cylinders ordered. To order additional keys you should order one cylinder with the total key quantity required and then order the remaining cylinders for your group.
Cylinder lock barrels ordered keyed alike will be supplied in one passing group. If you require multiple groups please contact us prior to placing your order.
Successfully type tested for conformity to all of the requirements of BS EN 1303:2005 - certificates are available on request. In addition, this product has been successfully type tested for conformity to the requirements of TS 007:2014 + A1:2015 and has achieved a 3 Star rating.
One euro profile double cylinder lock barrel as described complete with retaining screw.
This euro profile cylinder lock barrel is manufactured in keyed alike format to special order only. You should therefore allow 3 working days for despatch.
Special Order items are non returnable.
