#10 3" (76mm) Imperial G8028/G8029 Privacy Clawbolt for Sliding/Folding Doors

(Code: 2414-383-650)
Select Finish :
£ 38.83
(3 Item(s) In Stock)
Add to cart
#10  3" (76mm) Imperial G8028/G8029 Privacy Clawbolt for Sliding/Folding Doors
  • #10  3" (76mm) Imperial G8028/G8029 Privacy Clawbolt for Sliding/Folding Doors
  • #10  3" (76mm) Imperial G8028/G8029 Privacy Clawbolt for Sliding/Folding Doors
Made In Britain Suitable for FD30 Fire Doors

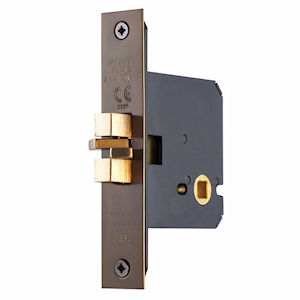

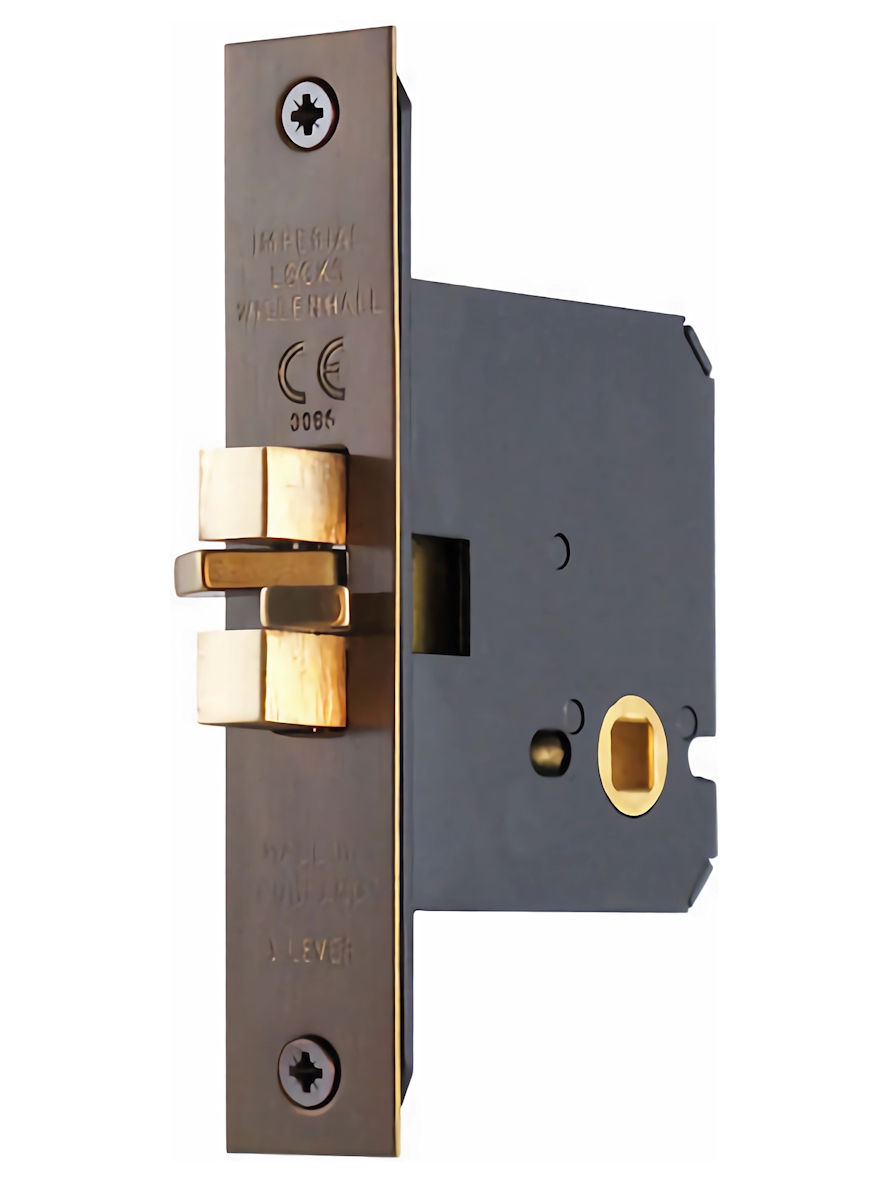

Premium Quality British Made Heavy Duty Mortice Privacy Clawbolt for Sliding or Folding Bathroom & Toilet Doors

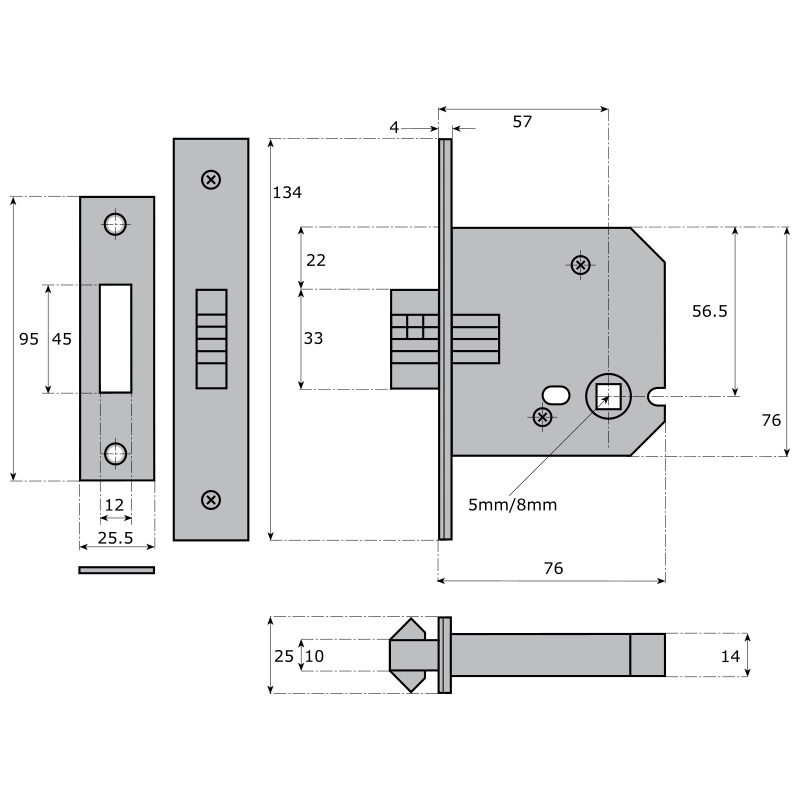

Dimensions: Case Depth 76mm, Backset 57mm
Spindle Follower: 5mm or 8mm

Priced per SINGLE c/w Strikeplate & Fixing Screws
Core Stock Product

Imperial Product Ref: G8028 & G8029 76mm

Use the drop down menu above to select from the following premium quality finishes:
(Click on a finish image for more details)
Satin Brass Unlacquered Polished Brass Unlacquered Antique Brass Unlacquered Imperial Bronze Unlacquered
Satin Stainless Steel Polished Stainless Steel Dull Black

Privacy Bolts provide simple, keyless locking on bathroom doors and toilet doors with operation normally by internal thumbturn and external release. This premium quality, heavy duty clawbolt version is designed for use on straight sliding (pocket doors etc) or folding doors that butt up to the jamb or an opposing door edge when closed. The expanding clawbolt engages into the strikeplate to prevent lateral movement of the door. Ideal for high end residential settings and can be used with any bathroom thumbturn having a 5mm or 8mm square spindle. CE/UKCE certified and fully compliant for use on FD30/FD60 fire rated timber door sets when used with appropriate intumescent material. Manufactured in Britain by Guardian Lock & Engineering.

Available in a range of specialist finishes to compliment both traditional and contemporary styles. Choose from Satin Brass Unlacquered, Polished Brass Unlacquered, Antique Brass Unlacquered, Imperial Bronze Unlacquered, Satin Stainless Steel, Polished Stainless Steel and Dull Black.

Supplied complete with 5mm to 8mm spindle adapter, frame striking plate and fixings for wood.

Suitable for use on double doors with rebated meeting stiles when used with the appropriate [REBATE CONVERSION SET]

This mortice privacy clawbolt is suitable for FD30/FD60 rated doors in high-use settings. For full compliance on fire doors, this product MUST be fitted with appropriate intumescent material on both door and frame.

Detailed advice on the selection of mortice locks & latches can be found [HERE]

To keep this mortice privacy bolt in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Wipe clean with an oil impregnated cloth.
