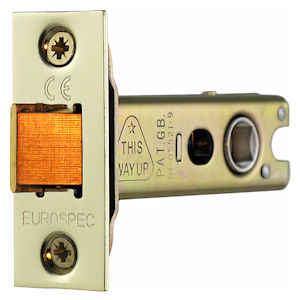

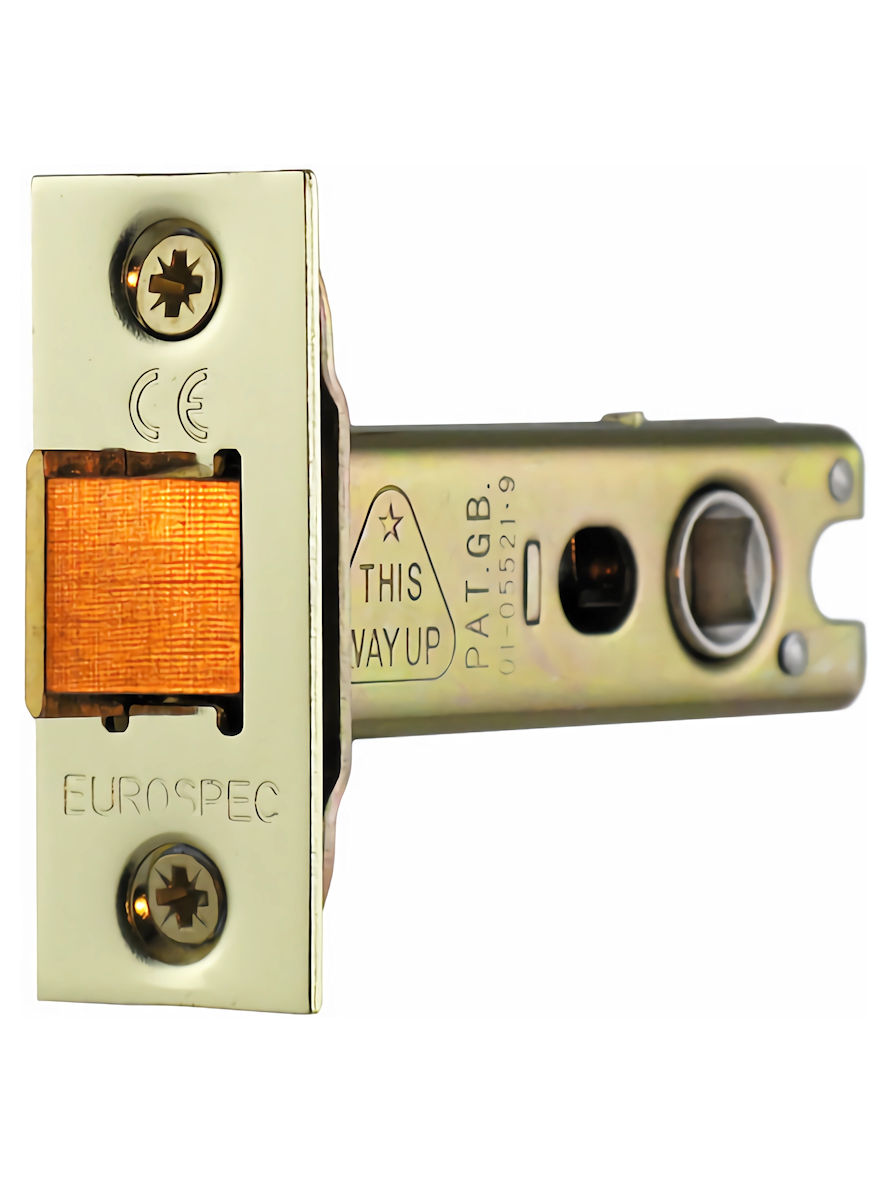

#04 3" (78mm) Tubular Mortice Latch for Lever Door Handles

(Code: 2404-203-150)
Select Finish :
£ 6.91
(2 Item(s) In Stock)
Add to cart
#04 3" (78mm) Tubular Mortice Latch for Lever Door Handles
  • #04 3" (78mm) Tubular Mortice Latch for Lever Door Handles
  • #04 3" (78mm) Tubular Mortice Latch for Lever Door Handles
  • #04 3" (78mm) Tubular Mortice Latch for Lever Door Handles
  • #04 3" (78mm) Tubular Mortice Latch for Lever Door Handles
Suitable for FD30/FD60 Fire Doors

Medium Duty Tubular Mortice Latch for Self-Sprung Lever Door Handles

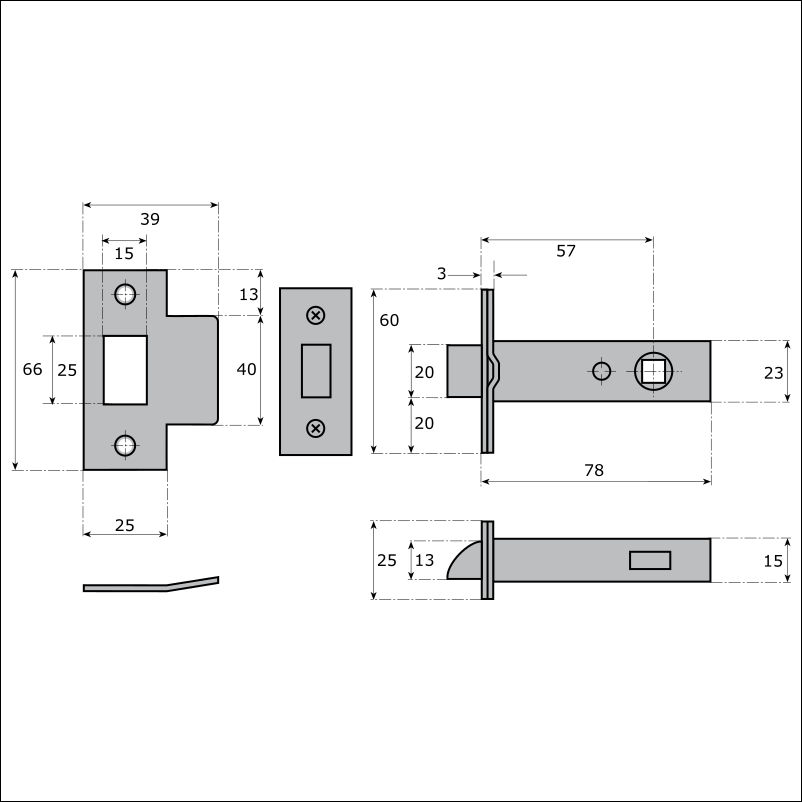

Dimensions: Case Depth 78mm, Backset 57mm

Priced per SINGLE c/w Strikeplate & Fixing Screws
Core Stock Product

Use the drop down menu above to select from the following quality finishes:
(Click on a finish image for more details)
Satin Stainless Steel Polished Stainless Steel Satin Brass Plated Stainless Brass PVD
Antique Brass Plated Dark Matt Bronze Plated Dull Black

This best selling medium duty tubular mortice door latch is ideal for residential applications and is the standard choice for many of our joinery trades customers. Suitable for 'self-sprung' lever handle furniture on backplate or rose and can be used with furniture having vertical or horizontal bolt through fixings. The latchbolt is easily reversible on site to suit left or right hand hung doors. CE/UKCE certified and fully compliant for use on FD30/FD60 fire rated timber door sets when used with this [INTUMESCENT LINER PACK]

Recommended for door thicknesses from 35mm to 48mm.

Available in a range of quality finishes - Satin Stainless Steel, Polished Stainless Steel, Satin Brass Plated, Stainless Brass PVD, Antique Brass Plated, Dark Matt Bronze Plated and Dull Black.

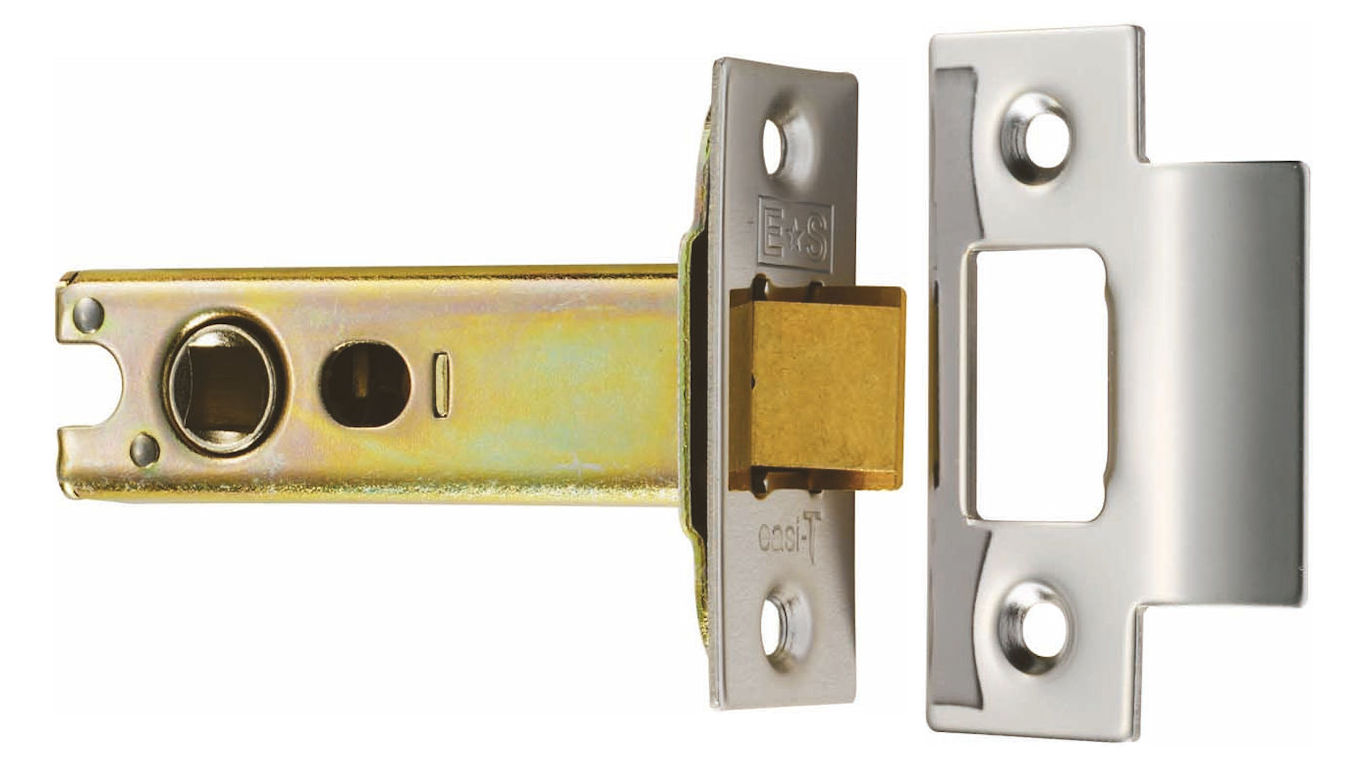

Supplied complete with frame striking plate and fixings for wood.

Suitable for use on double doors with rebated meeting stiles when used with the appropriate [REBATE CONVERSION SET]

This tubular mortice latch is suitable for FD30/FD60 rated doors in light to medium use settings. For full compliance on fire doors, this latch MUST be fitted with appropriate intumescent material on both door and frame.

This latch is medium sprung and should only be used with lever handle furniture with integral springing in the rose or backplate. NOT recommended for use with door knobs or ring handle furniture.

Detailed advice on the selection of mortice locks & latches can be found [HERE]

To keep this tubular mortice latch in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Wipe clean with an oil impregnated cloth.
