#07 3" (80mm) Imperial G4060 Tubular Mortice Latch for Door Knobs

(Code: 2405-203-650)
Select Finish :
£ 12.23
(8 Item(s) In Stock)
Add to cart

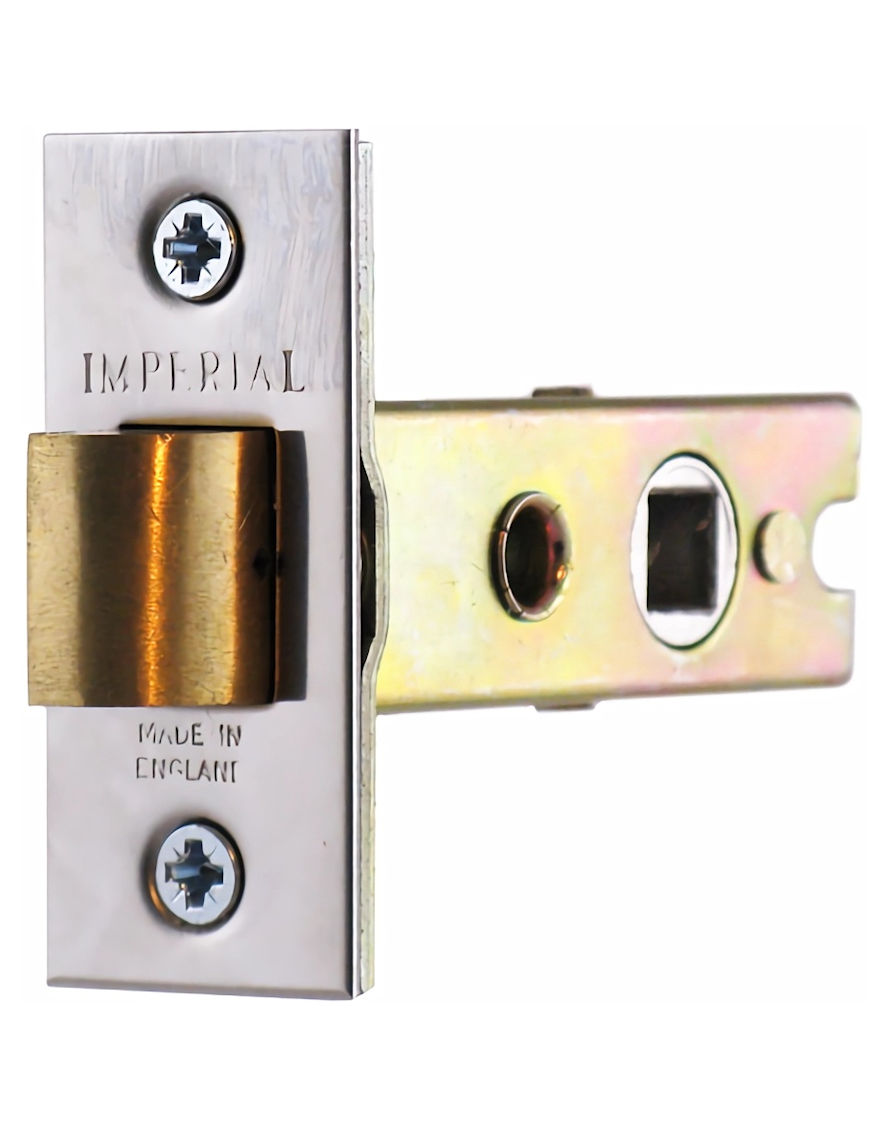

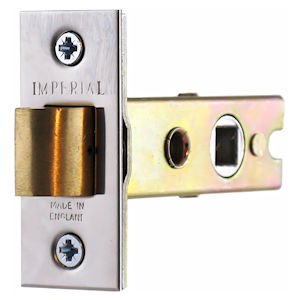

#07 3" (80mm) Imperial G4060 Tubular Mortice Latch for Door Knobs
  • #07 3" (80mm) Imperial G4060 Tubular Mortice Latch for Door Knobs
  • #07 3" (80mm) Imperial G4060 Tubular Mortice Latch for Door Knobs
Made In Britain Suitable for FD30 Fire Doors

Premium Quality British Made Two-Way Action Tubular Mortice Latch for Door Knob Furniture

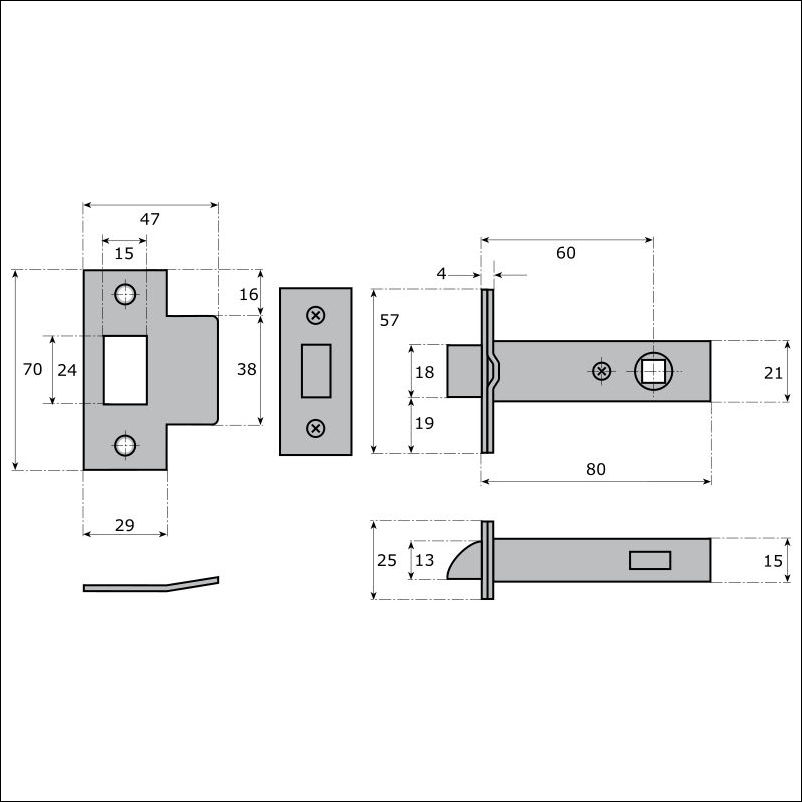

Dimensions: Case Depth 80mm, Backset 60mm

Priced per SINGLE c/w Strikeplate & Fixing Screws
Core Stock Product

Imperial Product Ref: G4060 80mm

Use the drop down menu above to select from the following premium quality finishes:
(Click on a finish image for more details)
Satin Brass Unlacquered Polished Brass Unlacquered Antique Brass Unlacquered Imperial Bronze Unlacquered
Satin Stainless Steel Polished Stainless Steel Dull Black

Our premium quality two-way action mortice latches are specifically designed for use with door knob furniture. Knobs are positioned away from the door edge to avoid rapping knuckles against the frame and the light sprung, two-way action allows knobs to be turned easily in either direction. This version will position the centre of the door knob 60mm from the door edge. The solid brass latchbolt is non-handed and will suit left or right hand hung doors without modification. CE/UKCE certified and fully compliant for use on FD30/FD60 fire rated timber door sets when used with appropriate intumescent material. Manufactured in Britain by Guardian Lock & Engineering

These latches are supplied "Light Sprung" as standard. For extra heavy, solid door knobs we recommend selecting the "Heavier Sprung" option when ordering.

Recommended for door thicknesses from 44mm to 60mm.

Available in a range of specialist finishes to compliment both traditional and contemporary styles. Choose from Satin Brass Unlacquered, Polished Brass Unlacquered, Antique Brass Unlacquered, Imperial Bronze Unlacquered, Satin Stainless Steel, Polished Stainless Steel and Dull Black.

Supplied complete with frame striking plate and fixings for wood.

Suitable for use on double doors with rebated meeting stiles when used with the appropriate [REBATE CONVERSION SET]

This tubular mortice latch is suitable for FD30/FD60 rated doors in high-use settings. For full compliance on fire doors, this latch MUST be fitted with appropriate intumescent material on both door and frame.

Detailed advice on the selection of mortice locks & latches can be found [HERE]

To keep this tubular mortice latch in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Wipe clean with an oil impregnated cloth
