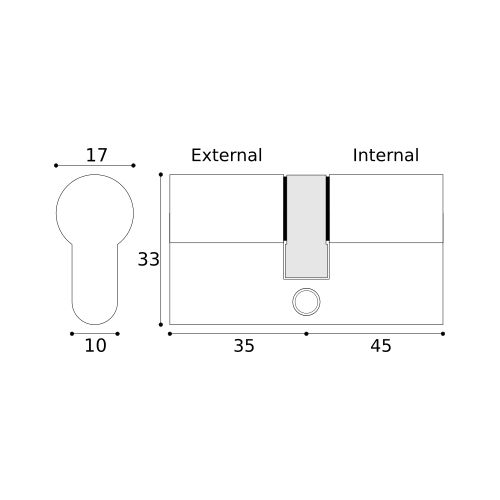

An 80mm (35mm/45mm Off-Set) Euro Profile Double Cylinder Lock Barrel suitable for internal and external applications where key locking/unlocking is required to both sides of the door. Part of our Adapta Prime patented keyway cylinder range and ideal for applications in residential, commercial and industrial settings where a high degree of security against unauthorised key duplication is required - additional cut keys are only available against authorised signatures. With anti-drill, anti-pick, anti-bump, anti-snap, anti-twist, and anti-plug pull features built in, this cylinder is certified to the highest grades of BS EN1303:2005 for durability and cylinder security and has a 1 star rating to TS 007:2014 + A1:2015 for attack resistance - for full TS 007 3 Star rating use with the Euro Profile Cylinder Guard detailed in "Related Items" below. This version is supplied "Keyed to Differ" - please refer to the information under the "Keying" tab above.
Use only with lock cases and multipoint locks described as "euro profile", "DIN euro" or "dual profile".
The minimum cylinder length required should be calculated by measuring from the lock centre line to the door face and adding the thickness of escutcheons or handle backplates. Cylinders should ideally be flush with, or protrude no more than 3mm/5mm from, the face of escutcheons or furniture backplates. Where locks are fitted off centre the minimum cylinder length should be calculated for each side individually by measuring from out from the lock centre line. Again, don't forget to add the thickness of escutcheons or backplates.
Detailed advice on the selection of euro profile lock cylinder barrels can be found in our [Euro Profile Lock Cylinders Specification Guide]
For best results and long life, this lock cylinder barrel should be lubricated with a specialist lock spray or good quality graphite powder. Do NOT use oils or WD40.
This cylinder is supplied "Keyed to Differ" whereby each cylinder is operated by it's own individual keys (2 supplied). Additional keys per cylinder can be ordered via the drop down list.
Successfully type tested for conformity to all of the requirements of BS EN 1303:2005 including the additional requirements for fire/smoke door use - certificates are available on request. In addition, this product has been successfully type tested for conformity to the requirements of TS 007:2014 + A1:2015 and has achieved a 1 Star rating.
Fire rating is only applicable to this product when fitted to timber based door assemblies of proven fire resistance as defined in BS EN1634-1 or BS476 Part 22:1987 and when used with suitably rated locks.
One euro profile double cylinder lock barrel as described complete with 2 keys and retaining screw.
This euro profile cylinder lock barrel is normally available from stock for immediate despatch. Orders for cylinders with additional keys take a little longer so you should allow an extra few days.
