#03 3" (80mm) Tubular Mortice Latch for Door Knobs

(Code: X2405-203-137)
Select Finish :
SPRING STRENGTH :
£ 9.22
(9 Item(s) In Stock)
Add to cart

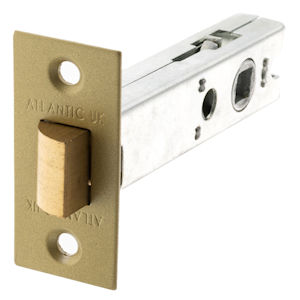

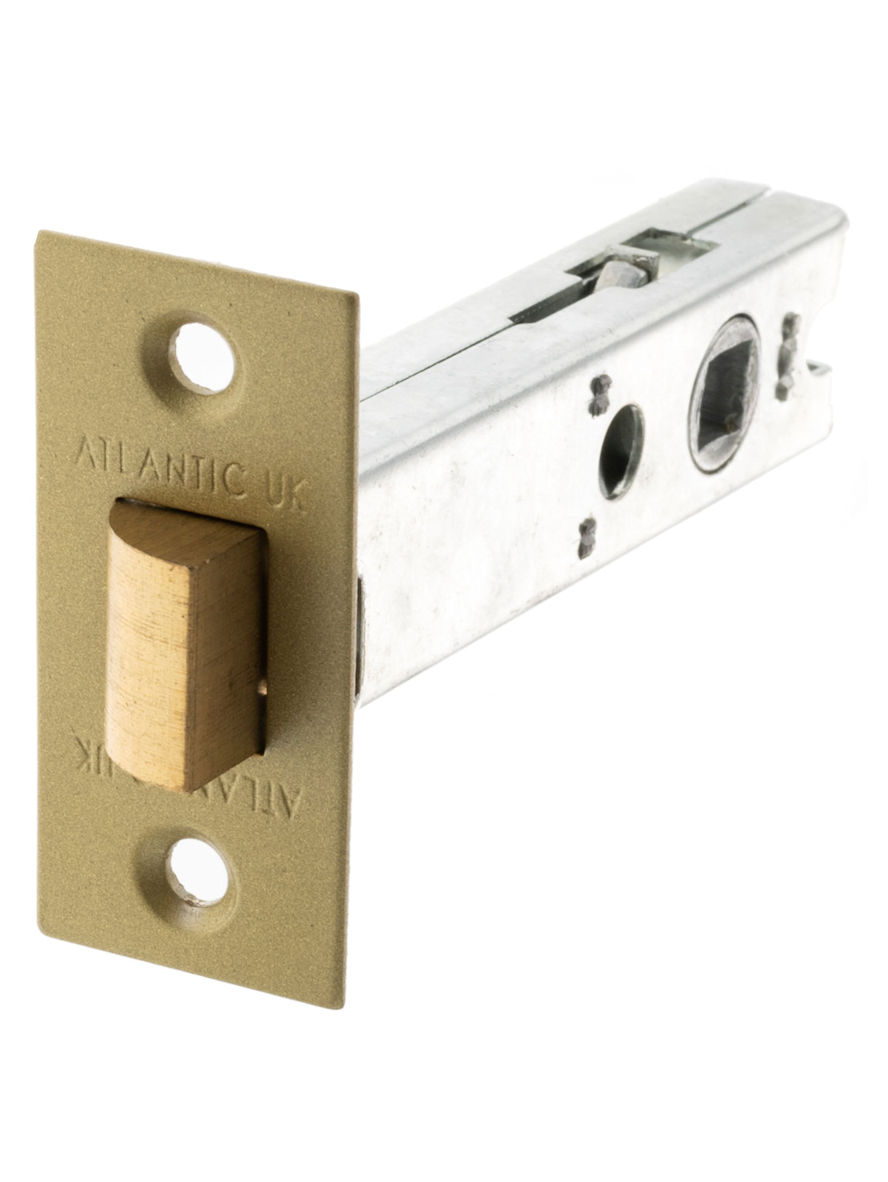

#03 3" (80mm) Tubular Mortice Latch for Door Knobs
  • #03 3" (80mm) Tubular Mortice Latch for Door Knobs
  • #03 3" (80mm) Tubular Mortice Latch for Door Knobs

Two-Way Action Tubular Mortice Latch for Door Knob Furniture

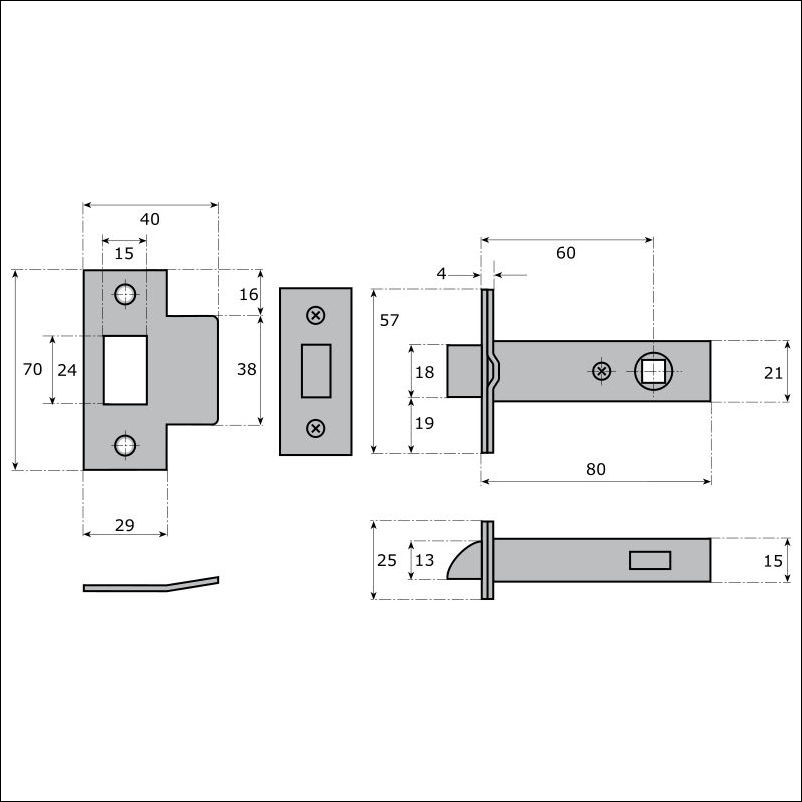

Dimensions: Case Depth 80mm, Backset 60mm

Priced per SINGLE c/w Strikeplate & Fixing Screws
Core Stock Product

Use the drop down menu above to select from the following finishes:
Polished Brass Plated Satin Brass Plated Antique Brass Plated Dark Matt Bronze Plated
Polished Chrome Plated Satin Chrome Plated Dull Black

Our two-way action mortice latches are specifically designed for use with door knob furniture. Knobs are positioned away from the door edge to avoid rapping knuckles against the frame and the light sprung, two-way action allows knobs to be turned easily in either direction. This version will position the centre of the door knob 60mm from the door edge. The solid brass latchbolt is non-handed and will suit left or right hand hung doors without modification.

These latches are supplied "Light Sprung" as standard. For extra heavy, solid door knobs we recommend selecting the "Heavier Sprung" option when ordering.

Recommended for door thicknesses from 35mm to 45mm.

Available from stock in a range of quality plated finishes - Polished Brass, Satin Brass, Antique Brass, Dark Bronze, Polished Chrome, Satin Chrome and Dull Black.

Supplied complete with frame striking plate and fixings for wood.

Detailed advice on the selection of mortice locks & latches can be found [HERE]

To keep this tubular mortice latch in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Wipe clean with an oil impregnated cloth
