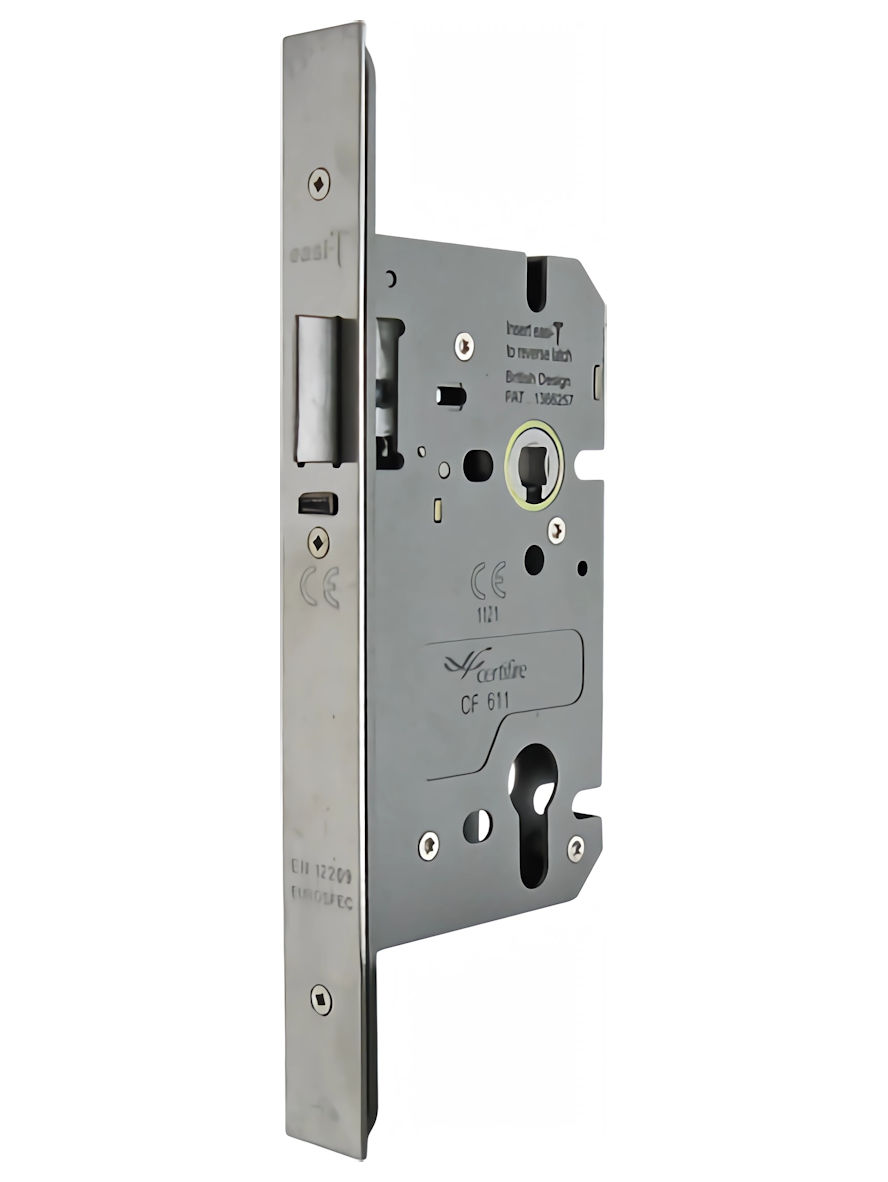

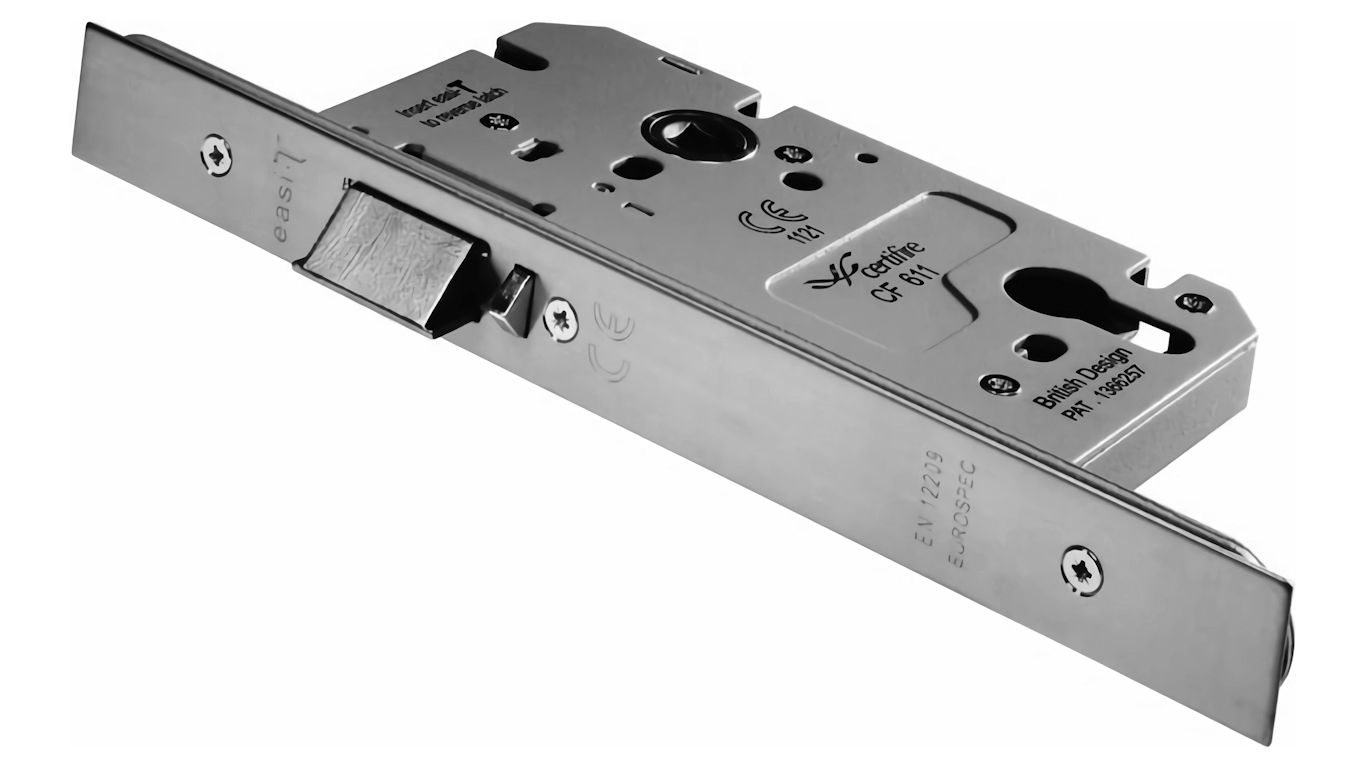

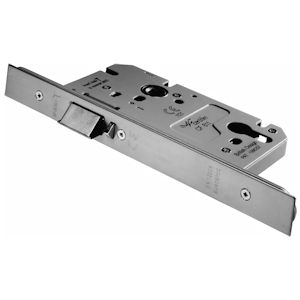

This quality Euro DIN Style Cylinder Mortice Nightlatch Case (slam lock) can be fitted as an alternative to more common surface mounted "Yale" type locks to provide automatic locking on entrance doors, or in conjunction with a mortice panic latch actuator on emergency exit doors. The sprung latchbolt can be operated in the following ways:
- External Key/Internal Handle - using a single cylinder (barrel) and half set lever handle (or panic device).
- External Key/Internal Thumbturn - using a cylinder with integral thumbturn.
- External Key/Internal Key - using a double cylinder.
The lock features an anti-thrust bolt to prevent manipulation of the latch bolt by credit card etc. The latchbolt is easily reversible on site to suit left or right hand hung doors. A good choice for both residential properties and medium use commercial applications.
CE/UKCE certified and fully compliant for use on FD30/FD60 fire rated timber door sets when used with this [INTUMESCENT LINER PACK]
Part of our 'Euro Base' range of mortice locks and latches.
Supplied complete with frame striking plate and fixings for wood.
Important: This lock requires the addition of a Euro Profile Lock Cylinder to function correctly. Suitable products can be found in the [LOCK CYLINDERS] store section.
This lock is supplied heavy sprung for use with 'unsprung' or 'self-sprung' lever handle furniture.
This mortice nightlatch is suitable for FD30/FD60 rated doors in light to medium use settings. For full compliance on fire doors, this lock MUST be fitted with appropriate intumescent material on both door and frame.
Detailed advice on the selection of mortice locks & latches can be found [HERE]
To keep this mortice lock in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Wipe clean with an oil impregnated cloth.
