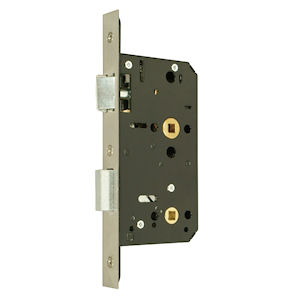

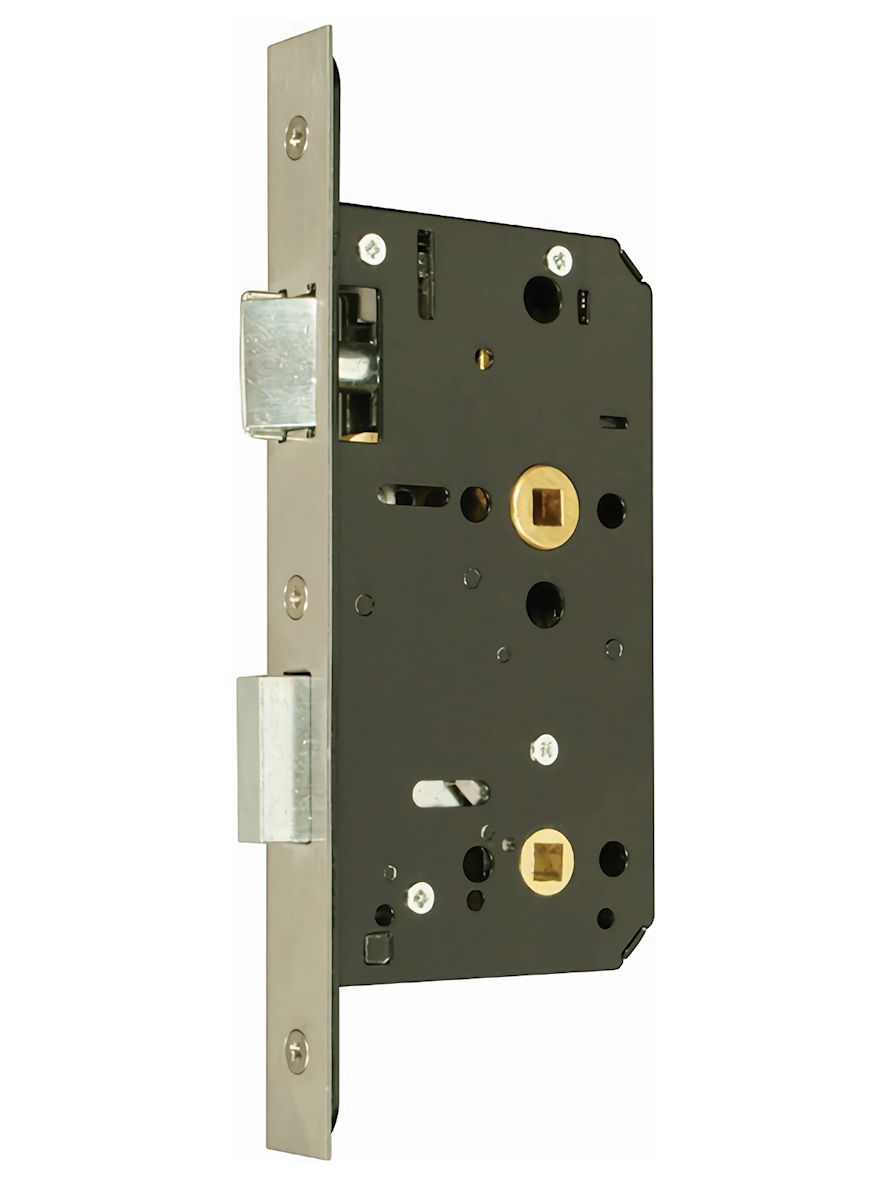

#09 90mm Imperial B5225 "Lift To Lock" DDA Accessible Bathroom/Toilet Privacy Lock

(Code: 2519-783-650)
Select Finish :
£ 113.02
Available at Supplier
Available in 21 days
Add to cart
#09 90mm Imperial B5225 "Lift To Lock" DDA Accessible Bathroom/Toilet Privacy Lock
  • #09 90mm Imperial B5225 "Lift To Lock" DDA Accessible Bathroom/Toilet Privacy Lock
  • #09 90mm Imperial B5225 "Lift To Lock" DDA Accessible Bathroom/Toilet Privacy Lock
Made In Britain Suitable for FD30 Fire Doors

Premium Quality British Made Heavy Duty DDA Accessible Bathroom/Toilet Privacy Lock with "Lift To Lock" Lever Handle Function

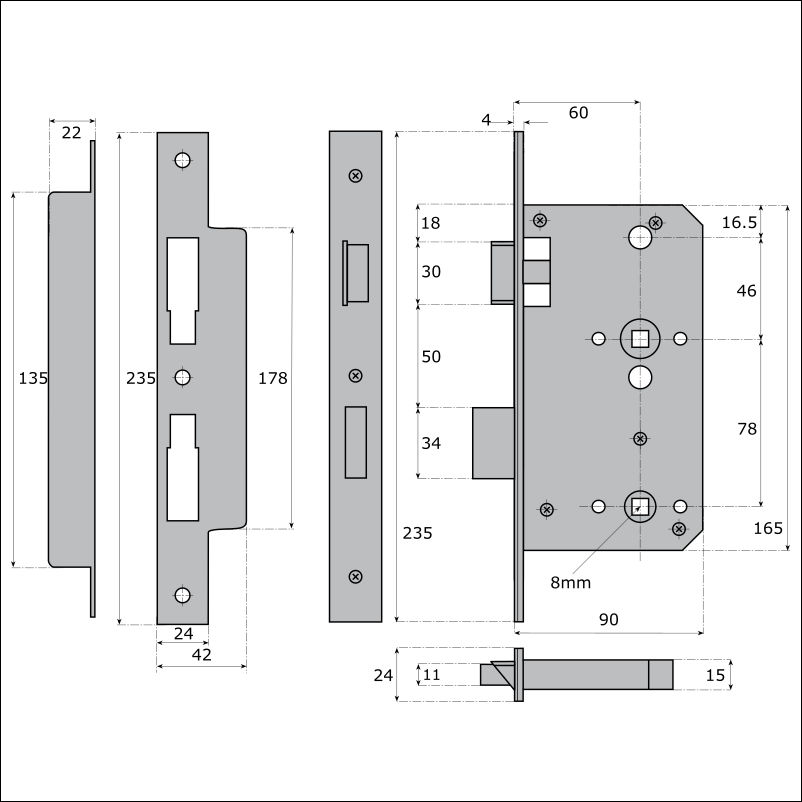

Dimensions: Case Depth 90mm, Backset 60mm, Centres 78mm
Priced per SINGLE c/w Strikeplate & Fixing Screws
Core Stock Product

Imperial Product Ref: B5225-60

Use the drop down menu above to select from the following premium quality finishes:
(Click on a finish image for more details)
Satin Brass Unlacquered Polished Brass Unlacquered Antique Brass Unlacquered Imperial Bronze Unlacquered
Satin Stainless Steel Polished Stainless Steel Dull Black

This premium quality, heavy duty mortice privacy lock provides simple keyless locking where accessible bathroom or toilet doors need to conform to the requirements of the Disability Discrimination Act. When fitted with appropriate handle sets, the lock will function as follows:

Latchbolt operated by external lever handle;
Deadbolt thrown by upward movement of internal lever handle;
Deadbolt and latchbolt withdrawn by downward movement of internal lever handle.

IMPORTANT: This lock is designed to be used with specialist "Lift to Lock" lever handle furniture sets. Please contact us if you require additional information.

CE/UKCE certified and fully compliant for use on FD30/FD60 fire rated timber door sets when used with appropriate intumescent material. Manufactured in Britain by Guardian Lock & Engineering.

Recommended for door thicknesses from 44mm to 60mm.

Available in a range of specialist finishes to compliment both traditional and contemporary styles. Choose from Satin Brass Unlacquered, Polished Brass Unlacquered, Antique Brass Unlacquered, Imperial Bronze Unlacquered, Satin Stainless Steel, Polished Stainless Steel and Dull Black.

Supplied complete with frame striking plate and fixings for wood.

Suitable for use on double doors with rebated meeting stiles when used with the appropriate [REBATE CONVERSION SET]

This mortice privacy lock is suitable for FD30/FD60 rated doors in high-use settings. For full compliance on fire doors, this product MUST be fitted with appropriate intumescent material on both door and frame.

This lock is NOT recommended for use with door knobs or ring handle furniture.

Detailed advice on the selection of mortice locks & latches can be found [HERE]

To keep this mortice privacy lock in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Wipe clean with an oil impregnated cloth.
