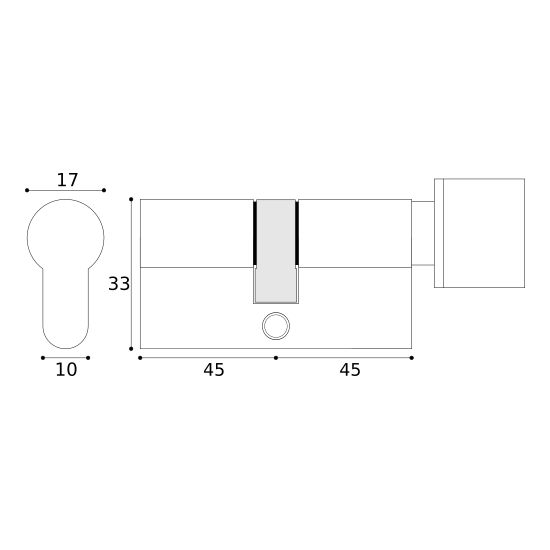

90mm (45mm/45mm) Euro Profile Key & Thumbturn Cylinder Lock Barrel Keyed Alike in Passing Groups
- Priced per Single complete with 2 keys - additional keys available
- Key operation externally, thumbturn operation internally
- Extra high security 6 pin mechanism
- Restricted key profile & patent protected keyway
- Keyed alike in passing groups
- Anti-snap, anti-drill, anti-pick, anti-bump & anti-plug pull
- Core Stock Product
- Pack Contents
- Special Order
A 90mm (45mm/45mm) Euro Profile Key and Thumbturn Cylinder Lock Barrel suitable for applications where key locking/unlocking is required externally with thumbturn operation internally. Part of our Adapta Prime patented keyway cylinder range and ideal for applications in residential, commercial and industrial settings where a high degree of security against unauthorised key duplication is required - additional cut keys are only available against authorised signatures. With anti-drill, anti-pick, anti-bump, anti-snap, anti-twist, and anti-plug pull features built in, this cylinder is certified to the highest grades of BS EN1303:2005 for durability and cylinder security and has a 1 star rating to TS 007:2014 + A1:2015 for attack resistance - for full TS 007 3 Star rating use with the Euro Profile Cylinder Guard detailed in "Related Items" below. This version is supplied "Keyed Alike" - please refer to the information under the "Keying" tab above.
Use only with lock cases and multipoint locks described as "euro profile", "DIN euro" or "dual profile".
The minimum cylinder length required should be calculated by measuring from the lock centre line to the door face and adding the thickness of escutcheons or handle backplates. Cylinders should ideally be flush with, or protrude no more than 3mm/5mm from, the face of escutcheons or furniture backplates. Where locks are fitted off centre the minimum cylinder length should be calculated for each side individually by measuring from out from the lock centre line. Again, don't forget to add the thickness of escutcheons or backplates.
Detailed advice on the selection of euro profile lock cylinder barrels can be found in our [Euro Profile Lock Cylinders Specification Guide]
For best results and long life, this lock cylinder barrel should be lubricated with a specialist lock spray or good quality graphite powder. Do NOT use oils or WD40.
These cylinder lock barrels are supplied "keyed alike" in passing groups all operated by the same key. This option is a popular choice as it reduces the amount of different keys needed for multiple doors. This feature is available for all of our Adapta Prime cylinders so your group can contain any combination of the cylinder types, sizes and finishes within the range.
Cylinder lock barrels ordered keyed alike will be supplied in one passing group. If you require multiple groups please contact us prior to placing your order.
*Our Adapta Prime keyed alike cylinders are supplied with 2 keys each - if you order 4 cylinders, for example, you will receive a quantity of 8 keys.
Successfully type tested for conformity to all of the requirements of BS EN 1303:2005 including the additional requirements for fire/smoke door use - certificates are available on request. In addition, this product has been successfully type tested for conformity to the requirements of TS 007:2014 + A1:2015 and has achieved a 1 Star rating.
Fire rating is only applicable to this product when fitted to timber based door assemblies of proven fire resistance as defined in BS EN1634-1 or BS476 Part 22:1987 and when used with suitably rated locks.
One euro profile key & thumbturn cylinder lock barrel as described complete with 2 keys and retaining screw.
This euro profile cylinder lock barrel is manufactured in keyed alike format to special order only. You should therefore allow 7 - 10 working days for delivery.
