#05 Kirkpatrick 810 26" (660mm) Black Iron Cranked Hook & Band Strap Hinge

(Code: 1105-126-215)
£ 107.96
Available at Supplier
Available in 10 days
Add to cart
#05 Kirkpatrick 810 26" (660mm) Black Iron Cranked Hook & Band Strap Hinge
  • #05 Kirkpatrick 810 26" (660mm) Black Iron Cranked Hook & Band Strap Hinge
  • #05 Kirkpatrick 810 26" (660mm) Black Iron Cranked Hook & Band Strap Hinge
  • #05 Kirkpatrick 810 26" (660mm) Black Iron Cranked Hook & Band Strap Hinge
Made In Britain

Cast Malleable Iron Cranked Pattern Hook & Band Strap Hinge for Heavier Doors up to 52" (1316mm) Wide

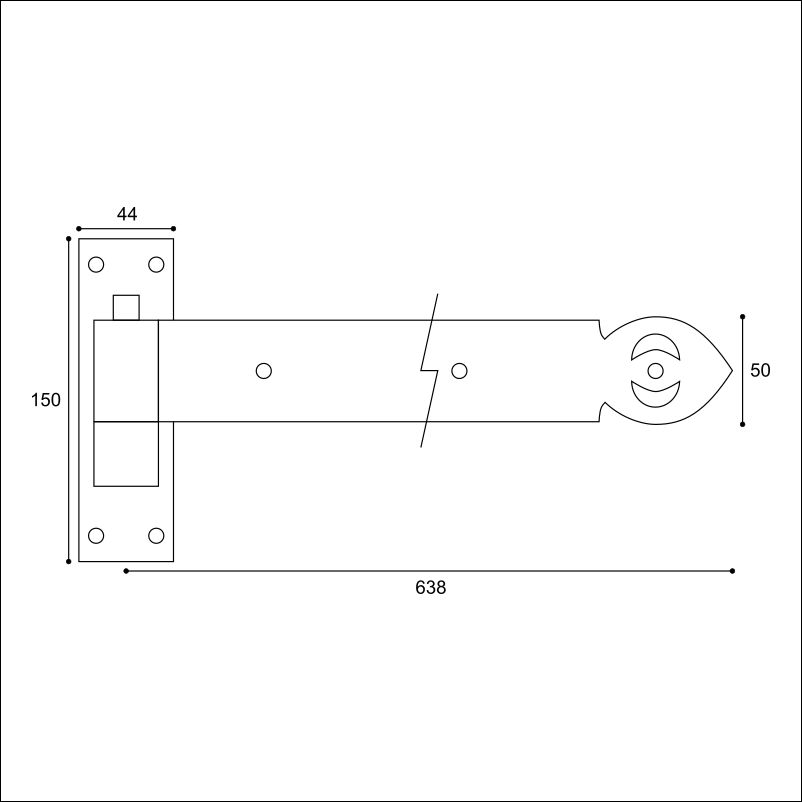

Dimensions: Strap 638mm, Plate 150mm x 44mm

Priced per *SINGLE* hinge complete with fixing screws
Back Order Item - Lead Times Apply

Kirkpatrick Product Ref: 810 26"

(Click on the finish image for more details)
Antique Black Iron

Hook & Band Strap Hinges are a traditional method of hanging heavier ledged and braced doors. This CRANKED pattern cast malleable iron version is suitable for doors up to 52" (1316mm) wide and is a good choice for wider entrance doors and gates. Forming part of our "Black Ironmongery" collection this authentic hook & band hinge is manufactured in Britain by Kirkpatrick Ltd using time honoured techniques that have remained unchanged since the mid 1800s and should not be confused with the poor quality imported copies from other suppliers.

Finished in hard wearing Antique Black Iron, this Hook & Band Hinge is suitable for internal and external applications.

**NOTE: These hinges are sold and priced per single hinge**

Supplied complete with round-head slotted wood screws in matching finish.

This 'CRANKED' pattern Hook & Band hinge is designed for applications where the door face is flush with the frame. As a rule of thumb, light to medium weight doors (soft wood, pine) will require hinges approx one third to half the door width. For heavier doors (eg solid oak) select a hinge one half to two thirds the door width. For doors over 84" (2100mm) high we recommend a third hinge fitted centrally.

To keep these hinges in optimum working condition we recommend a once yearly application of light machine oil (3 in 1) to the hinge knuckles. Check hinges occassionaly for dirt and grease and wipe clean with an oil impregnated cloth.

These hinges are a non stock product and will normally need to ordered in from the manufacturer. You should therefore allow approximately 7 - 10 working days for despatch.
