#05 CEAM 1131 160mm 3D Concealed Hinge 80-120Kg

(Code: 1803-131-C73)
Select Finish :
£ 66.73
(2 Item(s) In Stock)
Add to cart
#05 CEAM 1131 160mm 3D Concealed Hinge 80-120Kg
  • #05 CEAM 1131 160mm 3D Concealed Hinge 80-120Kg
  • #05 CEAM 1131 160mm 3D Concealed Hinge 80-120Kg
  • #05 CEAM 1131 160mm 3D Concealed Hinge 80-120Kg

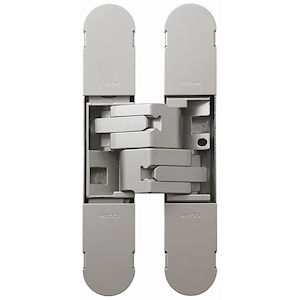

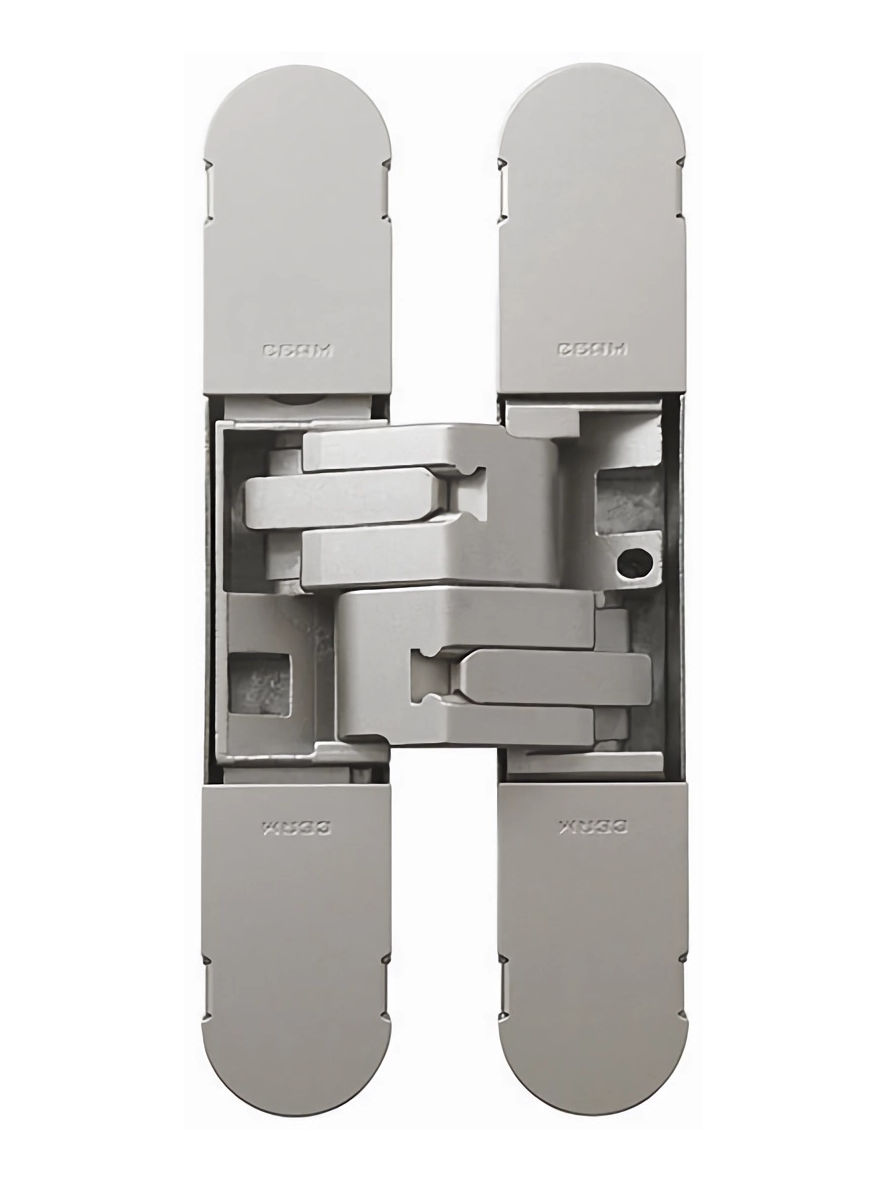

CEAM 1131 Fully Adjustable Concealed Hinge for Doors Weights up to 120Kg

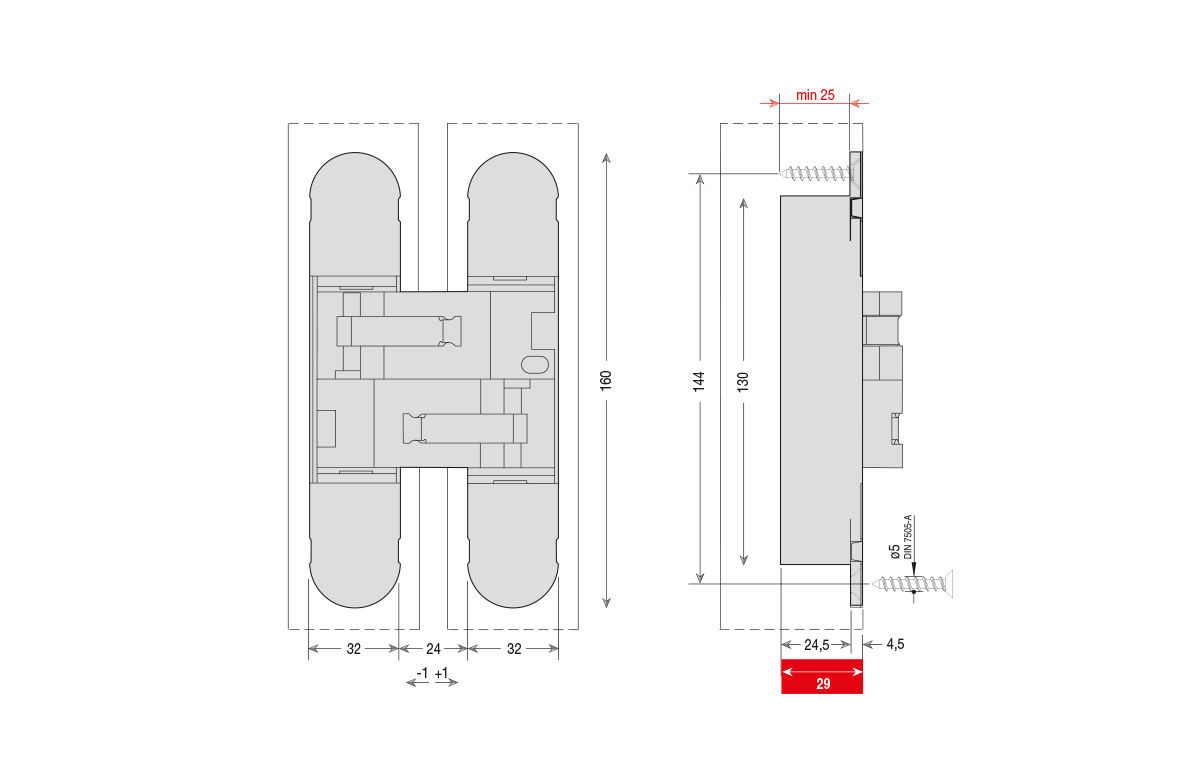

Dimensions: 160mm x 32mm x 32mm
Minimum Door Thickness: 38mm

CEAM Product Ref: CI001131

Priced per *SINGLE* hinge
Core Stock Product

Use the drop down menu above to select from the following high quality finishes:
Satin Nickel Look Polished Nickel Plated Satin Brass Plated Polished Brass Plated Antique Brass Plated Matt Bronze Plated Matt Black

Concealed hinges allow doors to be integrated into straight-lined and flush fitting architectural structures making them an ideal solution for high quality joinery in contemporary settings. These high quality Italian made concealed hinges offer full 3 dimensional adjustment and are suitable for unrebated flush doors up to 80kg (with 2 hinges fitted) or 120kg (with 3 hinges fitted) in residential or medium duty commercial environments.

Choose from a range of high quality architectural finishes including Polished Nickel, Satin Brass, Antique Brass, Dark Bronze and Matt Black.

**NOTE: These hinges are sold and priced per single hinge**

These hinges are suitable for doors with a maximum adjusted weight of 80kg with 2 hinges fitted or 120kg with three hinges fitted based on a 2100mm x 8500mm door leaf. A third or fourth hinge is recommended for external doors and doors fitted with overhead door closers.

Detailed advice on the selection and specification of hinges for full height doors can be found [HERE]

For best results on timber doors, these hinges should be fitted using the appropriate Routing Template and Universal Milling Frame detailed in the 'Related Items' below.

These concealed hinges are virtually maintenance free and require little attention. However, it is advisable to lubricate the hinges every two years with a dry PTFE spray especially in higher use applications. The action of doors should be checked occassionaly and hinges adjusted if neccessary. Hinges can be wiped clean of dirt and grime with an oil impregnated cloth.
