#13 - 110mm Euro Profile Cylinder Escape Sashlock

(Code: 2539-604-628)
Finish :
HANDING:
£ 116.86
(-10.00%) £ 105.17
Available at Supplier
Available in 14 days
Add to cart
#13 - 110mm Euro Profile Cylinder Escape Sashlock
  • #13 - 110mm Euro Profile Cylinder Escape Sashlock
  • #13 - 110mm Euro Profile Cylinder Escape Sashlock
  • #13 - 110mm Euro Profile Cylinder Escape Sashlock

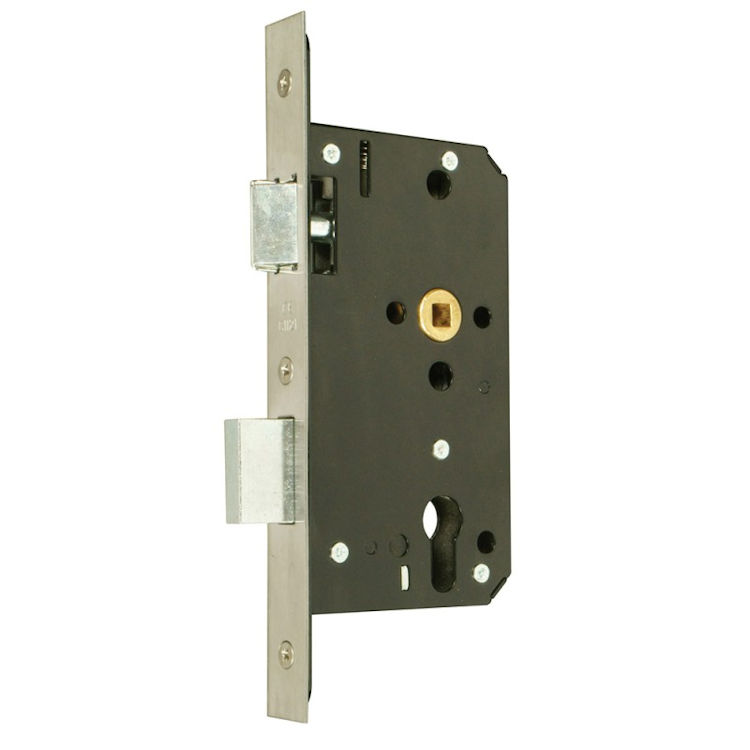

Premium British Made Heavy Duty Euro DIN Style Cylinder Mortice Escape Sashlock Case for Self-Sprung or Un-Sprung Lever Door Handles


- Priced per Single complete with frame keep & fixings
- Latchbolt withdrawn from either side by lever handle
- Deadbolt operated by euro profile cylinder lock barrel
- Deadbolt withdrawn by internal lever handle for quick escape

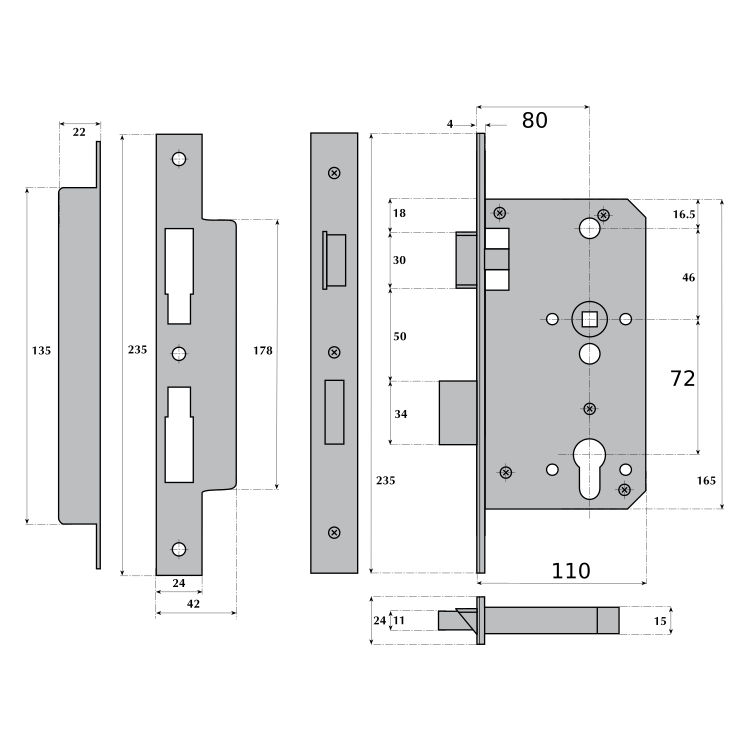

- 110mm case depth, 80mm backset, 72mm centres
- Back Order Item

Satin Brass Unlacquered Polished Brass Unlacquered Dark Bronze (BMA)
Satin Stainless Steel Polished Stainless Steel Dull Black

Made in Britain 10 Year Guarantee CE Marked BS EN 12209: 2003 BS EN179 Fire Rated FD30/FD60
Residential Use Commercial Use Industrial Use

Forming part of our Euro+ Modular range this British made Mortice Escape Sashlock case can be used with any of our Euro Profile Cylinder Lock Barrels to provide a range of locking functions and is an ideal choice for both high quality, prestigious residential properties and heavy use commercial applications. The split-follower Anti-Panic function allows single action easy exit in the event of an emergency and is an ideal solution for apartment entrance doors. Particularly suitable for heavy, un-sprung lever handle furniture due to the strong follower springing. Fully reversible to suit left or right hand hung doors and approved for use on fire rated timber door sets in accordance with current regulations.

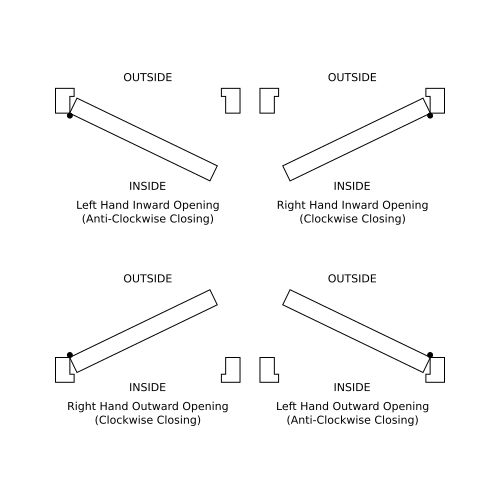

This lock is supplied handed according to both the hinge handing and the direction of escape. Care should be taken to select the correct handing when ordering - please refer to the relevant image above.

Lever handle furniture for this lock must be fitted with a suitable spindle to accomodate the split-follower function - please see the appropriate product in the Related Items section below.

To avoid fixing screws fouling the lock body use handles with horizontally opposed bolt-through fixings or with backplates where fixings positions are adequately spaced. NOT recommended for use with door knobs.

Detailed advice on the selection of mortice locks and latches can be found in our [Mortice Locks & Latches Specification Guide].

Conversion sets to allow fitting of this lock to double doors with rebated meeting stiles are available to special order - please contact us for details and prices.

For best results and long life, this lock should be lubricated with a light machine oil at least once a year.

This product has been successfully type tested for conformity to all of the requirements of BS EN 12209 : 2003 including the additional requirements for fire/smoke door use. In addition, this product has been successfully type tested for conformity to all of the requirements of BS EN 179 : 2008 - certificates are available on request.

Fire rating is only applicable to this product when fitted to timber based door assemblies of proven fire resistance as defined in BS EN1634-1 or BS476 Part 22:1987 and when fitted with appropriate intumescent material.

One lock complete with faceplate, frame keeper plate and all fixing screws.

Euro profile lock cylinders should be ordered separately.

This lock is a non stock item and normally needs to ordered in from the manufacturer. You should therefore allow approximately 10 - 14 days for despatch.
