#09 - 110mm Euro Profile Cylinder Nightlatch

(Code: 2536-804-628)
Finish :
SPRING STRENGTH :
£ 101.50
(2 Item(s) In Stock)
Add to cart
#09 - 110mm Euro Profile Cylinder Nightlatch
  • #09 - 110mm Euro Profile Cylinder Nightlatch
  • #09 - 110mm Euro Profile Cylinder Nightlatch

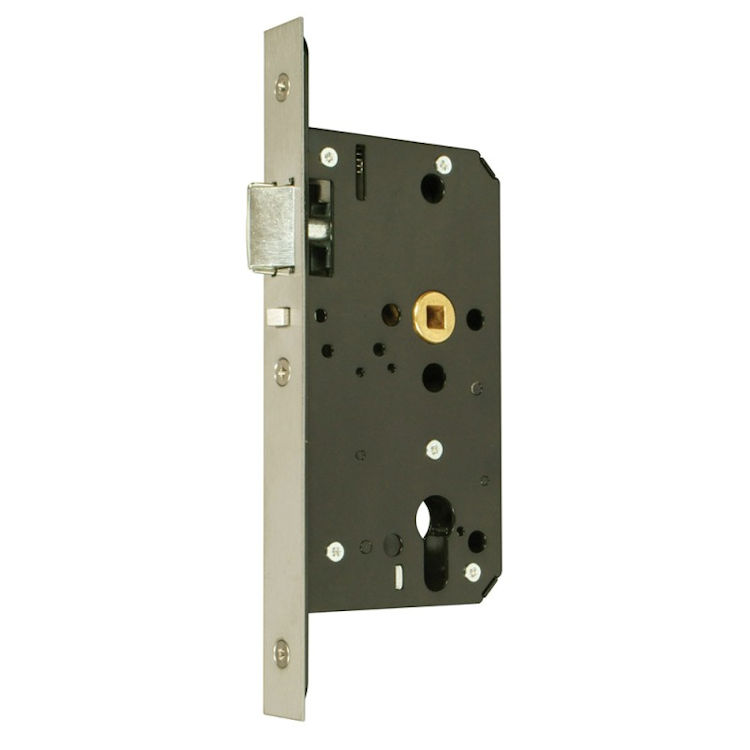

Premium British Made Heavy Duty Euro DIN Style Cylinder Mortice Nightlatch Case for Lever Handle or Panic Device Operation


- Priced per Single complete with frame keep & fixings
- Latchbolt operated externally by key & internally by turn knob, lever handle or panic latch device
- Anti-thrust bolt to prevent latchbolt manipulation
- Standard sprung or heavy sprung follower

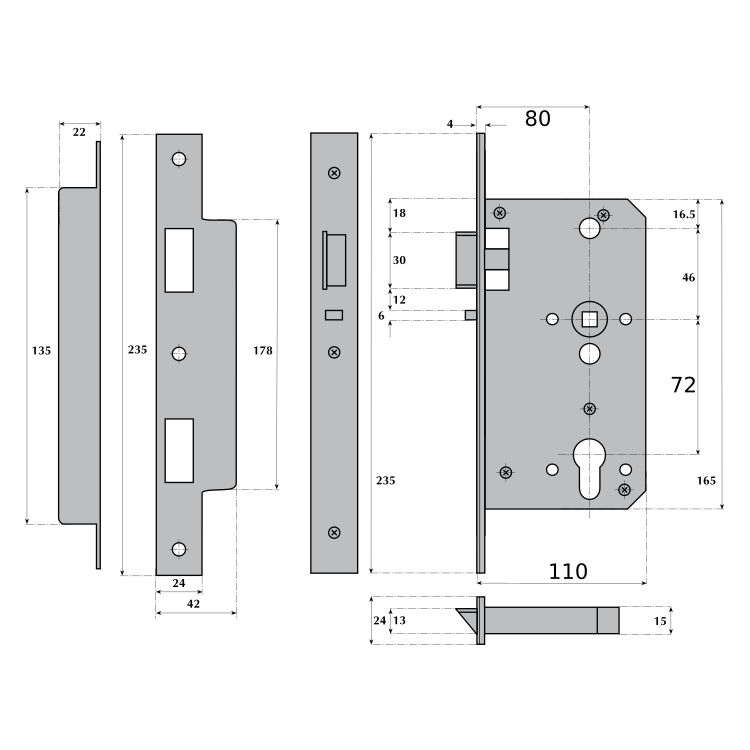

- 110mm case depth, 80mm backset, 72mm centres
- Back Order Item

Satin Brass Unlacquered Polished Brass Unlacquered Dark Bronze (BMA)
Satin Stainless Steel Polished Stainless Steel Dull Black

Made in Britain 10 Year Guarantee CE Marked BS EN 12209: 2003 Fire Rated FD30/FD60
Residential Use Commercial Use Industrial Use

Forming part of our Euro+ Modular range this British made Mortice Nightlatch case can be fitted as an alternative to more common surface mounted "Yale" type locks on entrance doors or in conjuction with a panic latch on emergency exit doors. The sprung latchbolt is withdrawn externally by key using a Single euro profile lock cylinder barrel and internally by either a separate thumbturn knob, a half set of lever door handles or a suitable panic exit device. The automatic anti-thrust bolt prevents manipulation of the latchbolt on outward opening doors. Suitable for use with electric strike plates on communal entrance doors and can be fitted to fire rated timber door sets in accordance with current regulations. An ideal choice for both high quality, prestigious residential properties and heavy use commercial applications.

Select "Standard Sprung" for use with panic exit devices, thumbturns or door knobs. Thumbturns should be of a type incoporating an 8mm square spindle or a relevant spindle conversion sleeve. Select "Heavy Sprung" for use with lever door handles.

For high security, non emergency applications a suitable deadlock should also be fitted.

Detailed advice on the selection of mortice locks and latches can be found in our [Mortice Locks & Latches Specification Guide].

Conversion sets to allow fitting of this lock to double doors with rebated meeting stiles are available to special order - please contact us for details and prices.

For best results and long life, this lock should be lubricated with a light machine oil at least once a year.

This product has been successfully type tested for conformity to all of the requirements of BS EN 12209 : 2003 including the additional requirements for fire/smoke door use.

Fire rating is only applicable to this product when fitted to timber based door assemblies of proven fire resistance as defined in BS EN1634-1 or BS476 Part 22:1987 and when fitted with appropriate intumescent material.

One nightlatch case complete with faceplate, frame keeper plate and all fixing screws.

Euro profile lock cylinders should be ordered separately.

This lock is a non stock item and normally needs to ordered in from the manufacturer. You should therefore allow approximately 10 - 14 days for despatch.
