#12 9" (230mm) Hand Forged Gothic Arrow Head T (Tee) Strap Hinge

(Code: 1005-109-316)
£ 26.06
Available at Supplier
Available in 5 days
Add to cart

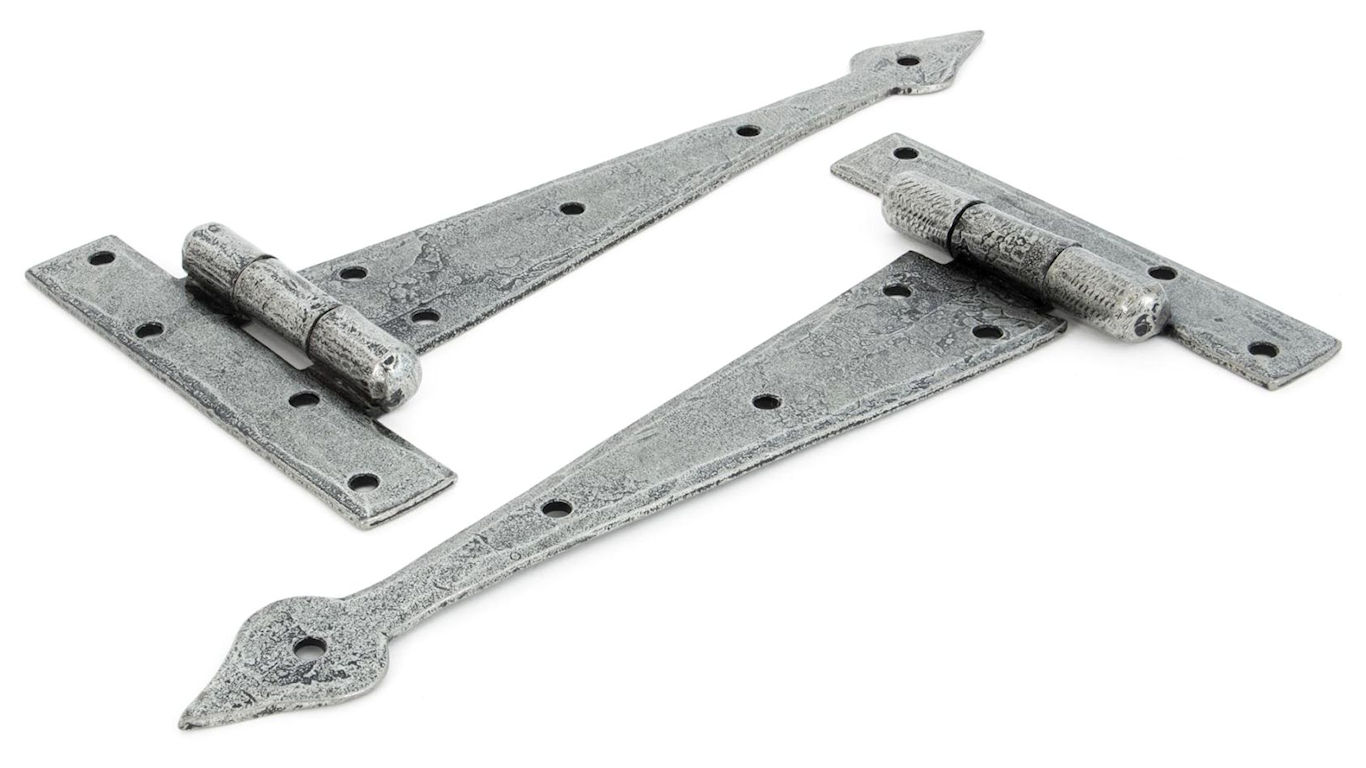

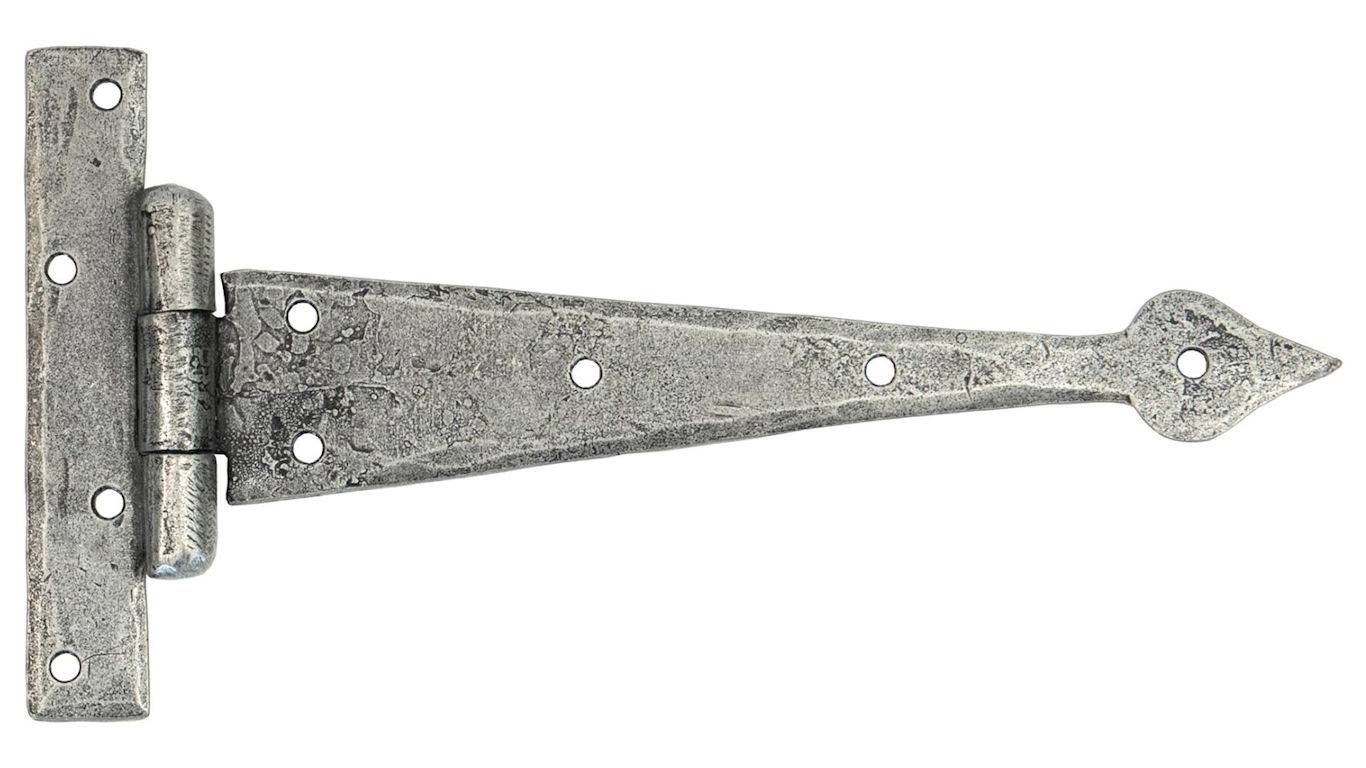

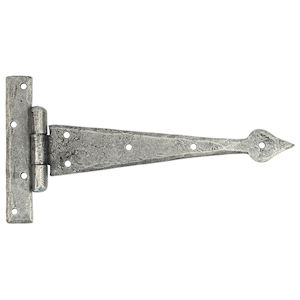

#12 9" (230mm) Hand Forged Gothic Arrow Head T (Tee) Strap Hinge
  • #12 9" (230mm) Hand Forged Gothic Arrow Head T (Tee) Strap Hinge
  • #12 9" (230mm) Hand Forged Gothic Arrow Head T (Tee) Strap Hinge
  • #12 9" (230mm) Hand Forged Gothic Arrow Head T (Tee) Strap Hinge

Rustix Collection Hand Forged Steel Gothic Arrow Head T (Tee) Strap Hinge for Light Weight Doors up to 25" (626mm) Wide

Dimensions: 230mm x 110mm

Priced per *SINGLE* hinge complete with fixing screws
Back Order Item - Lead Times Apply

(Click on the finish image for more details)
Rustix Armour Bright

A classic "Gothic Arrow Head" Tee Hinge from our hand forged Rustix Collection suitable for light to medium weight doors up to 25" (626mm) wide and an ideal choice for narrow ledged and braced larder or pantry doors etc. Forming part of our "Rustix" range this hinge is expertly hand crafted using hammer and anvil and finished in Rustix Armour Bright to highlight each hammer blow.

**NOTE: These hinges are sold and priced per single hinge**

Supplied complete with round-head slotted wood screws in matching finish.

Tee hinges are designed to be fitted to the opening face of doors with both the horizontal strap and vertical frame plate being visible when the door is in the closed position. As a rule of thumb, light to medium weight doors (soft wood, pine) will require hinges approx one third to half the door width. For heavier doors (eg solid oak) select a hinge one half to two thirds the door width. For doors over 84" (2100mm) high we recommend a third hinge fitted centrally.

Due to the hand forged nature of this product all published dimensions are approximate only.

To keep these hinges in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Rustix Armour Bright is a low maintenance finish suitable for internal applications and for external use in normal conditions. Products fitted externally should be regularly wiped over with an oily rag to aid protection against environmental elements. We DO NOT recommend this finish for coastal areas or other harsh environments.

These hinges are a non stock product and will normally need to ordered in from the manufacturer. You should therefore allow approximately 3 - 5 days for despatch.
