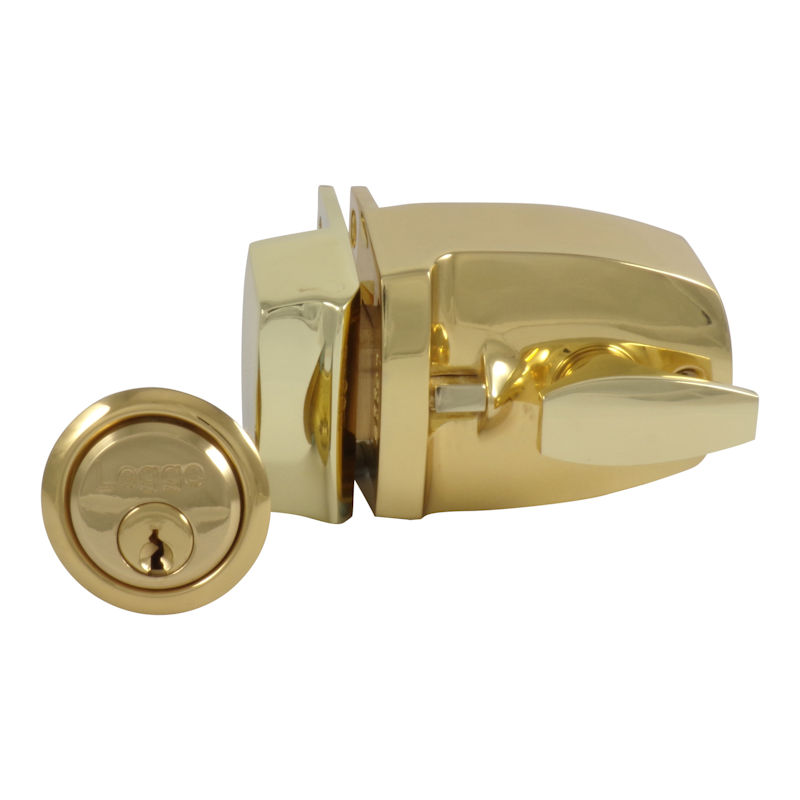

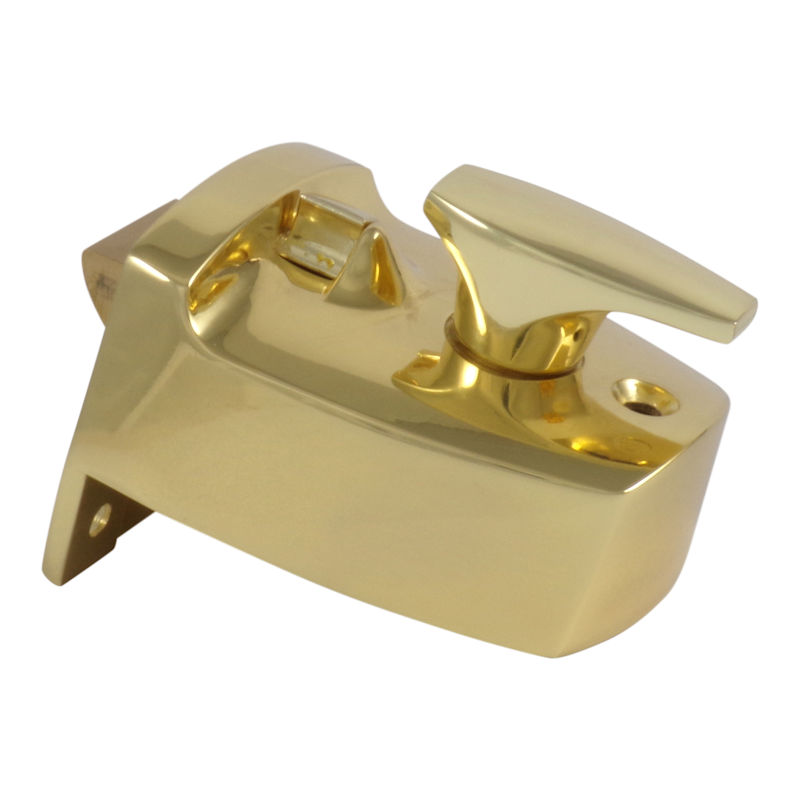

#01 - Legge 727 Cylinder Rim Nightlatch

(Code: 2312-542-181)
Finish :
£ 56.24
(-9.98%) £ 50.63
(1 Item(s) In Stock)
Add to cart
#01 - Legge 727 Cylinder Rim Nightlatch
  • #01 - Legge 727 Cylinder Rim Nightlatch
  • #01 - Legge 727 Cylinder Rim Nightlatch
  • #01 - Legge 727 Cylinder Rim Nightlatch
  • #01 - Legge 727 Cylinder Rim Nightlatch
  • #01 - Legge 727 Cylinder Rim Nightlatch

Narrow Stile Cylinder Rim Nightlatch (Slam Lock) with Optional Key Deadlocking Function


- Priced per Single complete with external cylinder, 3 keys, frame keep & fixing screws
- Latchbolt withdrawn by key externally & turn knob internally
- Bolt can be deadlocked or held back by internal snib catch
- Optional external key deadlocking function

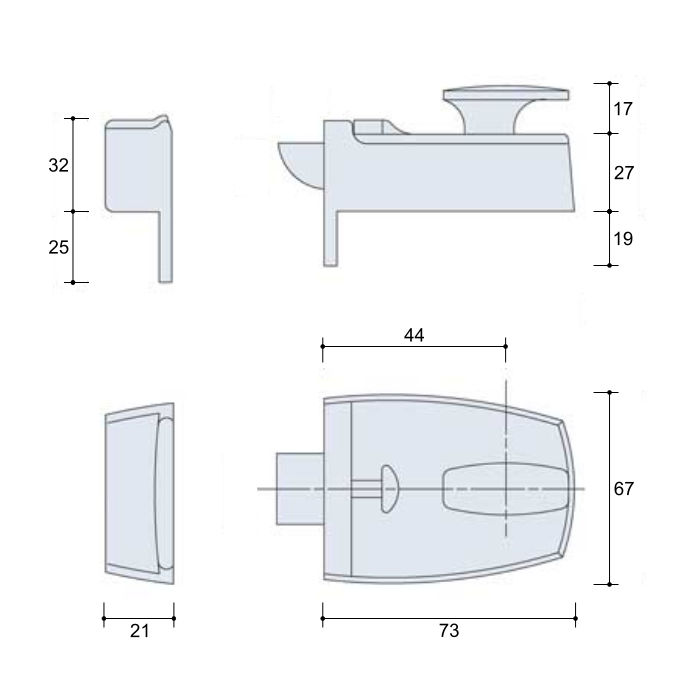

- 44mm backset for doors with narrow stiles
- Core Stock Product

Legge Product Ref: 727

Silver, Polished Brass Split Finish Polished Brass

Medium Security 5 Year Guarantee Residential Use

The Legge 727 Rim Nightlatch (Slam Lock) has been a popular choice for house front entrance doors since the mid 1960s and is ideally suited to glazed or panelled wood doors with narrower stile widths. The latchbolt can be held back in the withdrawn position or deadlocked using the internal snib rendering the lock inoperable by key or inside turn. In addition the optional "Deadlocking" function (selectable when fitting) allows the lock to be deadlocked externally by a full turn of the key. The lock is non-handed to suit left hand or right hand applications without modification.

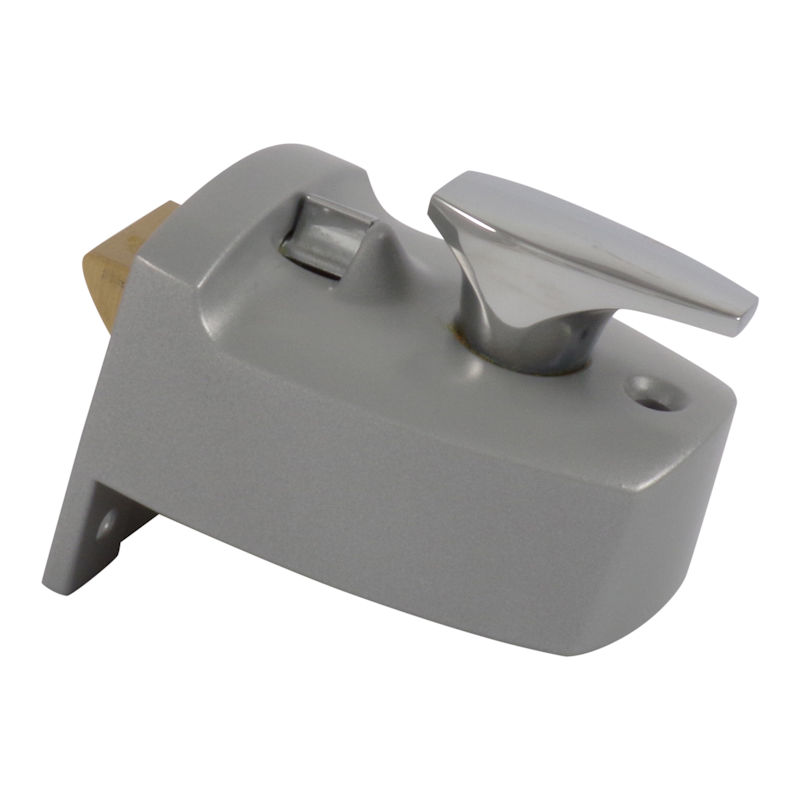

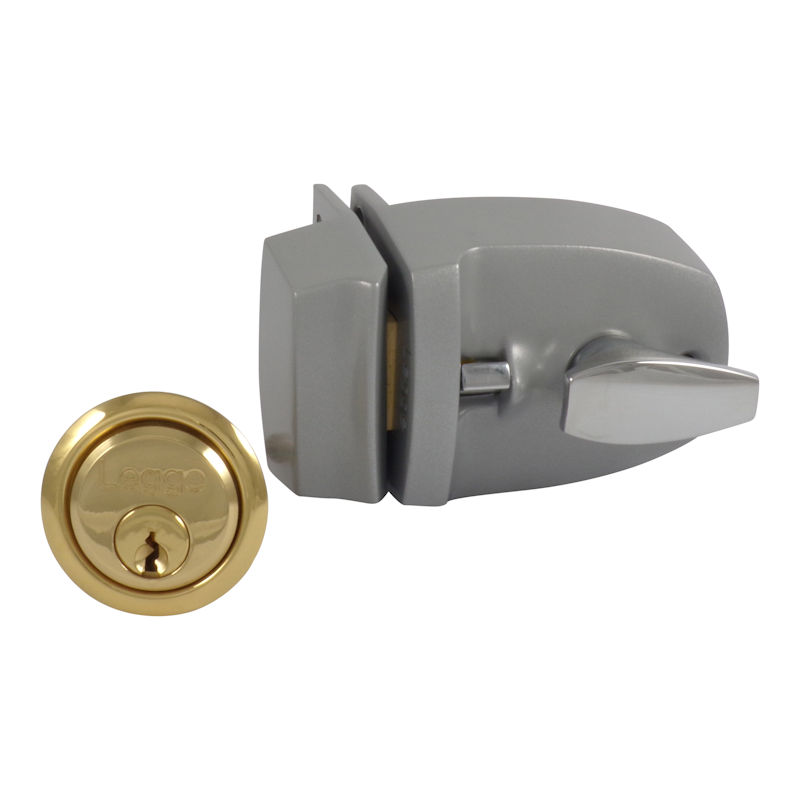

Available in Silver finished case with external brass cylinder or full Polished Brass Plated & Laquered case with external brass cylinder. Suitable external cylinders in other finishes can be purchased from the relevant store section.

All of our rim nightlatches are supplied to suit inward opening doors as standard. Outward opening doors can be accomodated by reversing the latchbolt and fitting with an appropriate, alternative striking plate - please refer to the Related Items section below.

Note that this nightlatch is supplied with the manufacturer's standard security 5 pin round rim cylinder complete with 3 keys. Alternative higher security grade cylinders, cylinders with additional keys and cylinders keyed alike can be purchased from the relevant store section.

For best results and long life, the internal moving parts of this lock should be lubricated with a light machine oil at least once a year. The external cylinder will benefit from the application a specialist lock spray or good quality graphite powder - do NOT use oils or WD40.

One nightlach complete with frame keep, external cylinder, 3 keys and all fixings.

This rim nightlatch is normally available from stock. If we are temporarily out of stock you should allow 3 - 5 working days for despatch.
