#02 Simonswerk 1840 4" (100mm) Solid Brass Rising Butt Hinge

(Code: 1546-510-725LH)
Select Finish :
Select Handing :
£ 139.56
Available at Supplier
Add to cart

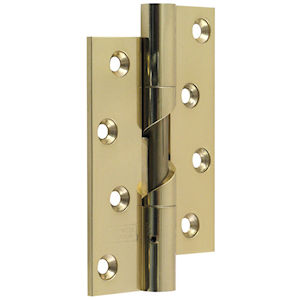

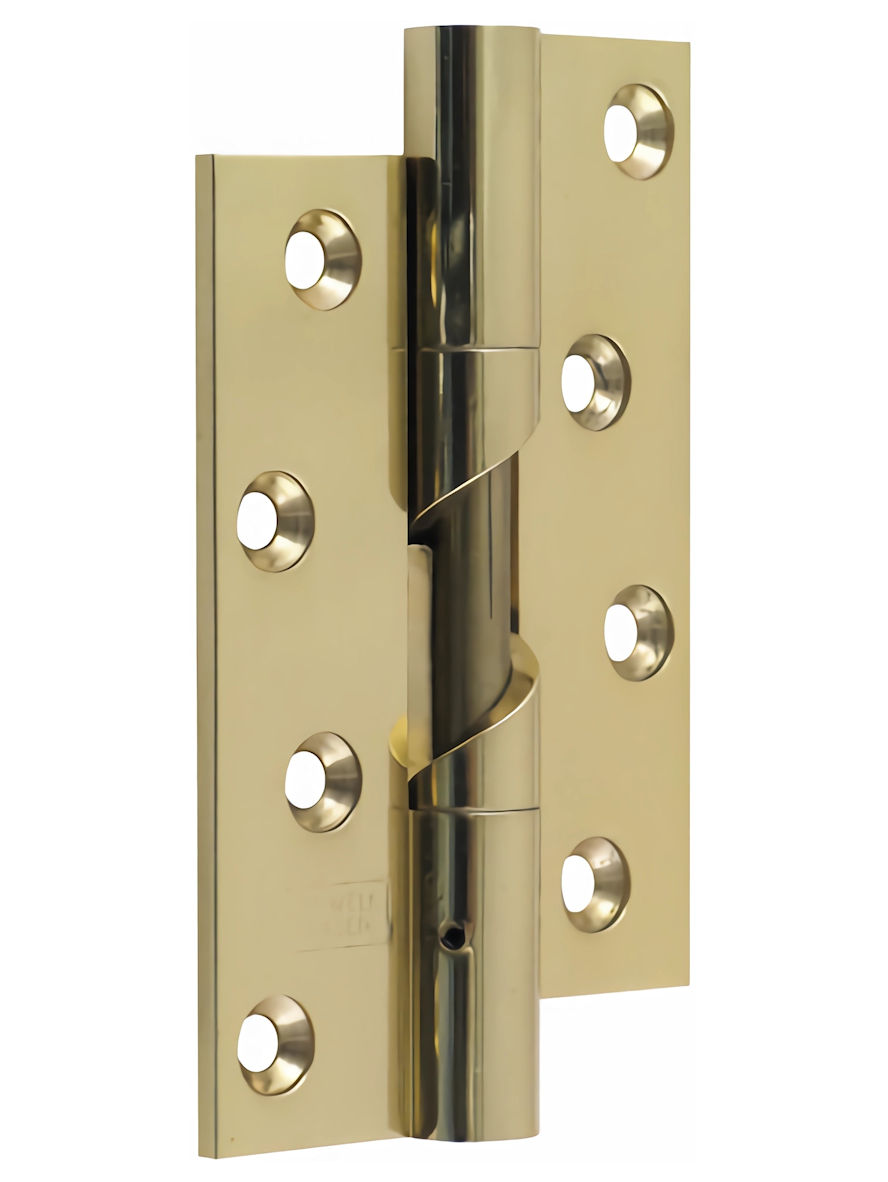

#02 Simonswerk 1840 4" (100mm) Solid Brass Rising Butt Hinge
  • #02 Simonswerk 1840 4" (100mm) Solid Brass Rising Butt Hinge
  • #02 Simonswerk 1840 4" (100mm) Solid Brass Rising Butt Hinge
  • #02 Simonswerk 1840 4" (100mm) Solid Brass Rising Butt Hinge
Made In Britain

Simonswerk Heavy Pattern Solid Drawn Brass Rising Butt Hinge for Doors up to 45Kg

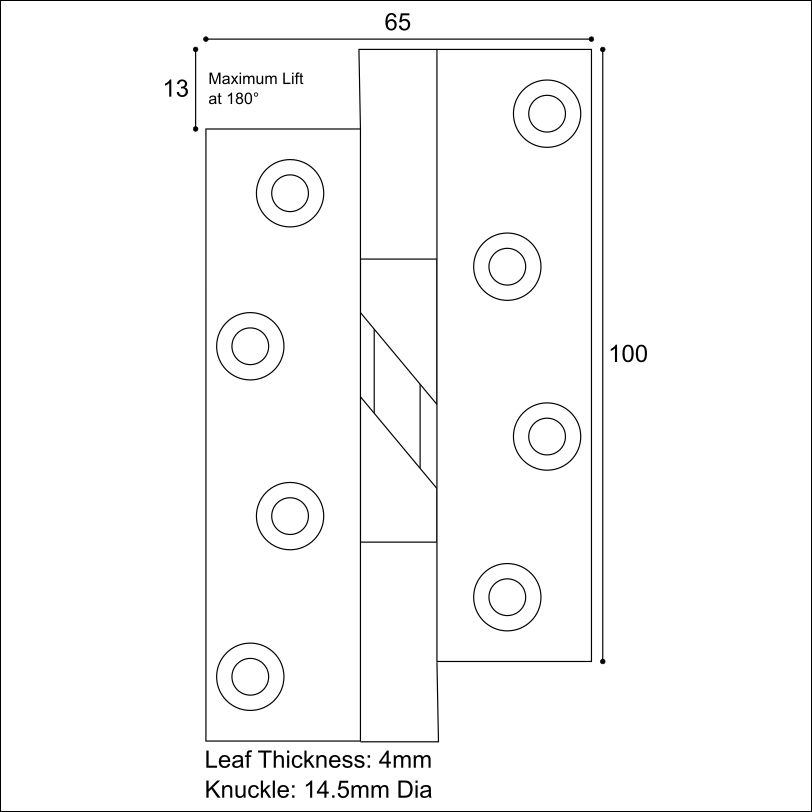

Dimensions: 100mm x 65mm x 4mm

Lift at 180: 13mm

Priced per *PAIR* (2 hinges) complete with fixing screws
Special Order Item - Lead Times Apply

Simonswerk Product Ref: 1840

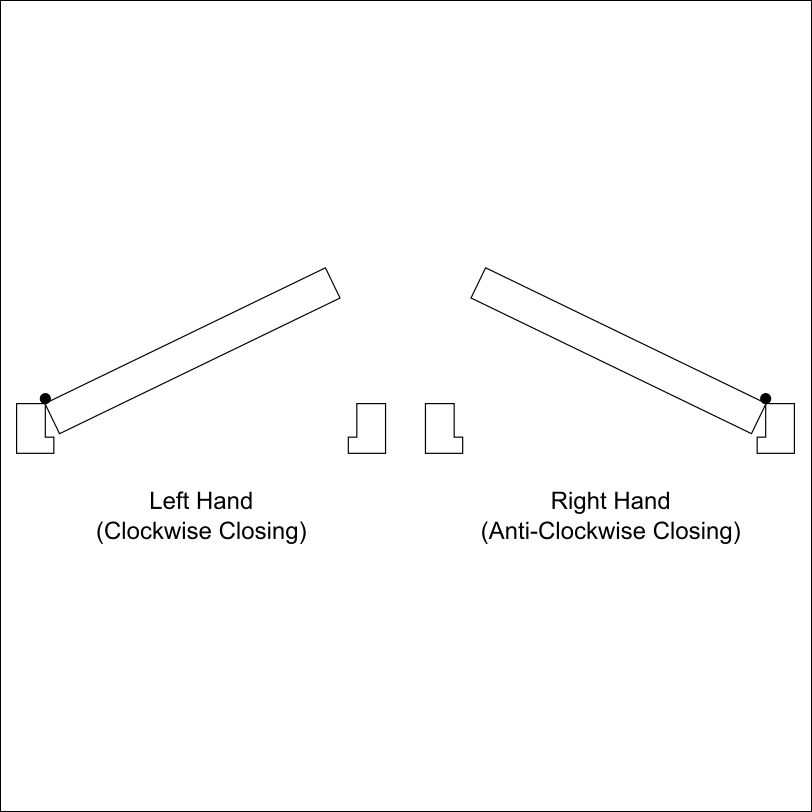

Rising Butt Hinges are handed LH or RH. Please refer to the relevant technical image and make your selection from the drop down list above.

Use the drop down menu above to select from the following premium quality finishes:
(Click on a finish image for more details)
Self Colour Brass Satin Brass Unlaquered Polished Brass Unlaquered Antiqued Brass Unlacquered Imperial Bronze Unlacquered
Satin Chrome Plate Polished Chrome Plate Satin Nickel Plate Polished Nickel Plate

Rising butt hinges are designed to lift doors slightly during the opening cycle to prevent damage to floor coverings & carpets etc. Fitted with a brass pin & heavy duty bronze skews for long life & high resistance to corrosion, this high quality Solid Brass version will raise the door by 13mm at 180. The all non-ferrous construction makes the Self Colour version of this hinge particularly suitable for applications in high humidity or marine environments. Manufactured in Britain by Simonswerk UK.

Available in a range of specialist finishes to compliment both traditional and contemporary styles. Choose from Self Colour Brass, Satin Brass Unlacquered, Polished Brass Unlacquered, Antique Brass Unlacquered, Imperial Bronze Unlacquered, Satin Nickel, Polished Nickel, Satin Chrome and Polished Chrome.

**These hinges are sold and priced per Pair (2 hinges)**

Supplied complete with countersunk pozi-drive wood screws in matching finish.

*Additional finishes are available - please contact us for details.

These hinges are suitable for doors weighing up to 45kg in heavy-use commercial settings based on fitting 2 hinges.

Rising butt hinges are NOT designed to be door closing devices and are not recommended as such.

To keep these hinges in optimum working condition we recommend a once yearly application of axle or bearing grease. Check hinges occassionaly for dirt and wipe clean with an oil impregnated cloth.

This product is manufactured and hand finished to order. You should therefore allow 3 - 4 weeks for despatch.

**NOTE: "Special Order Item" products are non returnable**
