#06 ANSELMI AN 108 3D Concealed Self Closing Hinge 45Kg - Soft Close Function

(Code: 6512-108-676)
Select Finish :
£ 284.03
Available at Supplier
Available in 5 days
Add to cart
#06 ANSELMI AN 108 3D Concealed Self Closing Hinge 45Kg - Soft Close Function
  • #06 ANSELMI AN 108 3D Concealed Self Closing Hinge 45Kg - Soft Close Function
  • #06 ANSELMI AN 108 3D Concealed Self Closing Hinge 45Kg - Soft Close Function
  • #06 ANSELMI AN 108 3D Concealed Self Closing Hinge 45Kg - Soft Close Function
  • #06 ANSELMI AN 108 3D Concealed Self Closing Hinge 45Kg - Soft Close Function
  • #06 ANSELMI AN 108 3D Concealed Self Closing Hinge 45Kg - Soft Close Function

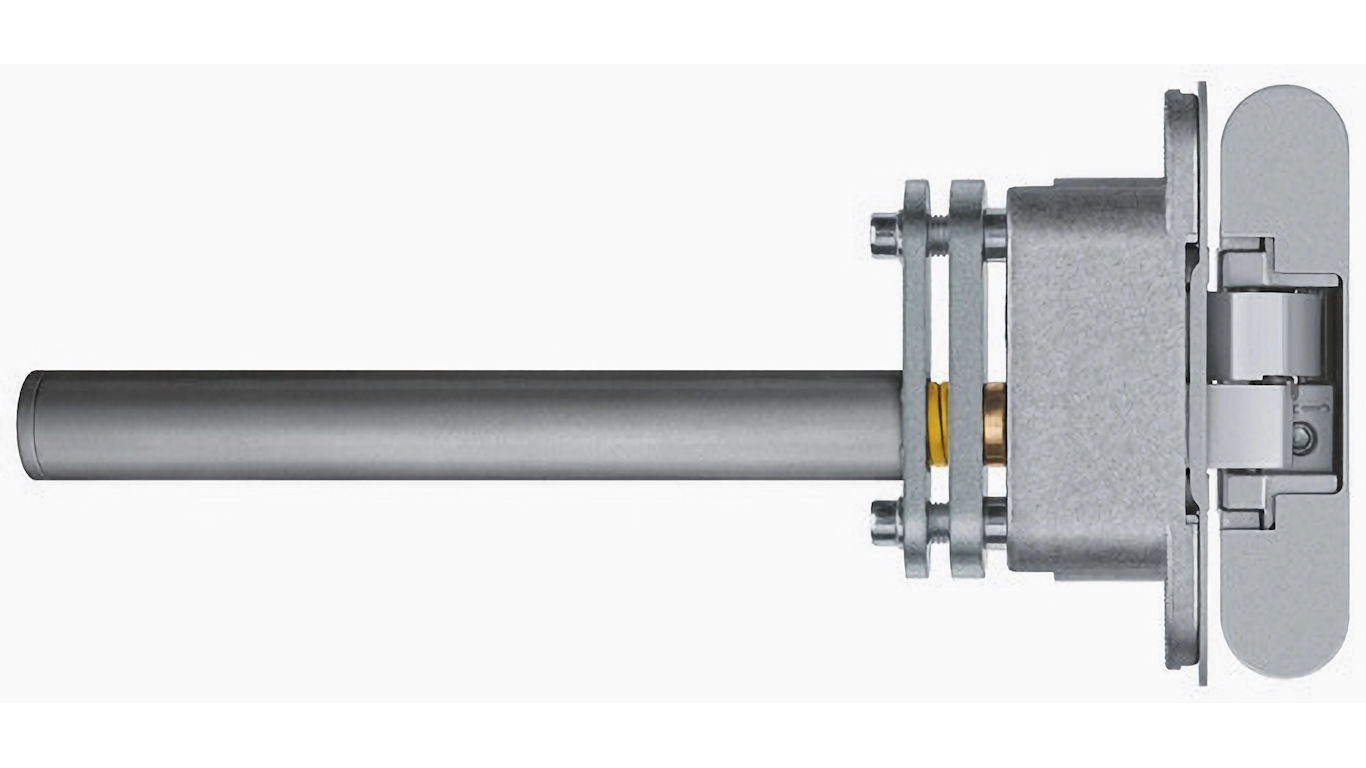

Simonswerk ANSELMI AN 108 Concealed Self Closing Hinge System with Integrated Dampening for Door Weights up to 45Kg

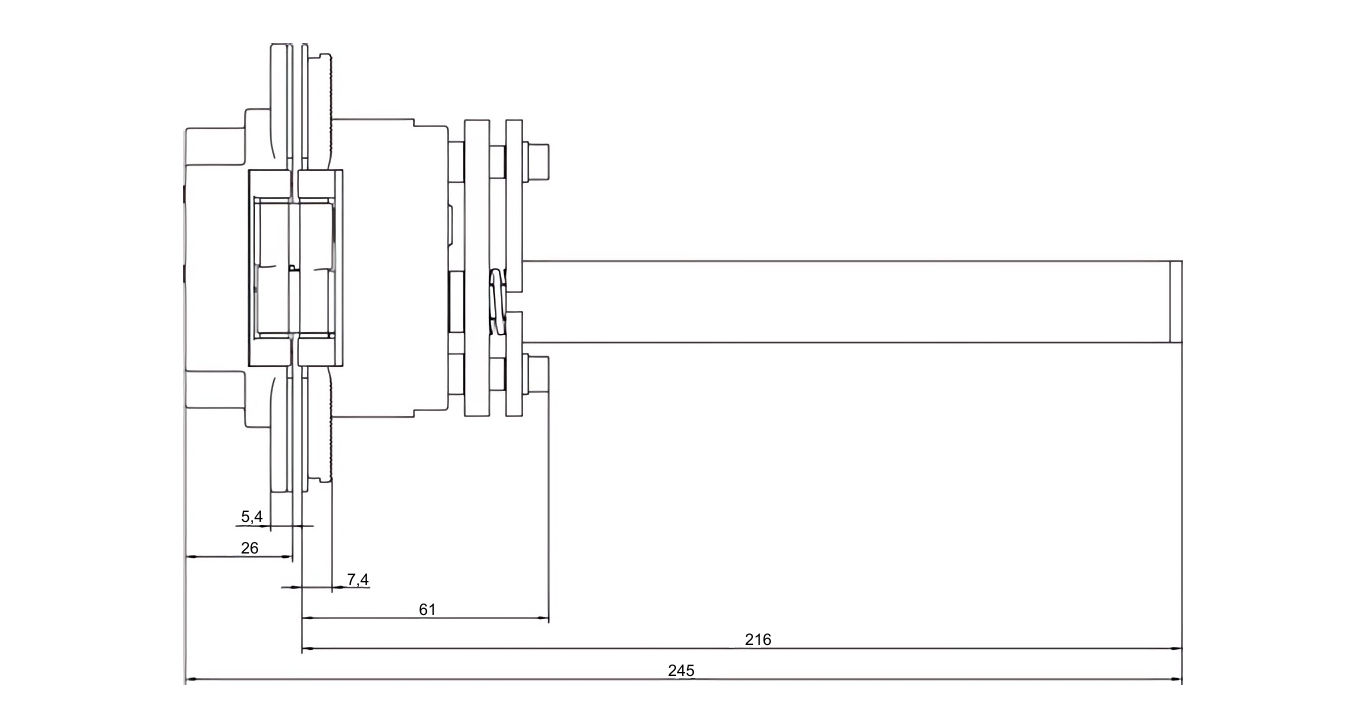

Dimensions: 110mm x 24mm x 24mm
Minimum Door Thickness: 34mm

Simonswerk Product Ref: AN 108 3D C45

Priced per *SINGLE*
Core Stock Product

Use the drop down menu above to select from the following high quality finishes:
Satin Chrome Look Deep Matt Black Traffic White Polished Brass Polished Chrome Bronze Finish

The ANSELMI self closing hinge system allows for discreet closing of doors in residential settings when used with the AN 160 3D Concealed Hinge. This version is suitable for unrebated flush doors up to 45kg and features an integrated 'Soft Close' dampening function.

Choose from a range of high quality aesthetic finishes including Polished Chrome, Polished Brass and Bronze.

To be used with AN 160 hinges only - see 'Related Items' below. 2 x AN 160 hinges plus 1 x AN 107 closing device MUST be fitted per door.

Suitable for doors with a maximum adjusted weight of 45kg based on a 2100mm x 900mm door leaf.

This product is NOT suitable for use on fire rated door sets.

This self closing device is virtually maintenance free and requires little attention. However, it is advisable to lubricate every two years with a dry PTFE spray especially in higher use applications. The action of doors should be checked occassionaly and the closer adjusted if neccessary. Dirt and grime can be wiped clean with an oil impregnated cloth.
