#02 ANSELMI AN 160 110mm 3D Concealed Hinge 60Kg

(Code: 1722-160-676)
Select Finish :
£ 33.08
(4 Item(s) In Stock)
Add to cart
#02 ANSELMI AN 160 110mm 3D Concealed Hinge 60Kg
  • #02 ANSELMI AN 160 110mm 3D Concealed Hinge 60Kg
  • #02 ANSELMI AN 160 110mm 3D Concealed Hinge 60Kg
  • #02 ANSELMI AN 160 110mm 3D Concealed Hinge 60Kg
  • #02 ANSELMI AN 160 110mm 3D Concealed Hinge 60Kg

Simonswerk ANSELMI AN 160 Fully Adjustable Concealed Hinge for Door Weights up to 60Kg

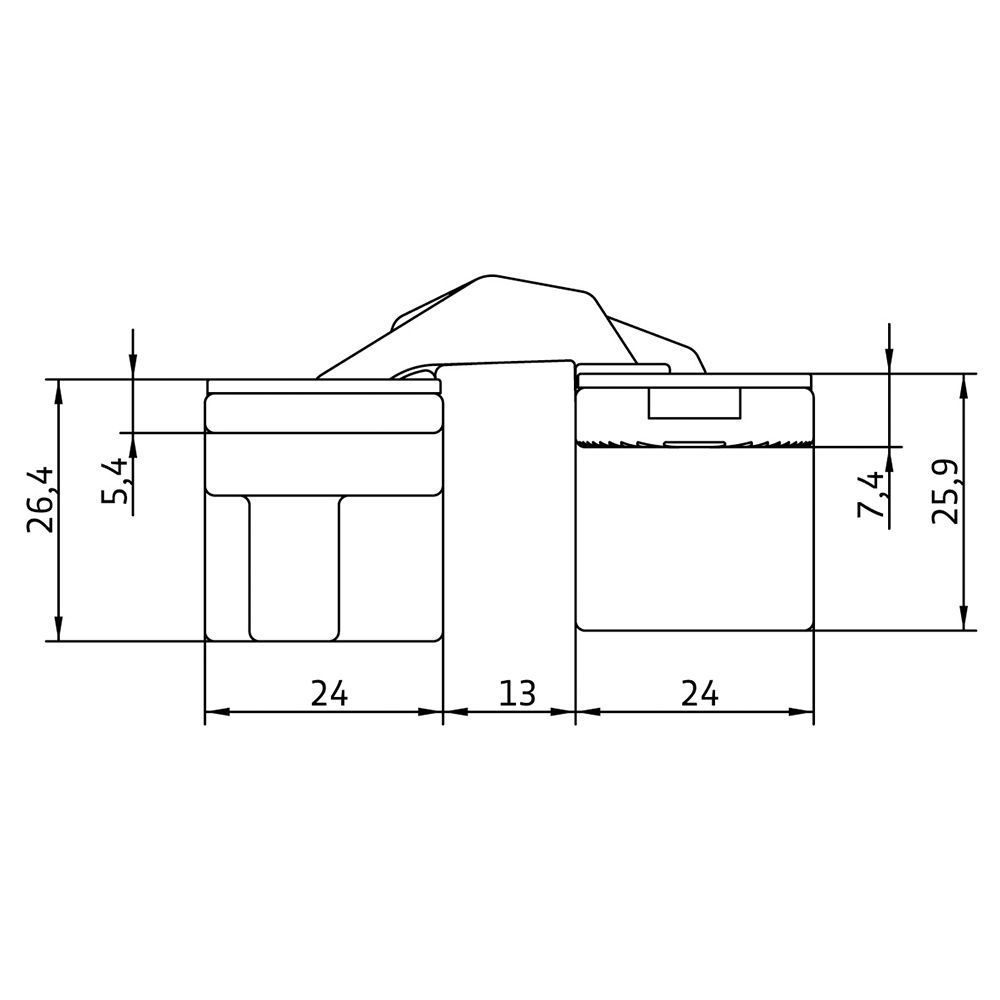

Dimensions: 110mm x 24mm x 24mm
Minimum Door Thickness: 34mm

Simonswerk Product Ref: AN 160 3D

Priced per *SINGLE* hinge
Core Stock Product

Use the drop down menu above to select from the following high quality finishes:
Satin Chrome Look Deep Matt Black Traffic White Polished Brass Polished Chrome Bronze Finish

Concealed hinges allow doors to be integrated into straight-lined and flush fitting architectural structures making them an ideal solution for high quality joinery in contemporary settings. Manufactured in Italy, the ANSELMI range of concealed hinges offers full 3 dimensional adjustment for internal doors and provides guaranteed, long-lasting operation. This version is suitable for unrebated flush doors up to 60kg (with 2 hinges fitted) in residential environments.

Choose from a range of high quality aesthetic finishes including Polished Chrome, Polished Brass and Bronze.

**NOTE: These hinges are sold and priced per single hinge**

These hinges are suitable for doors with a maximum adjusted weight of 60kg with 2 hinges fitted based on a 2100mm x 900mm door leaf.

Detailed advice on the selection and specification of hinges for full height doors can be found [HERE]

For best results on timber doors, these hinges should be fitted using the appropriate Routing Template and Universal Milling Frame detailed in the 'Related Items' below.

These concealed hinges are virtually maintenance free and require little attention. However, it is advisable to lubricate the hinges every two years with a dry PTFE spray especially in higher use applications. The action of doors should be checked occassionaly and hinges adjusted if neccessary. Hinges can be wiped clean of dirt and grime with an oil impregnated cloth.
