#16 Simonswerk P1264 6" (152mm) Solid Brass DPBW Projection Hinge

(Code: 1537-518-725)
Select Finish :
£ 48.95
(6 Item(s) In Stock)
Add to cart
#16 Simonswerk P1264 6" (152mm) Solid Brass DPBW Projection Hinge
  • #16 Simonswerk P1264 6" (152mm) Solid Brass DPBW Projection Hinge
  • #16 Simonswerk P1264 6" (152mm) Solid Brass DPBW Projection Hinge
  • #16 Simonswerk P1264 6" (152mm) Solid Brass DPBW Projection Hinge
Made In Britain

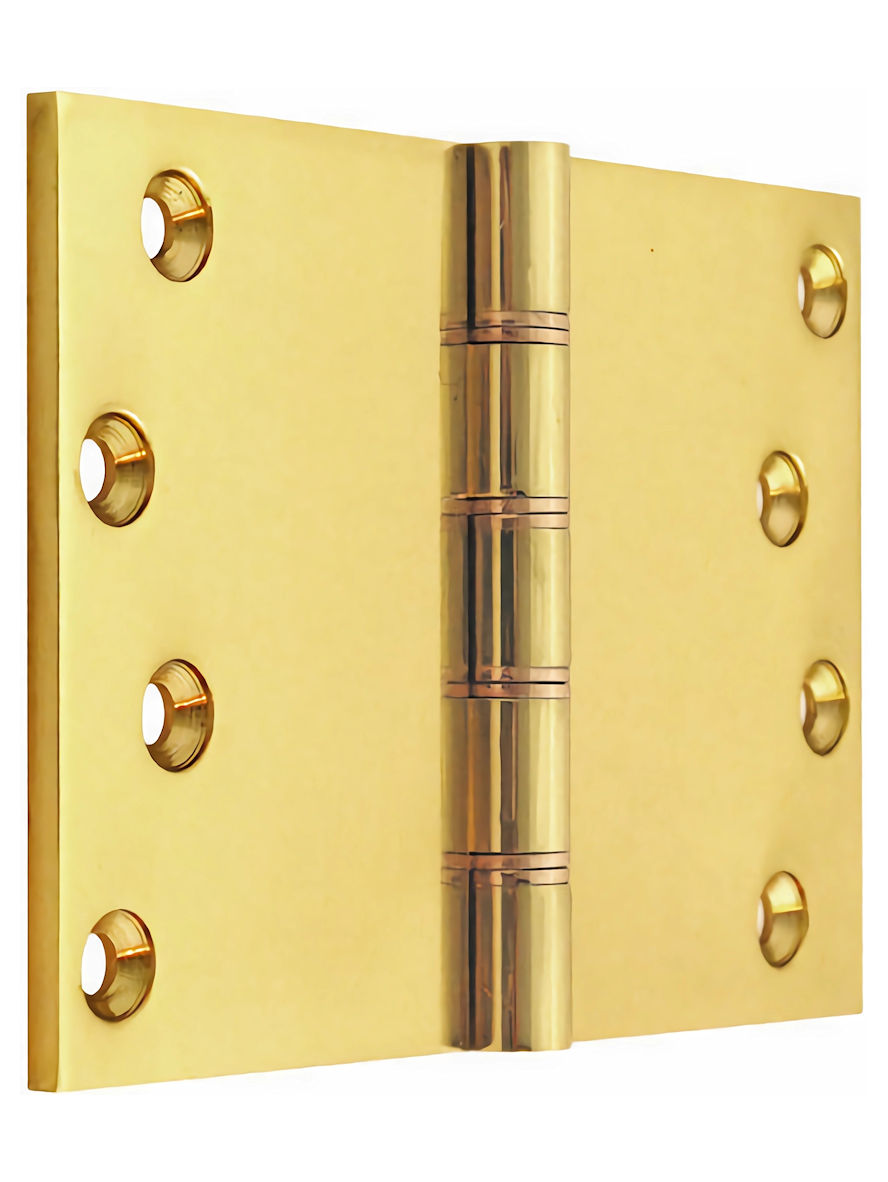

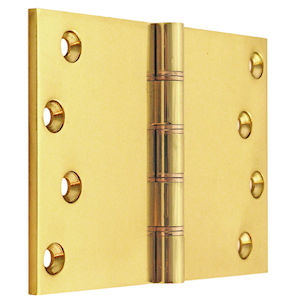

Simonswerk Heavy Pattern Solid Drawn Brass Projection Hinge for Doors up to 80Kg

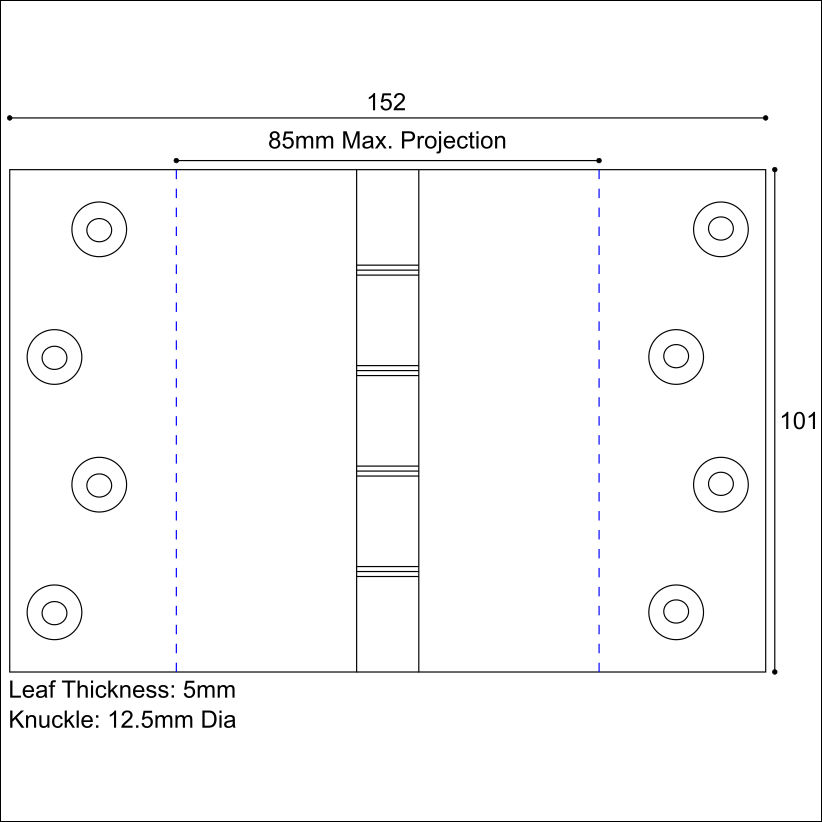

Dimensions: 101mm x 152mm x 5mm

Projection: 85mm

Priced per *SINGLE* hinge complete with fixing screws
Special Order Item - Lead Times Apply

Simonswerk Product Ref: P1264

Use the drop down menu above to select from the following premium quality finishes:
(Click on a finish image for more details)
Self Colour Brass Satin Brass Unlaquered Polished Brass Unlaquered Antiqued Brass Unlacquered Imperial Bronze Unlacquered
Satin Chrome Plate Polished Chrome Plate Satin Nickel Plate Polished Nickel Plate

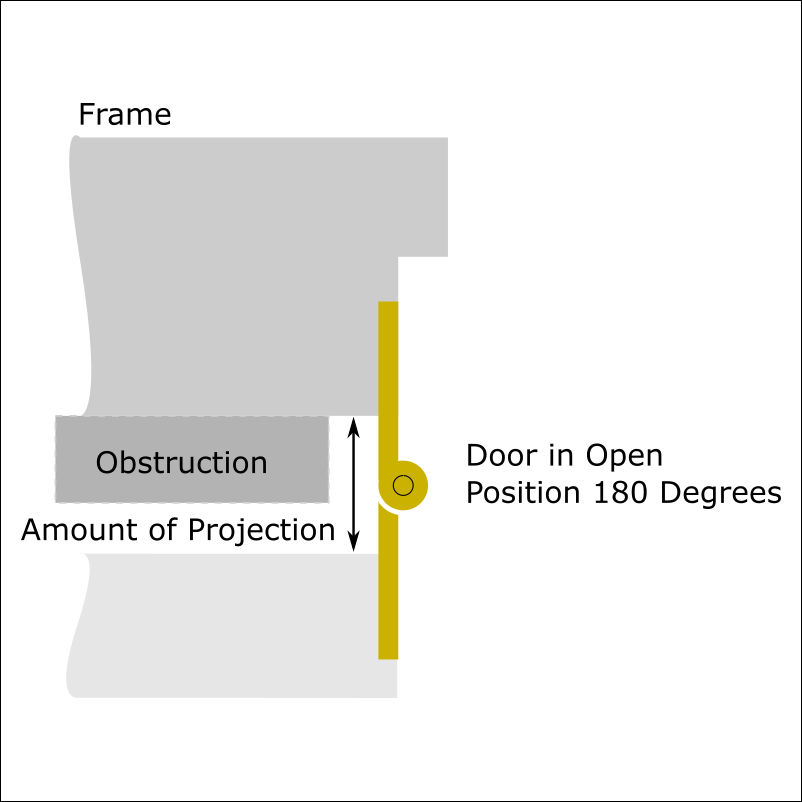

Projection hinges are drilled with holes toward the edge of a broad leaf enabling doors to clear obstructions when opening beyond 90. This premium quality hinge features Double Phosphor Bronze Washers for reduced wear and will provide up to 85mm projection at 180. The all non-ferrous construction makes the Self Colour version of this hinge particularly suitable for doors in high humidity or marine environments. Manufactured in Britain by Simonswerk UK.

Available in a range of specialist finishes to compliment both traditional and contemporary styles. Choose from Self Colour Brass, Satin Brass Unlacquered, Polished Brass Unlacquered, Antique Brass Unlacquered, Imperial Bronze Unlacquered, Satin Nickel, Polished Nickel, Satin Chrome and Polished Chrome.

**NOTE: These hinges are sold and priced per single hinge**

Supplied complete with countersunk pozi-drive wood screws in matching finish.

*Additional finishes are available - please contact us for details.

These hinges are suitable for doors weighing up to 80kg in medium-use settings based on fitting 3 hinges.

NOT recommended for doors fitted with door closing devices.

Detailed advice on the selection and specification of hinges for full height doors can be found [HERE]

Additional advice on selecting parliament hinges and projection hinges can be found in our [TECHNICAL GUIDE - PARLIAMENT & PROJECTION HINGES]

To keep these hinges in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Check hinges occassionaly for dirt and grease and wipe clean with an oil impregnated cloth.

This product is manufactured and hand finished to order. You should therefore allow 3 - 4 weeks for despatch.

**NOTE: "Special Order Item" products are non returnable**
