#02 TECTUS TE340 3D Concealed Hinge 80Kg

(Code: 1702-340-676)
Select Finish :
£ 86.99
Available at Supplier
Add to cart
#02 TECTUS TE340 3D Concealed Hinge 80Kg
  • #02 TECTUS TE340 3D Concealed Hinge 80Kg
  • #02 TECTUS TE340 3D Concealed Hinge 80Kg
  • #02 TECTUS TE340 3D Concealed Hinge 80Kg
  • #02 TECTUS TE340 3D Concealed Hinge 80Kg

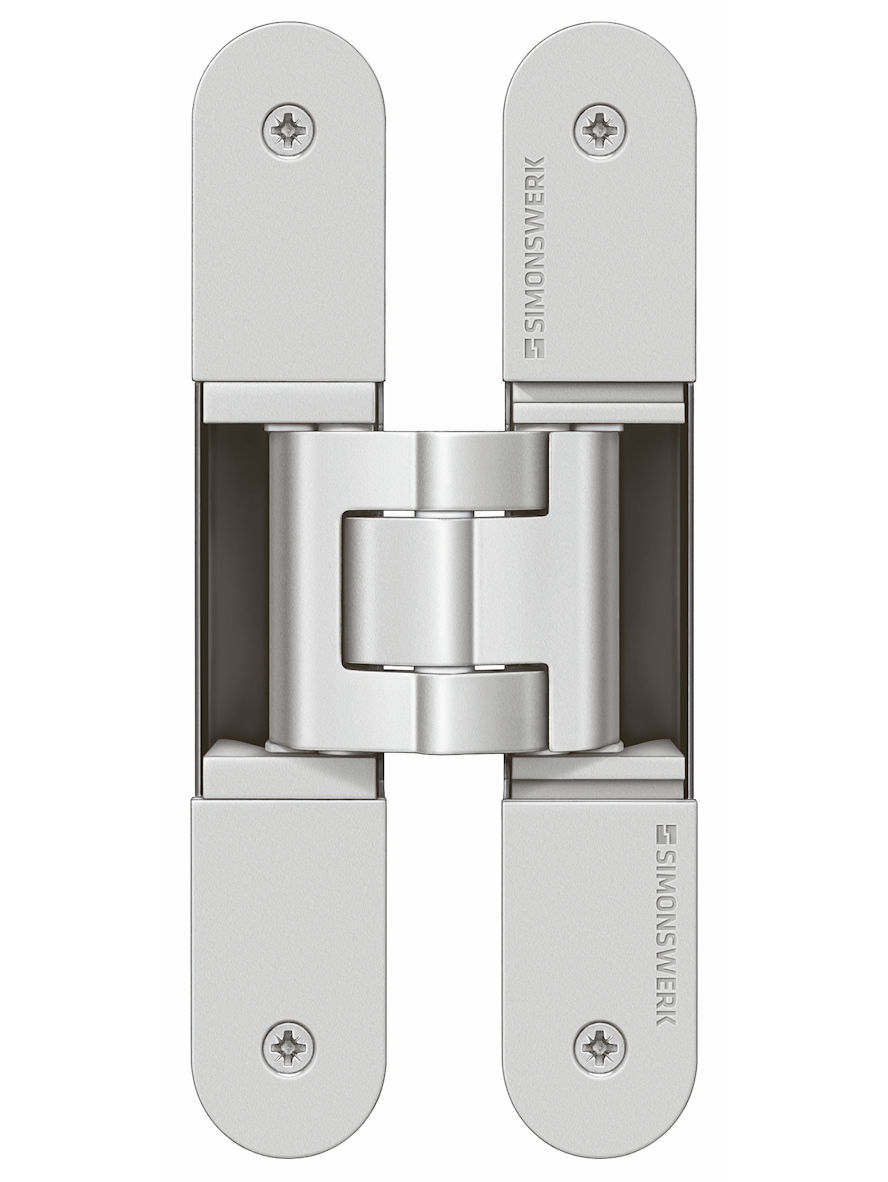

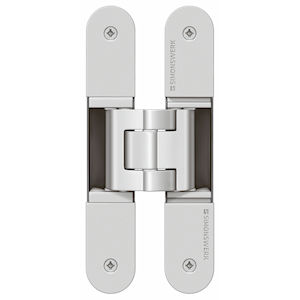

Simonswerk TECTUS Fully Adjustable Concealed Hinge for Doors Weights up to 80Kg

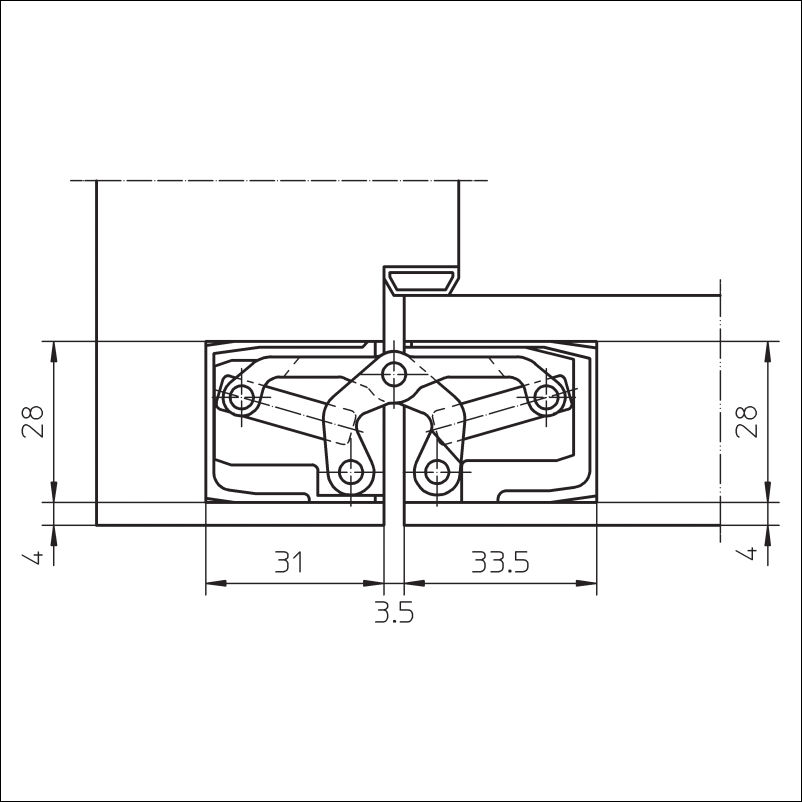

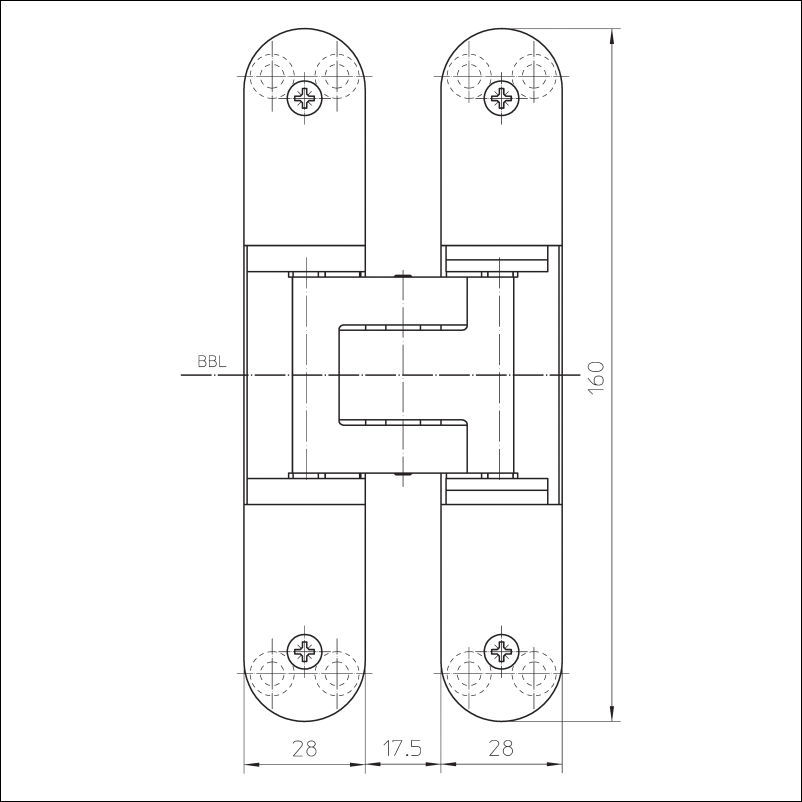

Dimensions: 160mm x 28mm x 28mm

Priced per *SINGLE* hinge
Back Order Item - Lead Times Apply

Simonswerk Product Ref: TE340

Use the drop down menu above to select from the following high quality finishes:
Satin Chrome Look Satin Nickel Look Stainless Steel Look Bronze Metallic Matt Deep Black
Traffic White Rustic Umber Satin Brass Plated Polished Brass Plated Satin Nickel Plated
Polished Nickel Plated Bronze Finish Bronze Finish Light Bronze Finish Dark

Fully concealed TECTUS hinges from Simonswerk allow doors to be integrated into straight-lined and flush fitting architectural structures making them an ideal solution for high quality joinery in both contemporary residential settings and high-use commercial environments. This version is suitable for unrebated flush doors up to 80kg.

Incorporating maintenance-free slide bearings and full 3 dimensional adjustment, TECTUS hinges come with a lifetime guarantee when specified and fitted correctly.

Choose from an extensive range of high quality architectural finishes including Satin Chrome, Polished Nickel, Satin Brass, Dark or Light Bronze and Black.

**NOTE: These hinges are sold and priced per single hinge**

These hinges are suitable for doors with an adjusted weight up to 80kg in residential or commercial settings based on fitting 2 hinges to a 2000mm x 1000mm door leaf. A third hinge is recommended for external doors and doors fitted with overhead door closers.

Detailed advice on the selection and specification of hinges for full height doors can be found [HERE]

For best results on timber doors, Tectus hinges should be fitted using the appropriate Routing Template and Universal Milling Frame detailed in the 'Related Items' below.

Tectus hinges are virtually maintenance free and require little attention. However, it is wise to check the action of doors occassionaly and adjust the hinges if neccessary. Hinges can be wiped clean of dirt and grime with an oil impregnated cloth.

Simonswerk TECTUS hinges are non stock products and will normally need to be ordered in from the manufacturer. Lead times vary depending on the finish chosen with approximate times as follows:

Group 1 Finishes - Normally stocked in the UK with a lead time of 4 - 5 days.
Satin Chrome Look
Satin Nickel Look

Group 2 Finishes - Small quantities stocked in the UK with a lead time of 4 - 5 days. Larger quantities 3 - 4 weeks.
Stainless Steel Look
Bronze Metallic
Matt Deep Black
Traffic White
Rustic Umber

Group 3 Finishes - Made to order with a 4 - 6 week lead time.
Satin Brass Plated
Polished Brass Plated
Satin Nickel Plated
Polished Nickel Plated
Bronze Finish
Bronze Finish Light
Bronze Finish Dark

Please do not hesitate to contact us if you would like to check availability before ordering.
