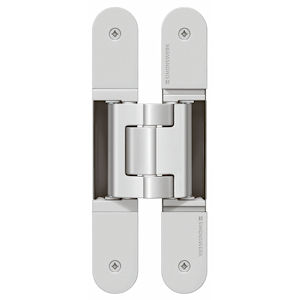

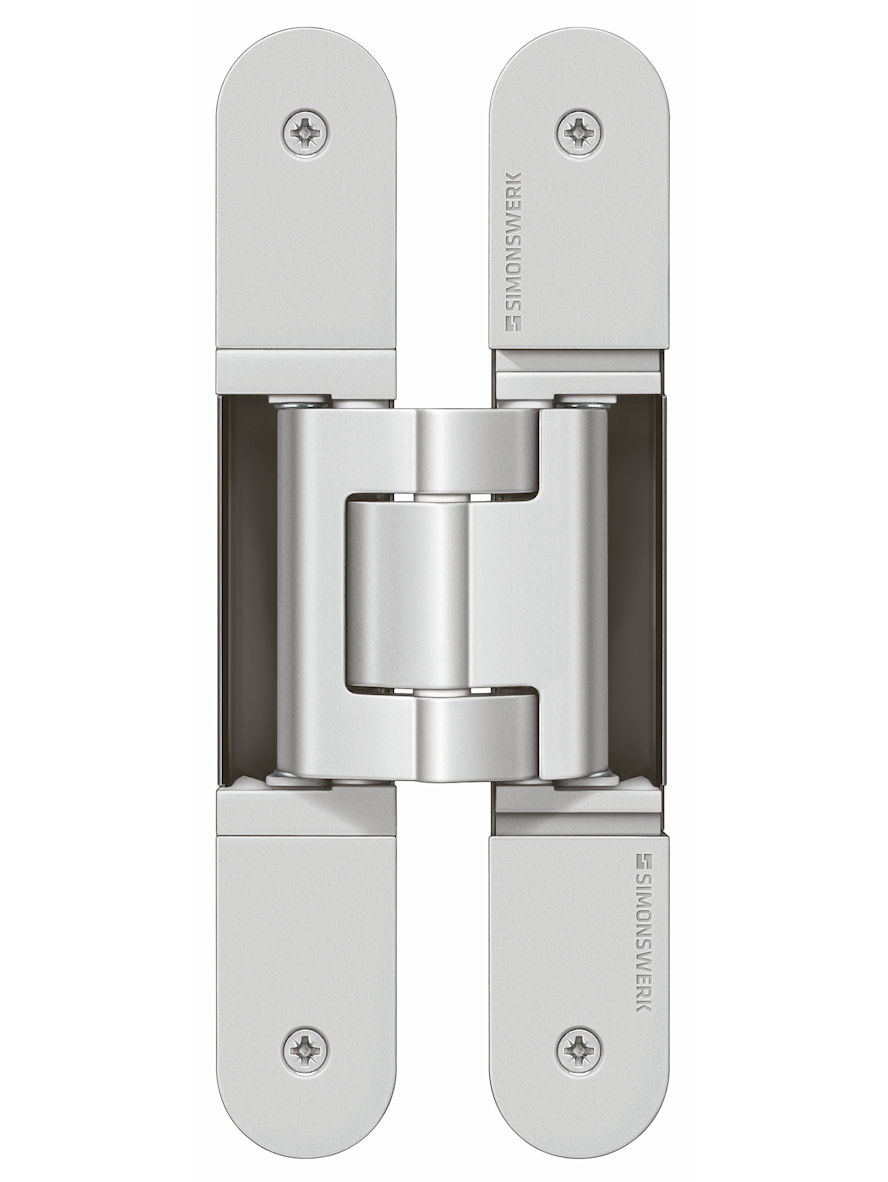

Fully concealed TECTUS hinges from Simonswerk allow doors to be integrated into straight-lined and flush fitting architectural structures making them an ideal solution for high quality joinery in both contemporary residential settings and high-use commercial environments. This version is suitable for unrebated flush doors up to 120kg.
Incorporating maintenance-free slide bearings and full 3 dimensional adjustment, TECTUS hinges come with a lifetime guarantee when specified and fitted correctly.
Choose from an extensive range of high quality architectural finishes including Satin Chrome, Polished Nickel, Satin Brass, Dark or Light Bronze and Black.
**NOTE: These hinges are sold and priced per single hinge**
These hinges are suitable for doors with an adjusted weight up to 120kg in residential or commercial settings based on fitting 2 hinges to a 2000mm x 1000mm door leaf. A third hinge is recommended for external doors and doors fitted with overhead door closers.
Detailed advice on the selection and specification of hinges for full height doors can be found [HERE]
For best results on timber doors, Tectus hinges should be fitted using the appropriate Routing Template and Universal Milling Frame detailed in the 'Related Items' below.
Tectus hinges are virtually maintenance free and require little attention. However, it is wise to check the action of doors occassionaly and adjust the hinges if neccessary. Hinges can be wiped clean of dirt and grime with an oil impregnated cloth.
Simonswerk TECTUS hinges are non stock products and will normally need to be ordered in from the manufacturer. Lead times vary depending on the finish chosen with approximate times as follows:
Group 1 Finishes - Normally stocked in the UK with a lead time of 4 - 5 days.
Satin Chrome Look
Satin Nickel Look
Group 2 Finishes - Small quantities stocked in the UK with a lead time of 4 - 5 days. Larger quantities 3 - 4 weeks.
Stainless Steel Look
Matt Deep Black
Group 3 Finishes - Made to order with a 4 - 6 week lead time.
Satin Brass Plated
Polished Brass Plated
Satin Nickel Plated
Polished Nickel Plated
Bronze Finish Light
Bronze Finish Dark
Please do not hesitate to contact us if you would like to check availability before ordering.
