#15 Simonswerk 1550CE 4" (100mm) Solid Brass FD30 Fire Door Hinge

(Code: 1529-512-728)
Select Finish :
£ 38.91
Available at Supplier
Add to cart
#15 Simonswerk 1550CE 4" (100mm) Solid Brass FD30 Fire Door Hinge
  • #15 Simonswerk 1550CE 4" (100mm) Solid Brass FD30 Fire Door Hinge
  • #15 Simonswerk 1550CE 4" (100mm) Solid Brass FD30 Fire Door Hinge
Made In Britain Suitable for FD30 Fire Doors

Simonswerk Heavy Duty Solid Drawn Brass FD30 Fire Door Hinge with Ball Race Bearings

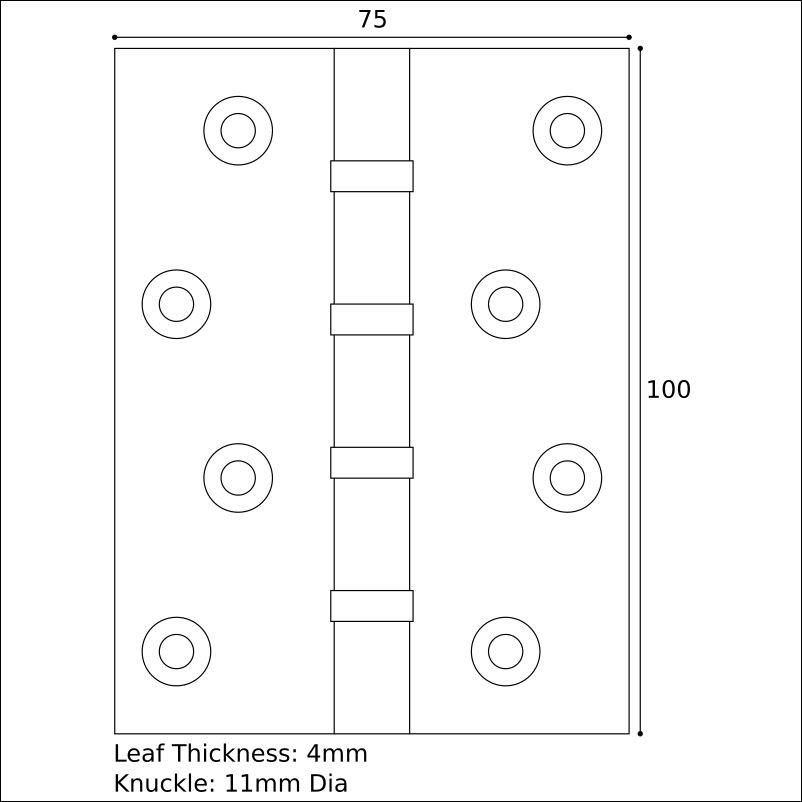

Dimensions: 100mm x 75mm x 4mm

Priced per *SINGLE* hinge complete with fixing screws
Special Order Item - Lead Times Apply

Simonswerk Product Ref: 1550

Use the drop down menu above to select from the following premium quality finishes:
(Click on a finish image for more details)
Satin Brass Unlaquered Polished Brass Unlaquered Antiqued Brass Unlacquered Imperial Bronze Unlacquered
Satin Chrome Plate Polished Chrome Plate Satin Nickel Plate Polished Nickel Plate

Our premium quality Solid Drawn Brass Butt Hinge features Heavy Duty Ball Race Bearings for increased performance and reduced wear and is an ideal choice for medium to heavy weight doors up to 80kg in luxury residential settings and commercial buildings where doors are subject to a high degree of through traffic or when door closers are fitted. This CE/UKCA marked version is supplied with integral intumescent material pads on the rear of the hinge leaves and is fully compliant for use on FD30 rated door sets. Manufactured in Britain by Simonswerk UK.

Available in a range of specialist finishes to compliment both traditional and contemporary styles. Choose from Satin Brass Unlacquered, Polished Brass Unlacquered, Antique Brass Unlacquered, Imperial Bronze Unlacquered, Satin Nickel, Polished Nickel, Satin Chrome and Polished Chrome.

**NOTE: These hinges are sold and priced per single hinge**

Supplied complete with countersunk pozi-drive wood screws in matching finish.

*Additional finishes are available - please contact us for details.

These hinges are suitable for FD30 rated doors weighing up to 80kg in medium to heavy-use settings based on fitting 3 hinges.

Detailed advice on the selection and specification of hinges for full height doors can be found [HERE]

To keep these hinges in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Check hinges occassionaly for dirt and grease and wipe clean with an oil impregnated cloth.

This product is manufactured and hand finished to order. You should therefore allow 3 - 4 weeks for despatch.

**NOTE: "Special Order Item" products are non returnable**
