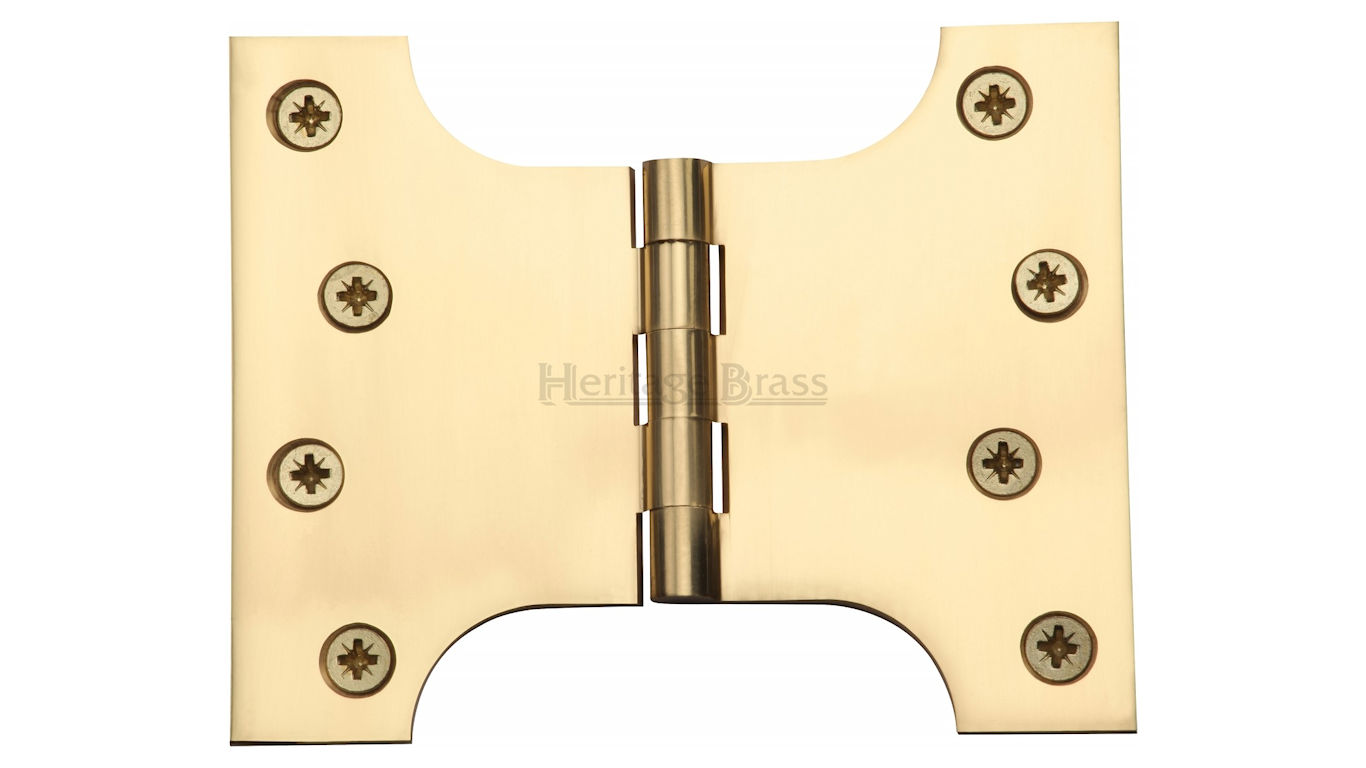

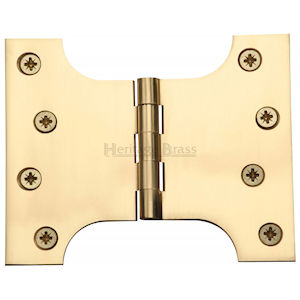

#08 5" (127mm) Solid Brass Parliament Projection Hinge

(Code: 1540-517-131)
Select Finish :
£ 13.63
(8 Item(s) In Stock)
Add to cart
#08 5" (127mm) Solid Brass Parliament Projection Hinge
  • #08 5" (127mm) Solid Brass Parliament Projection Hinge
  • #08 5" (127mm) Solid Brass Parliament Projection Hinge
  • #08 5" (127mm) Solid Brass Parliament Projection Hinge

Quality Solid Drawn Brass Light Duty Parliament Projection Hinge for Shutters & Doors up to 25kg

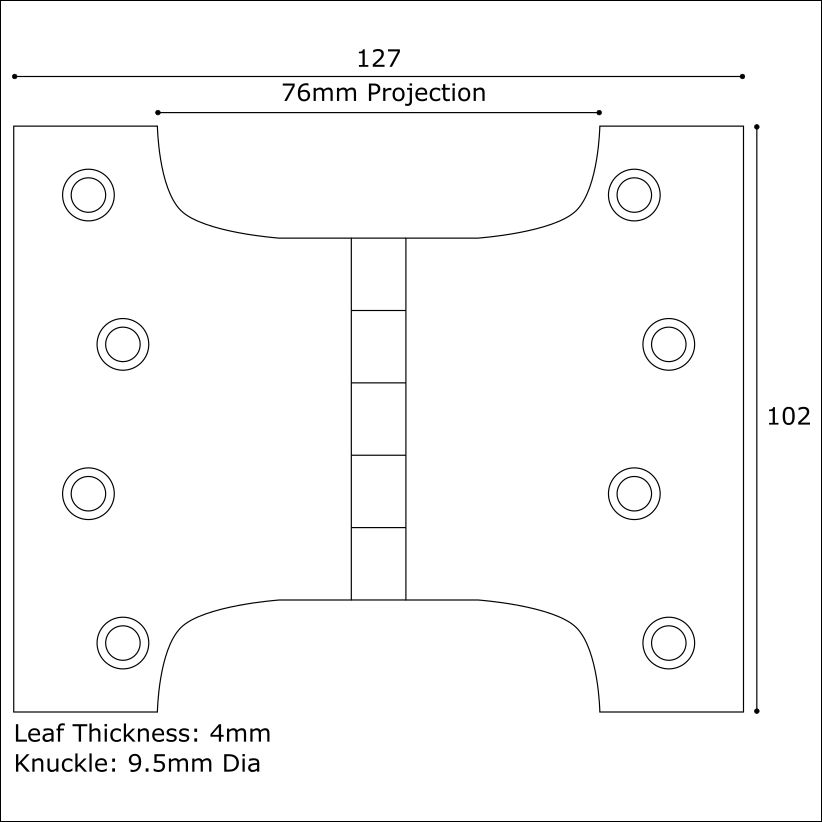

Dimensions: 102mm x 127mm x 4mm

Projection: 76mm

Priced per *SINGLE* hinge complete with fixing screws
Core Stock Product

Use the drop down menu above to select from the following quality finishes:
(Click on a finish image for more details)
Satin Brass Lacquered Polished Brass Lacquered Dark Matt Bronze Satin Chrome Plated Polished Chrome Plated

Parliament hinges are a traditional method of hanging doors and shutters that are required to clear obstructions when opening beyond 90. This quality solid drawn brass version will provide 76mm projection at 180 and is suitable for light weight doors up to 25kg. The all brass construction makes this hinge particularly suitable for external applications.

Available from stock in Satin Brass Lacquered, Polished Brass Lacquered, Satin Chrome, Polished Chrome and Dark Matt Bronze.

**NOTE: These hinges are sold and priced per single hinge**

Supplied complete with countersunk pozi-drive wood screws in matching finish.

These hinges are suitable for doors weighing up to 25kg in light-use residential settings based on fitting 3 hinges.

Detailed advice on the selection and specification of hinges for full height doors can be found [HERE]

Additional advice on selecting parliament hinges and projection hinges can be found in our [TECHNICAL GUIDE - PARLIAMENT & PROJECTION HINGES]

To keep these hinges in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Check hinges occassionaly for dirt and grease and wipe clean with an oil impregnated cloth.
