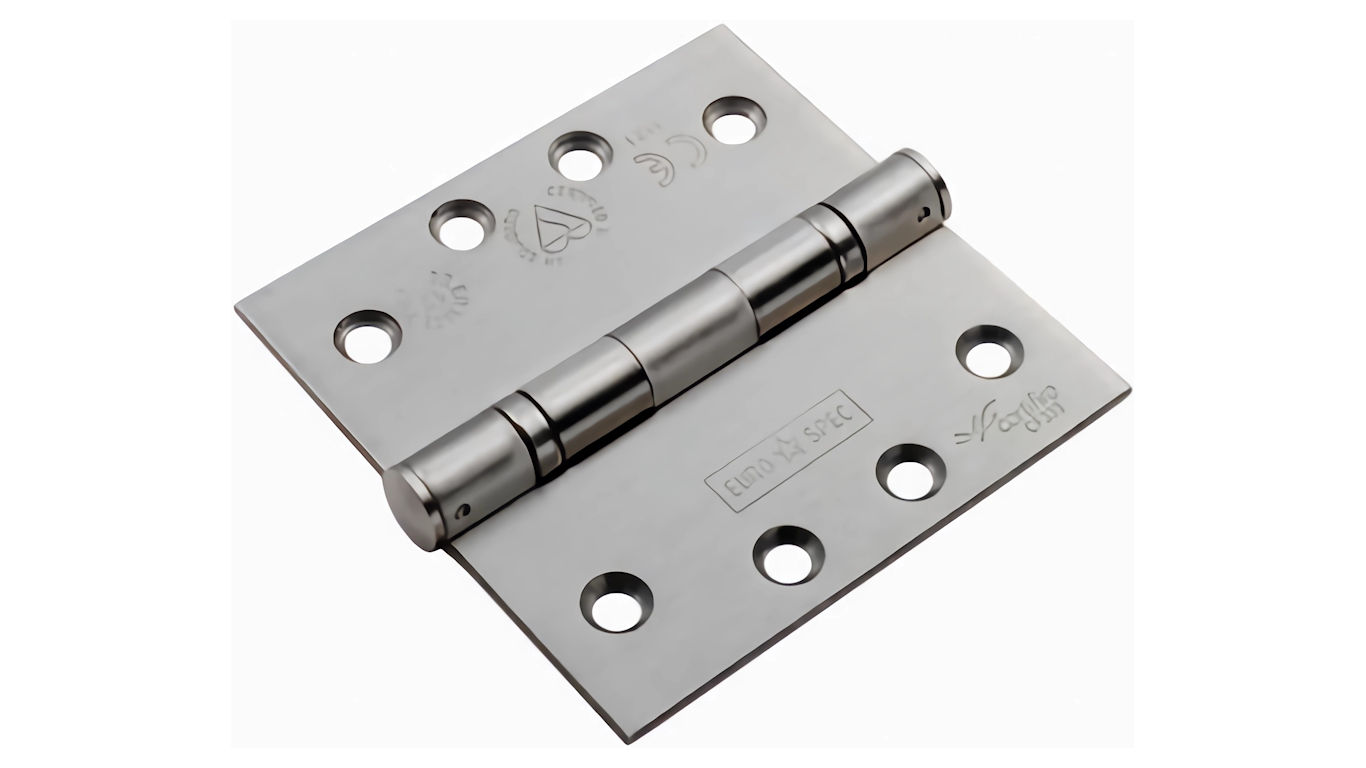

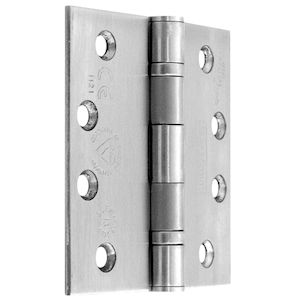

#04 4" (102mm) Marine Grade Stainless Steel Ball Race Bearing Projection Hinge

(Code: 1411-515-152)
Select Finish :
£ 13.97
(14 Item(s) In Stock)
Add to cart
#04 4" (102mm) Marine Grade Stainless Steel Ball Race Bearing Projection Hinge
  • #04 4" (102mm) Marine Grade Stainless Steel Ball Race Bearing Projection Hinge
  • #04 4" (102mm) Marine Grade Stainless Steel Ball Race Bearing Projection Hinge
  • #04 4" (102mm) Marine Grade Stainless Steel Ball Race Bearing Projection Hinge
  • #04 4" (102mm) Marine Grade Stainless Steel Ball Race Bearing Projection Hinge
Suitable for FD30/FD60 Timber Fire Doors

Heavy Duty Marine Grade Stainless Steel Ball Race Bearing Projection Hinge for Doors up to 120kg

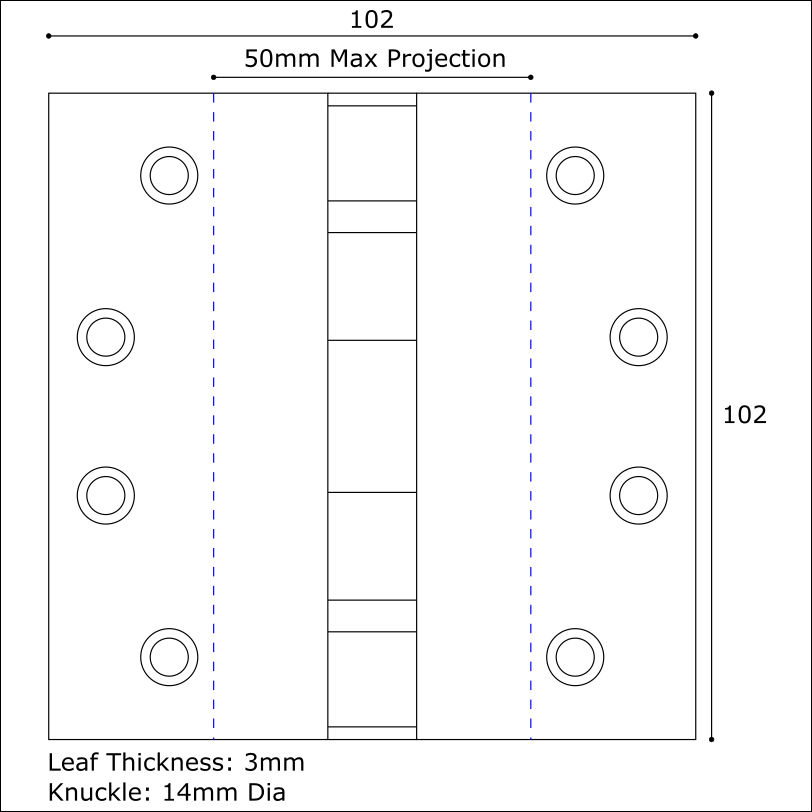

Dimensions: 102mm x 102mm x 3mm

Projection: 50mm

Priced per *SINGLE* hinge complete with fixing screws
Core Stock Product

Use the drop down menu above to select from the following quality finishes:
(Click on a finish image for more details)
Satin Stainless Steel - Marine Grade 316 Polished Stainless Steel - Marine Grade 316

Projection hinges are drilled with holes toward the edge of a broad leaf enabling doors to clear obstructions when opening beyond 90. This popular heavy duty version will provide up to 50mm projection at 180.

Manufactured from SUS316 Marine Grade Stainless Steel, this hinge is ideal for heavy weight doors subject to adverse atmospheric conditions such as in coastal areas, swimming pools etc or in areas where chemical cleaning agents may be used. Fitted with precision ball race bearings for increased performance and resistance to wear, the hinge is CE/UKCE certified and fully compliant for use on FD30/FD60 fire rated timber door sets when used with appropriate [INTUMESCENT LINER PADS]

Available from stock in Satin Stainless Steel or Polished Stainless Steel finish.

**NOTE: These hinges are sold and priced per single hinge**

Supplied complete with countersunk pozi-drive wood screws in matching finish.

These hinges are suitable for FD30/FD60 rated doors weighing up to 120kg in high-use settings based on fitting 3 hinges. For full compliance on fire doors, these hinges MUST be fitted with appropriate intumescent liner pads behind the hinge leaves on both door and frame.

Detailed advice on the selection and specification of hinges for full height doors can be found [HERE]

To keep these hinges in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Check hinges occassionaly for dirt and grease and wipe clean with an oil impregnated cloth.
