#01 3" (76mm) Stainless Steel Projection Hinge

(Code: 1406-312-150)
Shopping Satisfaction
Select Finish :
£ 3.53
(70 Item(s) In Stock)
Add to cart

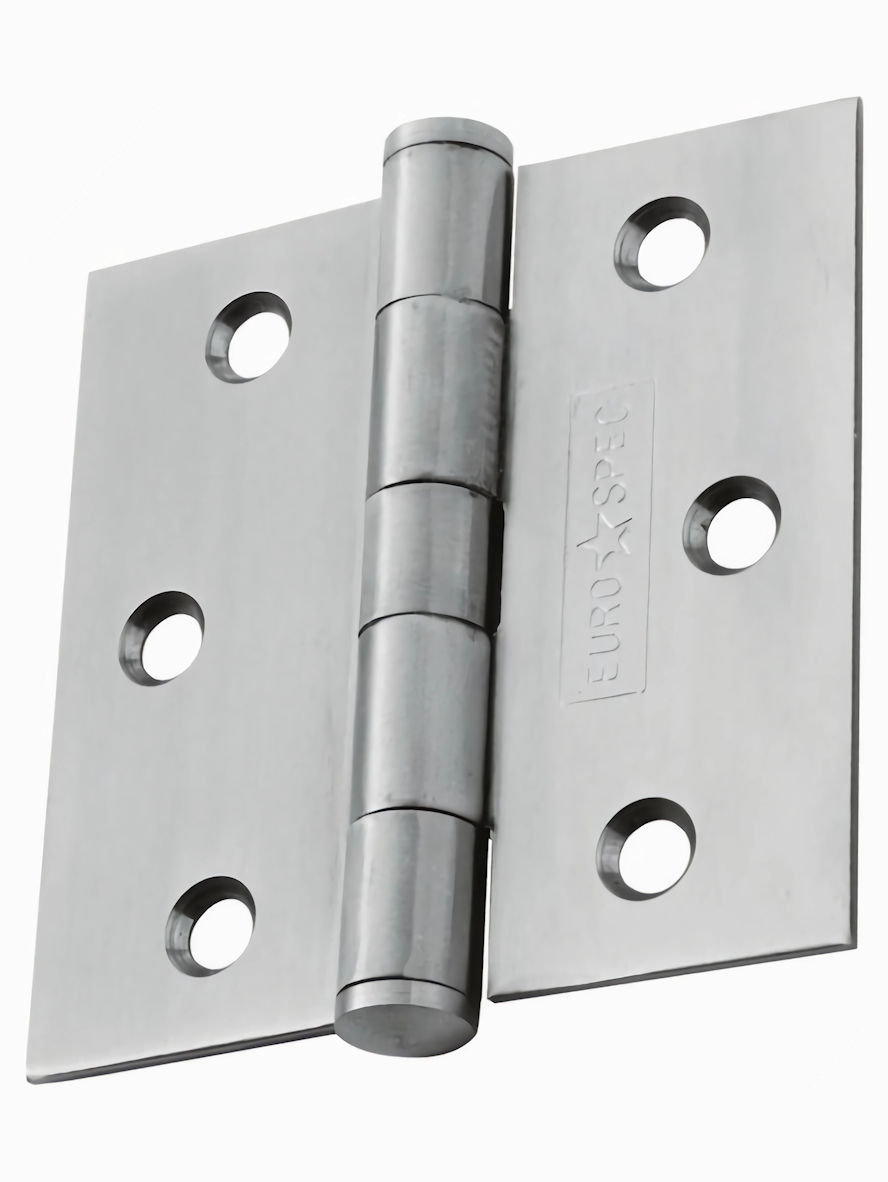

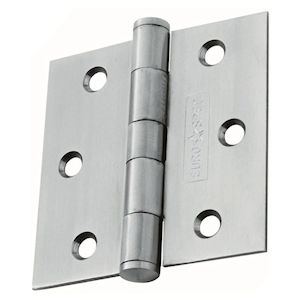

#01 3" (76mm) Stainless Steel Projection Hinge
  • #01 3" (76mm) Stainless Steel Projection Hinge
  • #01 3" (76mm) Stainless Steel Projection Hinge
  • #01 3" (76mm) Stainless Steel Projection Hinge

Medium Duty Plain Knuckle Stainless Steel Projection Hinge for Windows & Doors up to 25kg

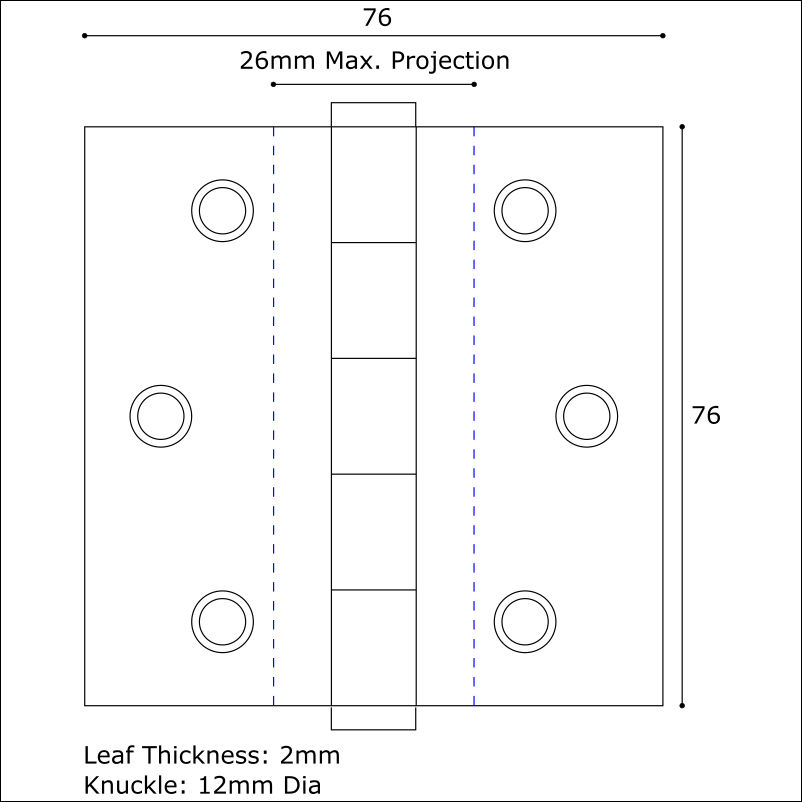

Dimensions: 76mm x 76mm x 2mm

Projection: 26mm

Priced per *SINGLE* hinge complete with fixing screws
Core Stock Product

Use the drop down menu above to select from the following quality finishes:
(Click on a finish image for more details)
Satin Stainless Steel Polished Stainless Steel

Projection hinges are drilled with holes toward the edge of a broad leaf enabling the door/window to clear obstructions when opening beyond 90°. This very popular light duty plain knuckle version will provide up to 26mm projection at 180° and is ideal for light weight doors and windows in residential settings.

Manufactured from SUS201 Stainless Steel and available in a choice of Satin or Polished finish.

**NOTE: These hinges are sold and priced per single hinge**

Supplied complete with countersunk pozi-drive wood screws in matching finish.

These hinges are suitable for doors weighing up to 25kg in light-use settings based on fitting 3 hinges.

NOT recommended for doors fitted with door closing devices.

Detailed advice on the selection of hinges for full height doors can be found [HERE]

Additional advice on selecting parliament hinges and projection hinges can be found in our [TECHNICAL GUIDE - PARLIAMENT & PROJECTION HINGES]

To keep these hinges in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Check hinges occassionaly for dirt and grease and wipe clean with an oil impregnated cloth.
