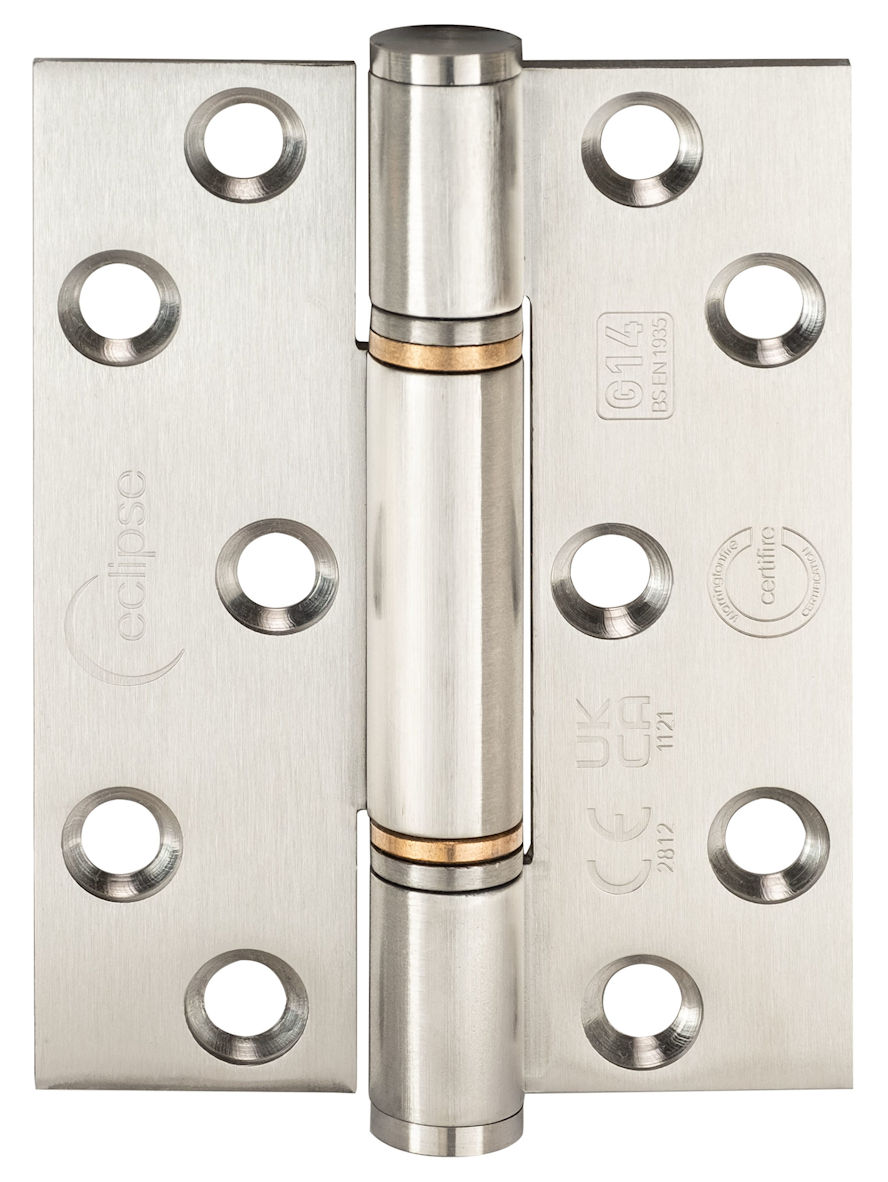

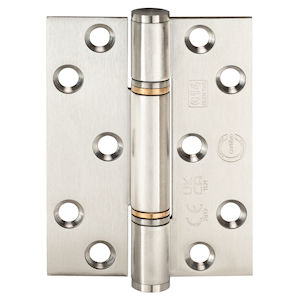

#11 4" (102mm) Marine Grade Stainless Steel High Performance Fire Door Hinge

(Code: 1422-512-152)
£ 10.22
(17 Item(s) In Stock)
Add to cart
#11 4" (102mm) Marine Grade Stainless Steel High Performance Fire Door Hinge
  • #11 4" (102mm) Marine Grade Stainless Steel High Performance Fire Door Hinge
  • #11 4" (102mm) Marine Grade Stainless Steel High Performance Fire Door Hinge
Suitable for FD30/FD60 Timber Fire Doors

Severe Duty Marine Grade Stainless Steel High Performance Butt Hinge for Doors up to 160kg

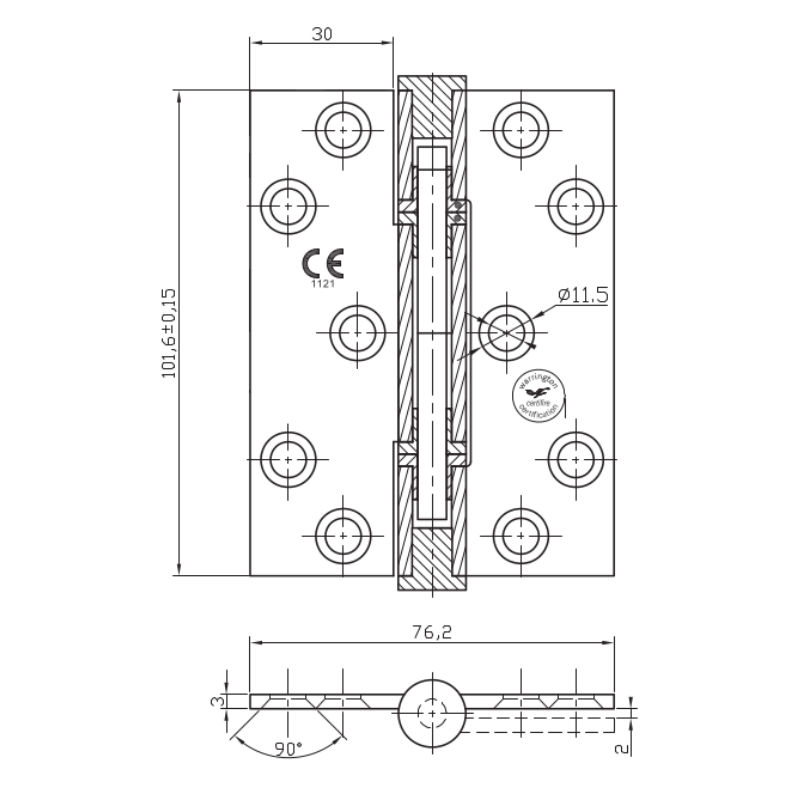

Dimensions: 102mm x 76mm x 3mm

Finish: Satin Stainless Steel - Marine Grade 316

Priced per *SINGLE* hinge complete with fixing screws
Core Stock Product

(Click on the finish image for more details)
Satin Stainless Steel - Marine Grade 316

Designed with strength and physical appearance in mind, this hinge is a high end specification product manufactured to meet the demands of prestige buildings. Incorporating oil impregnated sintered bronze bushes running against machined bearing surfaces, the hinge is virtually maintenance free even in high use areas. This premium quality hinge is an ideal choice for extra heavy weight doors up to 160kg in luxury residential settings and commercial buildings where doors are subject to a high degree of through traffic or when door closers are fitted. Manufactured from SUS316 Marine Grade Stainless Steel, this hinge is ideal for doors subject to adverse atmospheric conditions such as in coastal areas, swimming pools etc, areas where chemical cleaning agents may be used or for use with acidic timbers. The hinge is CE/UKCE certified and fully compliant for use on FD30/FD60/FD90/FD120 fire rated timber door sets when used with appropriate [INTUMESCENT LINER PADS]

**NOTE: These hinges are sold and priced per single hinge**

Supplied complete with countersunk pozi-drive wood screws in matching finish.

These hinges are suitable for FD30/FD60/FD90/FD120 rated doors weighing up to 160kg in high-use settings based on fitting 3 hinges. For full compliance on fire doors, these hinges MUST be fitted with appropriate intumescent liner pads behind the hinge leaves on both door and frame.

Detailed advice on the selection and specification of hinges for full height doors can be found [HERE]

Check hinges occassionaly for dirt and grease and wipe clean with an oil impregnated cloth.
