#15 6" (152mm) Stainless Steel Parliament Projection Hinge

(Code: 1414-518-150)
Shopping Satisfaction
Select Finish :
£ 34.84
(11 Item(s) In Stock)
Add to cart

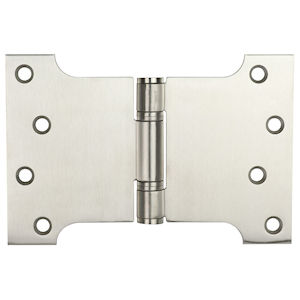

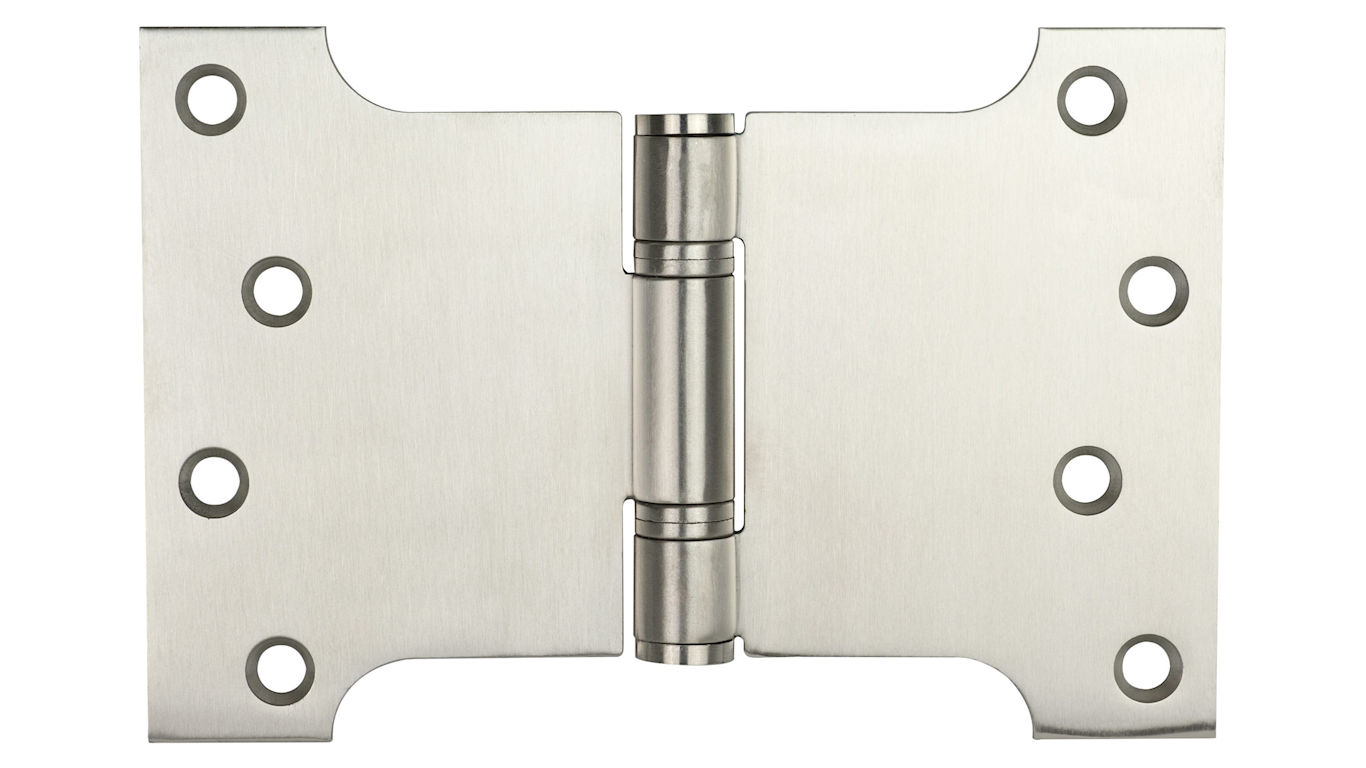

#15 6" (152mm) Stainless Steel Parliament Projection Hinge
  • #15 6" (152mm) Stainless Steel Parliament Projection Hinge
  • #15 6" (152mm) Stainless Steel Parliament Projection Hinge
  • #15 6" (152mm) Stainless Steel Parliament Projection Hinge
Suitable for FD30/FD60 Timber Fire Doors

Heavy Duty Stainless Steel Parliament Projection Hinge for Doors up to 80kg

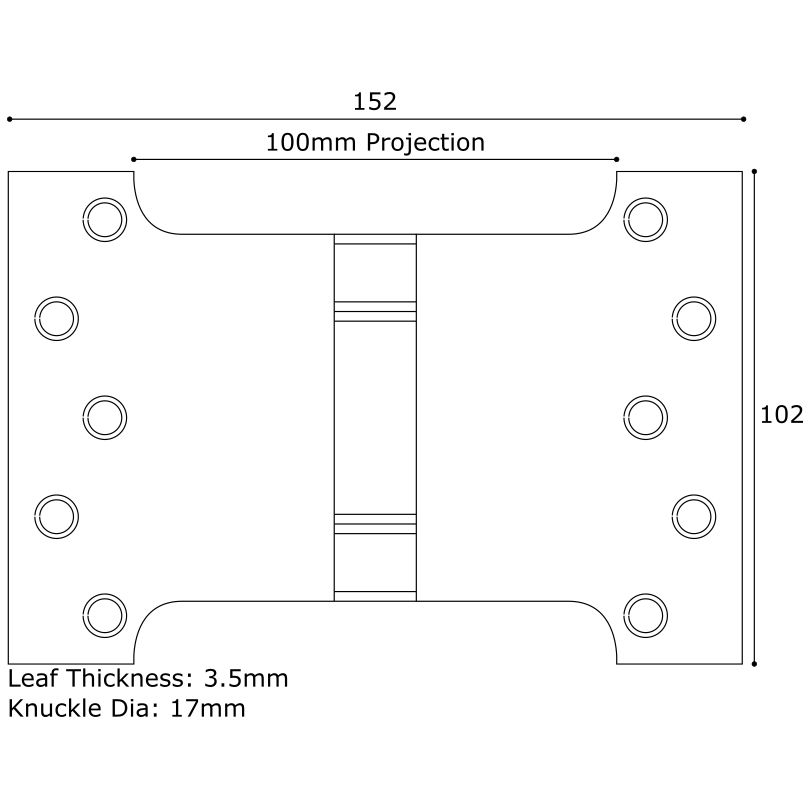

Dimensions: 102mm x 152mm x 3mm

Projection: 102mm

Priced per *SINGLE* hinge complete with fixing screws
Core Stock Product

Use the drop down menu above to select from the following quality finishes:
(Click on a finish image for more details)
Satin Stainless Steel Polished Stainless Steel Stainless Brass PVD

Parliament hinges are a traditional method of hanging doors that are required to clear obstructions when opening beyond 90. This heavy duty version will provide 102mm projection at 180 and is suitable for heavier doors up to 80kg. Fitted with thrust bearings for increased performance and resistance to wear, the hinge is CE/UKCE certified and fully compliant for use on FD30/FD60 fire rated timber door sets when used with appropriate [INTUMESCENT LINER PADS]

Manufactured from SUS201 Stainless Steel and available in three quality finishes - Satin Stainless Steel, Polished Stainless Steel, and Stainless Brass PVD.

**NOTE: These hinges are sold and priced per single hinge**

Supplied complete with countersunk pozi-drive wood screws in matching finish.

These hinges are suitable for FD30/FD60 rated doors weighing up to 80kg based on fitting 3 hinges. For full compliance on fire doors, these hinges MUST be fitted with appropriate intumescent liner pads behind the hinge leaves on both door and frame.

Detailed advice on the selection and specification of hinges for full height doors can be found [HERE]

Additional advice on selecting parliament hinges and projection hinges can be found in our [TECHNICAL GUIDE - PARLIAMENT & PROJECTION HINGES]

To keep these hinges in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Check hinges occassionaly for dirt and grease and wipe clean with an oil impregnated cloth.
