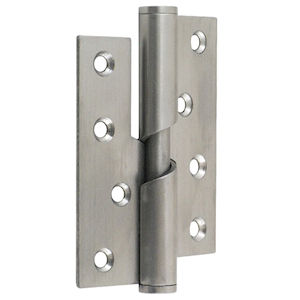

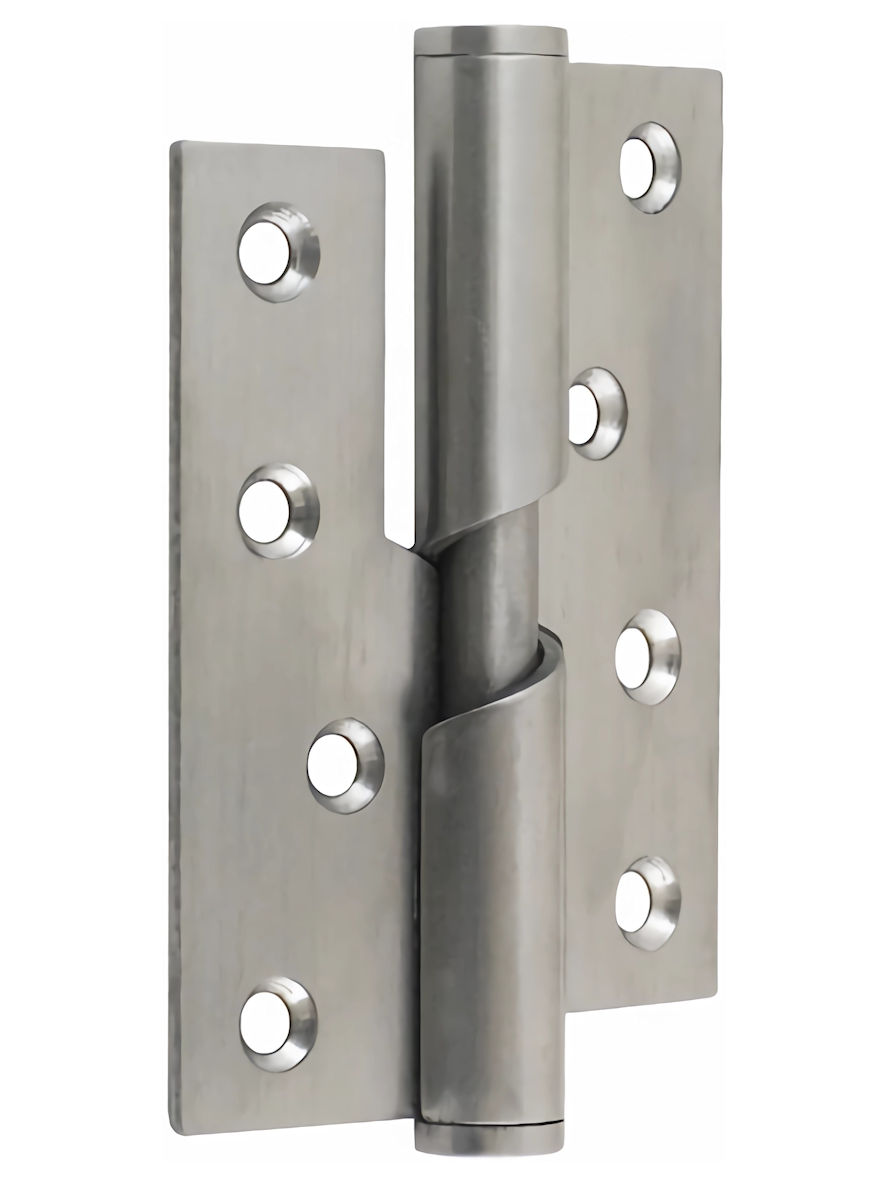

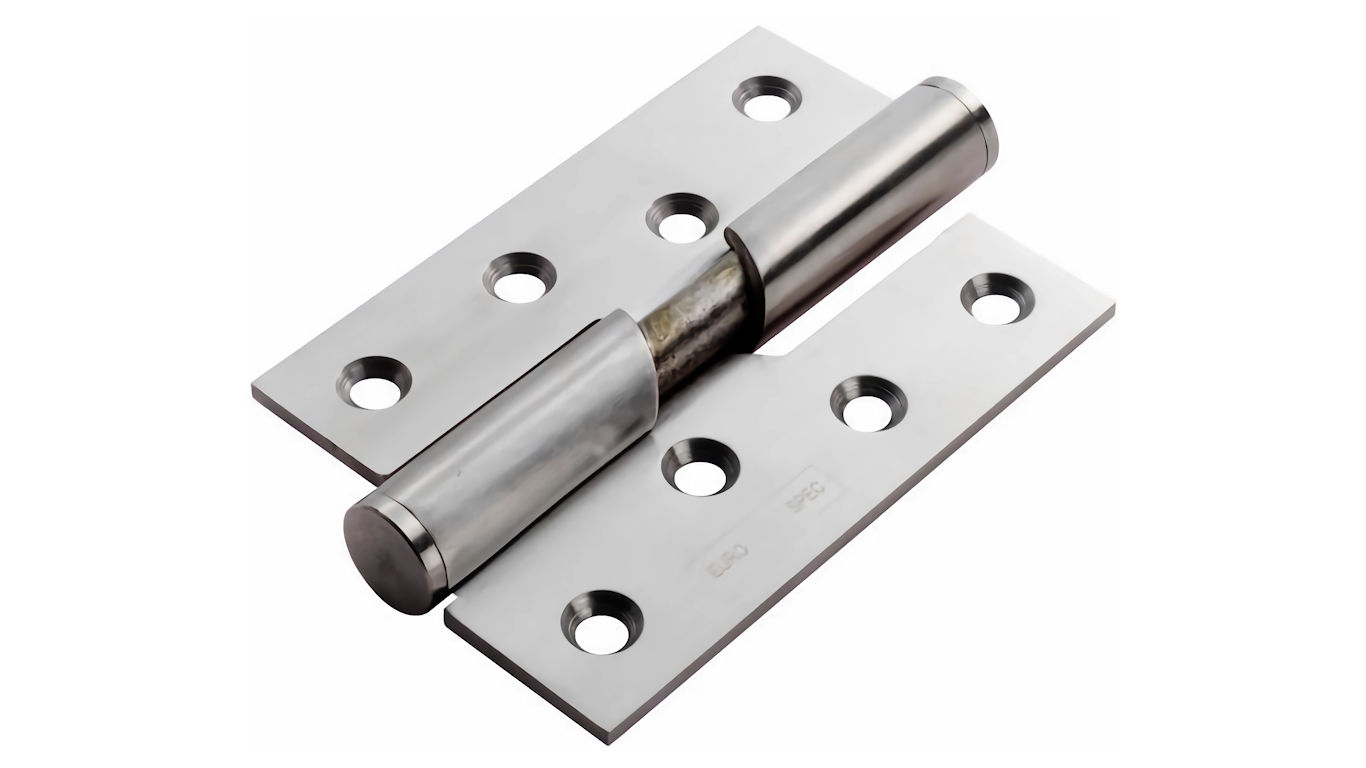

#01 4" (102mm) Stainless Steel Rising Butt Hinge

(Code: 1415-512-150LH)
Select Handing :
£ 17.41
(4 Item(s) In Stock)
Add to cart
#01 4" (102mm) Stainless Steel Rising Butt Hinge
  • #01 4" (102mm) Stainless Steel Rising Butt Hinge
  • #01 4" (102mm) Stainless Steel Rising Butt Hinge
  • #01 4" (102mm) Stainless Steel Rising Butt Hinge
  • #01 4" (102mm) Stainless Steel Rising Butt Hinge

Medium Duty Stainless Steel Rising Butt Hinge for Doors up to 30kg


Dimensions: 102mm x 76mm x 2.7mm

Lift at 180: 8mm

Priced per *PAIR* (2 hinges) complete with fixing screws
Core Stock Product

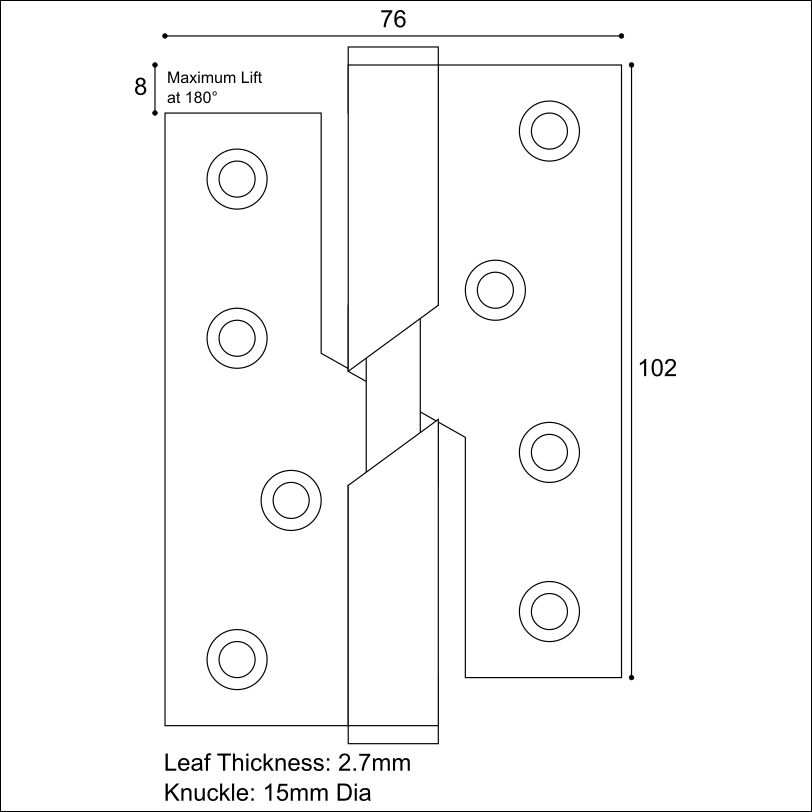

Rising Butt Hinges are handed LH or RH. Please refer to the relevant technical image and make your selection from the drop down list above.

(Click on the finish image for more details)
Satin Stainless Steel

Rising butt hinges are designed to lift doors slightly during the opening cycle to prevent damage to floor coverings & carpets etc. This quality Stainless Steel version features attractive button tipped knuckles for a modern look, a solid stainless steel pin for strength & durability & will raise the door by 8mm at 180.

Manufactured from SUS201 Stainless Steel and available from stock in Satin finish.

**These hinges are sold and priced per Pair (2 hinges)**

Supplied complete with countersunk pozi-drive wood screws in matching finish.

These hinges are suitable for doors weighing up to 30Kg in medium-use settings based on fitting 2 hinges.

Rising butt hinges are NOT designed to be door closing devices and are not recommended as such.

To keep these hinges in optimum working condition we recommend a once yearly application of axle or bearing grease. Check hinges occassionaly for dirt and wipe clean with an oil impregnated cloth.
