#05 Winkhaus Cobra Multi-Point Door Lock 45mm

(Code: 2602-212-CO)
Keep Set & Handing :
£ 92.68
(5 Item(s) In Stock)
Add to cart
#05 Winkhaus Cobra Multi-Point Door Lock 45mm
  • #05 Winkhaus Cobra Multi-Point Door Lock 45mm
  • #05 Winkhaus Cobra Multi-Point Door Lock 45mm

Winkhaus Cobra Two Hookbolt Multipoint Lock for Single Doors, Standard Height Variant with Cropable Square Ends, Lift-Lever Operation, 45mm Backset


- Priced per Single
- Lift-lever operation
- 45mm backset, 92mm centres
- Cropable faceplate for standard door heights
- Uptional keep sets
- Core Stock Product

Winkhaus Product Ref: 2947821

Secured by Design PAS 24 Enhanced Security High Security 10 Year Guarantee
Residential Use Commercial Use Industrial Use

The Cobra Lift-Lever Multipoint Lock is an ideal solution for single entrance doors and other external doors in domestic settings requiring a high security yet cost effective and versatile locking system. This Standard variant has a cropable, square ended faceplate and is suitable for normal height doors up to 2105mm.

Finished in corrosion resistant Silver and offered here in lock only format (without keep set) or as a complete kit with a choice of adjustable keep sets for standard door thicknesses and door handings.

Alternative keeps can be purchased via the relevant product link in the "Related Items" section below

  • Lift-Lever Operation:
    The central deadbolt and top/bottom hookbolts are thrown internally or externally by lifting the door lever handle. The door is then locked by operation of the lock cylinder barrel. Unlocking of the door is by reverse action. Depending on the requirement, lock cylinders can be key and turn type (external key/internal thumbturn), double cylinder (key both sides) or single cylinder (key one side only).
  • High Security:
    Cobra locks have been tested in all frame materials to PAS23/24 Enhanced Security standards and are approved by the Police 'Secured by Design’ Security initiative and by the Master Locksmith Association’s Sold Secure Scheme.
  • 25mm Throw Solid Brass Cobra Hooks:
    High security solid forged brass and nickel plated anti ‘push-back’ Cobra hooks locate behind the steel keeps for optimum security and help prevent forcing apart of the door and frame.
  • High Performance Central Gearbox:
    Tested to 100,000 cycles the sprung gearbox offers the lowest possible operating forces and helps prevent handle droop. Nickel plated sprung latchbolt and 20mm throw nickel steel deadbolt provide maximum strength in the centre of the door.
  • Corrosion Resistant:
    Winkhaus locks have a protective surface coating in excess of EN 1670 : 2007 Grade 4 which is designated as ‘Very high corrosion resistance’
  • Weather Seal Compression Adjustment:
    Enhanced tapered hook design and adjustment in the keeps provides low operating forces. With ± 2mm adjustment it is possible to adjust for misalignment of the door during and after installation.

This lock is site reversible to suit left hand or right hand applications. However, keep sets are handed Left Hand or Right Hand and care must be taken to specify the correct hand when ordering.

For optimum security this lock should be fitted with a TS 007 3 Star cylinder (see our ULTION Maximum Security range) or a TS 007 1 Star cylinder with 2 Star cylinder guard (see our Adapta Prime High Security range).

Lever handle furniture MUST be of a type that allows the handle to be lifted. Handle backplates should be compatible with the lock centres measurement and fixing centres measurements. Please refer to the relevant technical drawings.

One Winkhaus Cobra Standard Variant multipoint lock as described including optional three part adjustable keep set if required.

This multipoint lock set is stocked in component parts in quantities normally sufficient to fulfill most orders for immediate despatch. Where we are temporarily out of stock you should allow approximately 10 - 14 working days for despatch. Please contact us if you would like to know the stock situation prior to placing your order.

[Manufacturer's Brochure]
Cobra Hookbolt Multipoint Lock System
[Cobra Standard Variant]

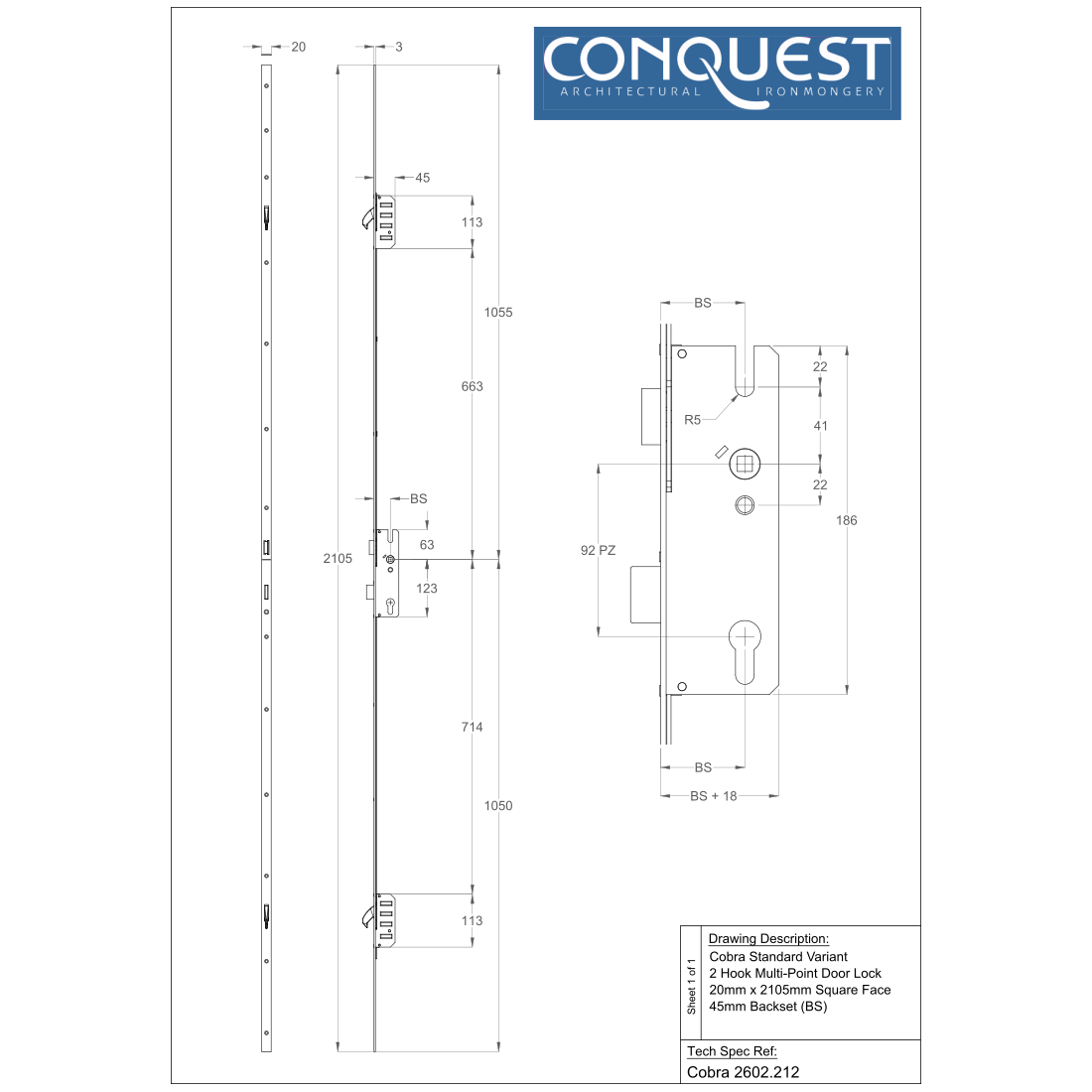

Dimensional drawing of Cobra Standard 2 Hook Multipoint Lock with Square Faceplate
[22mm Keep Set CT2.22]
3 part Keep Set for locks fitted on a 22mm centre line (44mm door thickness)
[28mm Keep Set CT2.28]
3 part Keep Set for locks fitted on a 28mm centre line (56mm door thickness)
