#01 Winkhaus Multi-Point Stable Door Lock Upper Section

(Code: 2604-132)
Shopping Satisfaction
£ 50.32
(2 Item(s) In Stock)
Add to cart
#01 Winkhaus Multi-Point Stable Door Lock Upper Section
  • #01 Winkhaus Multi-Point Stable Door Lock Upper Section
  • #01 Winkhaus Multi-Point Stable Door Lock Upper Section
  • #01 Winkhaus Multi-Point Stable Door Lock Upper Section

Winkhaus Multipoint Lock for Stable Doors, Upper Section with Lift-Lever Operation, 45mm Backset

- Priced per Single
- Lift-lever operation upper section
- 45mm backset, 92mm centres
- Core Stock Product

Winkhaus Product Ref: 4966588

High Security 10 Year Guarantee
Residential Use Commercial Use Industrial Use

The Winkhaus Stable Door Lock is a purpose made locking system with two separate locks that has been developed using the proven features and characteristics of the Cobra Hookbolt system. The lock allows convential use of the door when all hooks are retracted and the upper and lower door sections are bolted together. Releasing the bolt allows the upper section to be opened independently.

This product is the upper section only with lift-lever operation. Supplied here in lock only format excluding strikeplates and keeps. Individual strikes and keeps can be purchased via the relevant product link in the "Related Items" section below.

  • Lift-Lever Operation Upper Door Section:
    The deadbolt and top hookbolt are thrown internally or externally by lifting the door lever handle. The bolts are then locked by operation of the lock cylinder barrel. Unlocking of the door is by reverse action.
  • High Security:
    Cobra locks have been tested in all frame materials to PAS23/24 Enhanced Security standards and are approved by the Police 'Secured by Design’ Security initiative and by the Master Locksmith Association’s Sold Secure Scheme.
  • 25mm Throw Solid Brass Cobra Hooks:
    High security solid forged brass and nickel plated anti ‘push-back’ Cobra hooks locate behind the steel keeps for optimum security and help prevent forcing apart of the door and frame.
  • High Performance Central Gearbox:
    Tested to 100,000 cycles the sprung gearbox offers the lowest possible operating forces and helps prevent handle droop. Nickel plated sprung latchbolt and 20mm throw nickel steel deadbolt provide maximum strength in the centre of the door.
  • Corrosion Resistant:
    Winkhaus locks have a protective surface coating in excess of EN 1670 : 2007 Grade 4 which is designated as ‘Very high corrosion resistance’
  • Weather Seal Compression Adjustment:
    Enhanced tapered hook design and adjustment in the keeps provides low operating forces. With ± 2mm adjustment it is possible to adjust for misalignment of the door during and after installation.

For optimum security this lock should be fitted with a TS 007 3 Star cylinder (see our ULTION Maximum Security range) or a TS 007 1 Star cylinder with 2 Star cylinder guard (see our Adapta Prime High Security range). Depending on the requirement, lock cylinders can be key and turn type (external key/internal thumbturn), double cylinder (key both sides) or single cylinder (key one side only).

Lever handle furniture MUST be of a type that allows the handle to be lifted. Handle backplates should be compatible with the lock centres measurement and fixing centres measurements. Please refer to the relevant technical drawings.

One Winkhaus Stable Door Lock - Upper section only as described. Strikeplates and keeps should be ordered seperately if required.

This multipoint lock is normally available from stock. If we are temporarily out of stock you should allow 10 - 14 working days for despatch.

[Manufacturer's Brochure]
Winkhaus Stable Door Multipoint Lock System
[Stable Door Lock Upper Section]

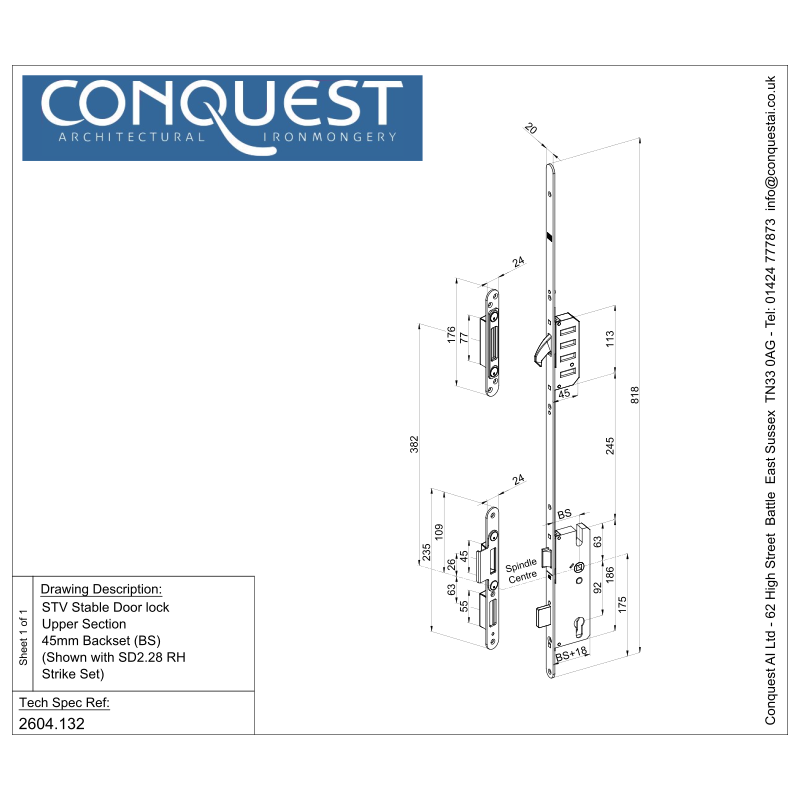

Dimensional drawing of Winkhaus 2 Part Stable Door Lock Upper Section Only
[Stable Door Lock Routing]
Routing Detail for Winkhaus 2 Part Stable Door Lock
