#06 Winkhaus FGTE Multi-Point Slave Door Lock 45mm

(Code: 2605-719-19L)
Centre Line & Handing :
£ 131.22
(3 Item(s) In Stock)
Add to cart
#06 Winkhaus FGTE Multi-Point Slave Door Lock 45mm
  • #06 Winkhaus FGTE Multi-Point Slave Door Lock 45mm
  • #06 Winkhaus FGTE Multi-Point Slave Door Lock 45mm

Winkhaus FGTE Multipoint Slave Door Lock for Double Door Systems, Lift-Lever Operation, 45mm Backset, 19mm Centre Line

- Priced per Single
- For use with Cobra or Thunderbolt master door locks
- Accepts FGTE top & bottom shoot bolts
- Lift-lever operation
- 45mm backset, 92mm centres
- 19mm lock centre line
- Core Stock Product

Winkhaus Product Ref: 5014038 19mm LH, 5014037 19mm RH

Secured by Design PAS 24 Enhanced Security High Security 10 Year Guarantee
Residential Use Commercial Use Industrial Use

The Winkhaus FGTE Slave Door Lock is designed for fitting to the second opening leaf of double doors as part of a full FGTE twin handle system. Top and bottom shootbolts (supplied separately) are fitted to the lock to provide locking points at the head and cill. The slave lock faceplate has adjustable apertures to accept the corresponding bolts of the Cobra or Thunderbolt lock on the master door.

Supplied here in lock only format excluding shootbolts. Shootbolts can be purchased via the relevant product link in the "Related Items" section below.

  • Slave Door Lock Operation:
    The top and bottom vertical shootbolts are thrown by lifting the door lever handle. The bolts are then locked by operation of the lock cylinder barrel. Unlocking and retraction of the bolts is by reverse action.
  • High Security:
    FGTE locks have been tested in all frame materials to PAS23/24 Enhanced Security standards and are approved by the Police 'Secured by Design’ Security initiative and by the Master Locksmith Association’s Sold Secure Scheme.
  • High Performance Central Gearbox:
    Tested to 100,000 cycles the sprung gearbox offers the lowest possible operating forces and helps prevent handle droop. Nickel plated sprung latchbolt and 20mm throw nickel steel deadbolt provide maximum strength in the centre of the door.
  • Corrosion Resistant:
    Winkhaus locks have a protective surface coating in excess of EN 1670 : 2007 Grade 4 which is designated as ‘Very high corrosion resistance’
  • Weather Seal Compression Adjustment:
    Enhanced bolt design and adjustment in the keeps provides low operating forces. With ± 2mm adjustment it is possible to adjust for misalignment of the door during and after installation.

This lock is handed Left Hand or Right Hand and care must be taken to specify the correct hand when ordering.

For optimum security this lock should be fitted with TS 007 3 Star cylinders (see our ULTION Maximum Security range) or TS 007 1 Star cylinders with 2 Star cylinder guard (see our Adapta Prime High Security range). We recommend master and slave door cylinders are Keyed Alike.

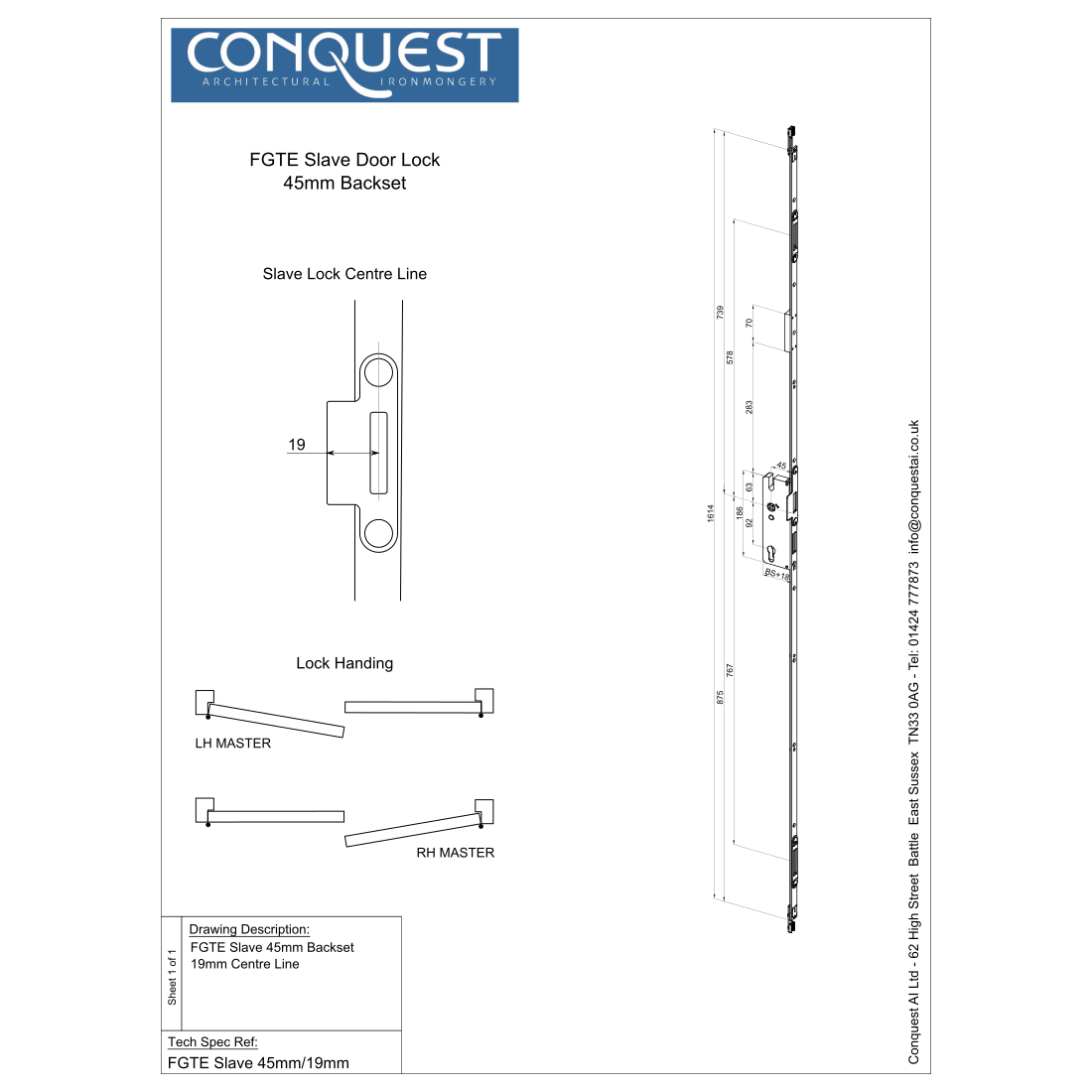

Lever handle furniture MUST be of a type that allows the handle to be lifted. Handle backplates should be compatible with the lock centres measurement and fixing centres measurements. Please refer to the relevant technical drawings.

One Winkhaus FGTE Slave Door Lock only. Shootbolts and keeps should be ordered separately if required.

This multipoint lock is stocked in quantities normally sufficient to fulfill most orders for immediate despatch. Where we are temporarily out of stock you should allow approximately 10 - 14 working days for despatch. Please contact us if you would like to know the stock situation prior to placing your order.

[Manufacturer's Brochure]
FGTE Double Door Multipoint Lock System
