#05 Winkhaus Thunderbolt Multi-Point Door Lock Heritage

(Code: 2601-522-CO)
Keep Set & Handing :
£ 101.82
(4 Item(s) In Stock)
Add to cart
#05 Winkhaus Thunderbolt Multi-Point Door Lock Heritage
  • #05 Winkhaus Thunderbolt Multi-Point Door Lock Heritage
  • #05 Winkhaus Thunderbolt Multi-Point Door Lock Heritage
  • #05 Winkhaus Thunderbolt Multi-Point Door Lock Heritage
  • #05 Winkhaus Thunderbolt Multi-Point Door Lock Heritage

Winkhaus Thunderbolt Twin-Deadbolt Multipoint Lock for Single Doors, Heritage Variant with Radius Ends, Key Turn Operation, 45mm Backset


- Priced per Single
- Key/thumbturn operation, no lever handles required
- Heritage variant with raised central gearbox
- 45mm backset, 92mm centres
- Optional keep sets
- Core Stock Product

Winkhaus Product Ref: 5016483

Secured by Design PAS 24 Enhanced Security High Security 10 Year Guarantee
Residential Use Commercial Use Industrial Use

The Thunderbolt KTA Multipoint Lock is an ideal solution for single entrance doors and other external doors in domestic settings requiring a high security yet cost effective and versatile locking system and has been especially designed with increased tolerances for door installers. The Heritage variant is a Key Turn Activated Locking System which houses the euro profle lock cylinder at a similar height to a traditional nightlach giving both the fabricator and the consumer a secure solution that adds visual value and style to the door.

Finished in corrosion resistant Silver and offered here in lock only format (without keep set) or as a complete kit with a choice of adjustable keep sets for standard door thicknesses and door handings.

Alternative keeps can be purchased via the relevant product link in the "Related Items" section below

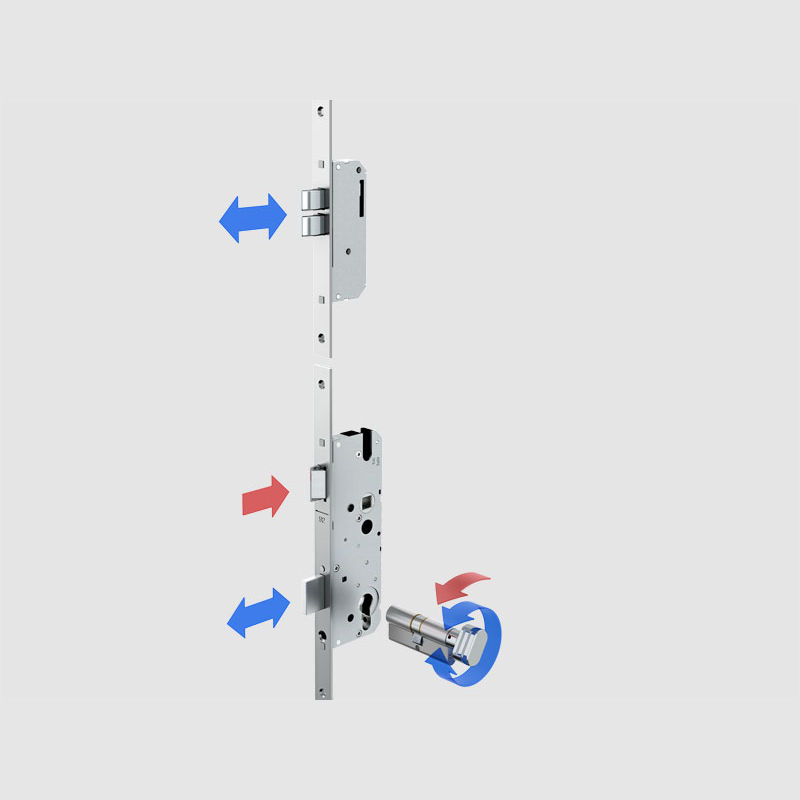

  • Key/Thumbturn Operation:
    All bolts are thrown and retracted by operation of the lock cylinder barrel thus negating the need for lever handle furniture. Depending on the requirement, lock cylinders can be key and turn type (external key/internal thumbturn), double cylinder (key both sides) or single cylinder (key one side only).
  • High Security:
    Thunderbolt locks have been tested in all frame materials to PAS23/24 Enhanced Security standards and are approved by the Police 'Secured by Design’ Security initiative and by the Master Locksmith Association’s Sold Secure Scheme.
  • 20mm Throw Nickel Plated Twin Deadbolts:
    The specially designed twin deadbolts are chamfered to allow a high degree of fitting tolerence for door installation. In addition, the deadbolt shape provides low operating forces and helps doors achieve a higher level of weather performance.
  • High Performance Central Gearbox:
    Tested to 100,000 cycles the sprung gearbox offers the lowest possible operating forces and helps prevent handle droop. Nickel plated sprung latchbolt and 20mm throw nickel steel deadbolt provide maximum strength in the centre of the door.
  • Corrosion Resistant:
    Winkhaus locks have a protective surface coating in excess of EN 1670 : 2007 Grade 4 which is designated as ‘Very high corrosion resistance’
  • Weather Seal Compression Adjustment:
    Enhanced bolt design and adjustment in the keeps provides low operating forces. With ± 2mm adjustment it is possible to adjust for misalignment of the door during and after installation.

This lock is site reversible to suit left hand or right hand applications. However, keep sets are handed Left Hand or Right Hand and care must be taken to specify the correct hand when ordering.

For optimum security this lock should be fitted with a TS 007 3 Star cylinder (see our ULTION Maximum Security range) or a TS 007 1 Star cylinder with 2 Star cylinder guard (see our Adapta Prime High Security range).

One Thunderbolt KTA Heritage Variant multipoint lock as described including optional three part adjustable keep set if required.

This multipoint lock set is stocked in component parts in quantities normally sufficient to fulfill most orders for immediate despatch. Where we are temporarily out of stock you should allow approximately 10 - 14 working days for despatch. Please contact us if you would like to know the stock situation prior to placing your order.

[Manufacturer's Brochure]
Thunderbolt Heritage Twin Deadbolt Multipoint Lock System
[Thunderbolt Heritage Variant]
Routing Detail for Thunderbolt Heritage Twin Deadbolt Multipoint Lock with Radius Faceplate
[22mm Keep Set CT2.22]
3 part Keep Set for locks fitted on a 22mm centre line (44mm door thickness)
[28mm Keep Set CT2.28]
3 part Keep Set for locks fitted on a 28mm centre line (56mm door thickness)
