#02 Winkhaus AV2 Automatic Multi-Point Door Lock 45mm

(Code: 2603-222-COL)
Keep Set & Handing :
£ 134.98
(2 Item(s) In Stock)
Add to cart
#02 Winkhaus AV2 Automatic Multi-Point Door Lock 45mm
  • #02 Winkhaus AV2 Automatic Multi-Point Door Lock 45mm
  • #02 Winkhaus AV2 Automatic Multi-Point Door Lock 45mm
  • #02 Winkhaus AV2 Automatic Multi-Point Door Lock 45mm
  • #02 Winkhaus AV2 Automatic Multi-Point Door Lock 45mm

Winkhaus AV2 Automatic Hookbolt Multipoint Lock for Single Doors, Standard Height Variant with Cropable Square Ends, Key Turn Operation

- Priced per Single
- Locks automatically as the door is closed
- Key/thumbturn operation, no lever handles required
- 45mm backset, 92mm centres
- Cropable faceplate for standard door heights
- Optional keep sets
- Core Stock Product

Winkhaus Product Ref: 2352739 LH & 2352691 RH

Secured by Design PAS 24 Enhanced Security High Security 10 Year Guarantee
Residential Use Commercial Use Industrial Use

The AV2 Multipoint Lock system is an ideal solution for single entrance doors and other external doors in domestic settings that require automatic locking. An excellent choice for doors where lever handles are either not required or are of a type that are not suitable for lift-lever operated locks. This Standard variant has a cropable, square ended faceplate and is suitable for normal height doors up to 2105mm.

Finished in corrosion resistant Silver and offered here in lock only format (without keep set) or as a complete kit with a choice of adjustable keep sets for standard door thicknesses and door handings.

Alternative keeps can be purchased via the relevant product link in the "Related Items" section below.

  • Automatic Locking:
    When the door is closed, automatic locking takes place with 2 high tensile steel hooks engaging in to the frame keeps without the need to lift a handle.
  • Cylinder Only or Lever & Cylinder Operation:
    When automatically locked, the AV2 lock can be additionally deadlocked by operation of the lock cylinder barrel. Upon exit, the cylinder is used to retract all of the main bolts plus the central sprung latchbolt thus negating the need for lever handle furniture. Depending on the requirement, lock cylinders can be key and turn type (external key/internal thumbturn), double cylinder (key both sides) or single cylinder (key one side only). Alternatively, a half set of lever handle furniture can be fitted internally to retract the hookbolts and latchbolt with the cylinder being used to throw and retract the central deadbolt. Fitting a full set of lever handles will require cylinder operation of the central deadbolt to deadlock the door.
  • High Security:
    AV2 locks have been tested in all frame materials to PAS23/24 Enhanced Security standards and are approved by the Police 'Secured by Design’ Security initiative and by the Master Locksmith Association’s Sold Secure Scheme.
  • 25mm Throw Solid Brass Cobra Hooks:
    High security solid forged brass and nickel plated anti ‘push-back’ hooks automatically locate behind the steel keeps for optimum security and help prevent forcing apart of the door and frame.
  • High Performance Central Gearbox:
    Tested to 100,000 cycles the sprung gearbox offers the lowest possible operating forces and helps prevent handle droop. Nickel plated sprung latch with 20mm throw nickel steel deadbolt provide maximum strength in the centre of the door.
  • Corrossion Resistant:
    Winkhaus locks have a protective surface coating in excess of EN 1670 : 2007 Grade 4 which is designated as ‘Very high corrosion resistance’.
  • Weather seal compression adjustment:
    Enhanced tapered hook design and adjustment in the keeps provides low operating forces. With ± 2mm adjustment it is possible to adjust for misalignment of the door during and after installation.

AV2 locks and keep sets are handed Left Hand or Right Hand and care must be taken to specify the correct hand when ordering.

For optimum security this lock should be fitted with a TS 007 3 Star cylinder (see our ULTION Maximum Security range) or a TS 007 1 Star cylinder with 2 Star cylinder guard (see our Adapta Prime High Security range).

If required, lever handle furniture can be self-sprung or unsprung either on backplate or on rose with seperate cylinder escutcheons. Handle backplates should be compatible with the lock centres measurement and fixing centres measurements. Please refer to the relevant technical drawings.

One Winkhaus AV2 Automatic Standard Variant multipoint lock as described including optional three part adjustable keep set if required.

This multipoint lock set is stocked in component parts in quantities normally sufficient to fulfill most orders for immediate despatch. Where we are temporarily out of stock you should allow approximately 10 - 14 working days for despatch. Please contact us if you would like to know the stock situation prior to placing your order.

[Manufacturer's Brochure]
AV2 Automatic Multipoint Lock System
[AV2 Standard Variant]

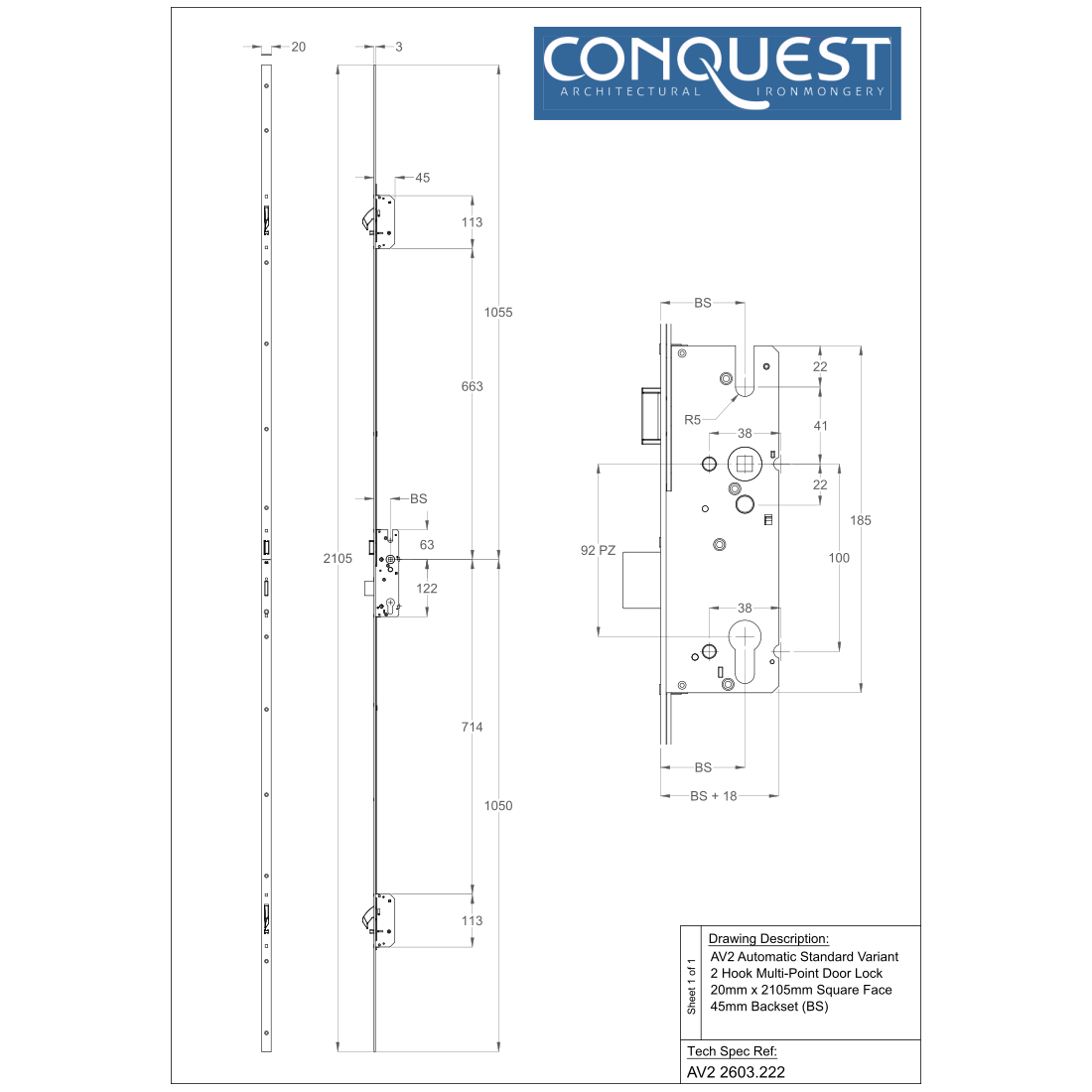

Dimensional drawing of AV2 Automatic Standard 2 Hook Multipoint Lock with Square Faceplate
[22mm Keep Set AV2.22]
3 part Keep Set for locks fitted on a 22mm centre line (44mm door thickness)
[28mm Keep Set AV2.28]
3 part Keep Set for locks fitted on a 28mm centre line (56mm door thickness)
