#03 Winkhaus FGTE Cobra Multi-Point Double Door Lock 35mm PAS24

(Code: 2602-611PAS-SL22)
Door Height :
CENTRE LINE & HANDING :
£ 254.71
Available at Supplier
Available in 10 days
Add to cart
#03 Winkhaus FGTE Cobra Multi-Point Double Door Lock 35mm PAS24
  • #03 Winkhaus FGTE Cobra Multi-Point Double Door Lock 35mm PAS24
  • #03 Winkhaus FGTE Cobra Multi-Point Double Door Lock 35mm PAS24
  • #03 Winkhaus FGTE Cobra Multi-Point Double Door Lock 35mm PAS24
  • #03 Winkhaus FGTE Cobra Multi-Point Double Door Lock 35mm PAS24

Winkhaus FGTE Cobra Two Hookbolt Multipoint Lock for Double Doors, Full PAS24 Specification, Shootbolts to Slave Leaf Only, Lift-Lever Operation to Both Leaves, 35mm Backset


- Priced per Set complete with shootbolts & keeps
- Vertical shootbolts to slave leaf
- Lift-lever operation to both leaves
- Full PAS24 Enhanced Security specification
- 35mm backset, 92mm centres
- Door height variants from 1954mm to 3061mm*
- Core Stock Product

Secured by Design PAS 24 Enhanced Security High Security 10 Year Guarantee
Residential Use Commercial Use Industrial Use

The Winkhaus FGTE Cobra Multipoint Lock System is a twin handle solution for double doors and is ideal for inward or outward opening entrance doors and other external doors in domestic settings requiring a high security yet cost effective and versatile locking system. The Cobra lock on the master door has two high tensile steel hookbolts locking directly into the slave lock which has 8mm square tri-laminate shootbolts that locate into fully adjustable steel keeps at the head and cill. The versatility of the FGTE system allows for it's use on a range of door heights and for alternative handle height positions - please refer to the 'Door/Handle Height" tab.

Finished in corrosion resistant Silver and supplied here as a complete set with top/bottom shoots and keeps. Individual component parts can be purchased via the relevant product link in the "Related Items" section below.

  • Slave Door Lock Operation:
    The top and bottom vertical shootbolts are thrown by lifting the door lever handle. The bolts are then locked by operation of the lock cylinder barrel. Unlocking and retraction of the bolts is by reverse action.
  • Master Door Lock Operation:
    The central deadbolt and top/bottom hookbolts are thrown internally or externally by lifting the door lever handle. The door is then locked by operation of the lock cylinder barrel. Unlocking and retraction of the bolts is by reverse action.
  • High Security:
    Cobra locks have been tested in all frame materials to PAS23/24 Enhanced Security standards and are approved by the Police 'Secured by Design’ Security initiative and by the Master Locksmith Association’s Sold Secure Scheme.
  • 25mm Throw Solid Steel Hooks:
    High security high tensile steel and nickel plated anti ‘push-back’ Cobra hooks locate behind the steel keeps for optimum security and help prevent forcing apart of the door and frame.
  • High Performance Central Gearbox:
    Tested to 100,000 cycles the sprung gearbox offers the lowest possible operating forces and helps prevent handle droop. Nickel plated sprung latchbolt and 20mm throw nickel steel deadbolt provide maximum strength in the centre of the door.
  • Corrosion Resistant:
    Winkhaus locks have a protective surface coating in excess of EN 1670 : 2007 Grade 4 which is designated as ‘Very high corrosion resistance’
  • Weather Seal Compression Adjustment:
    Enhanced bolt design and adjustment in the keeps provides low operating forces. With ± 2mm adjustment it is possible to adjust for misalignment of the door during and after installation.

The FGTE Cobra system uses cropable top and bottom shootbolts to allow adjustment of both the door height and handle height measurements. Door height measurements in the drop down options list are shown from the minimum (with the top bolt being fully cropped) to the maximum (with the top bolt uncropped). In all cases, the handle height measurement is set at 1050mm with the bottom shootbolt cropped to 175mm.

This lock set is handed Left Hand or Right Hand and care must be taken to specify the correct hand when ordering.

For optimum security this lock set should be fitted with TS 007 3 Star cylinders (see our ULTION Maximum Security range) or TS 007 1 Star cylinders with 2 Star cylinder guard (see our Adapta Prime High Security range). We recommend master and slave door cylinders are Keyed Alike.

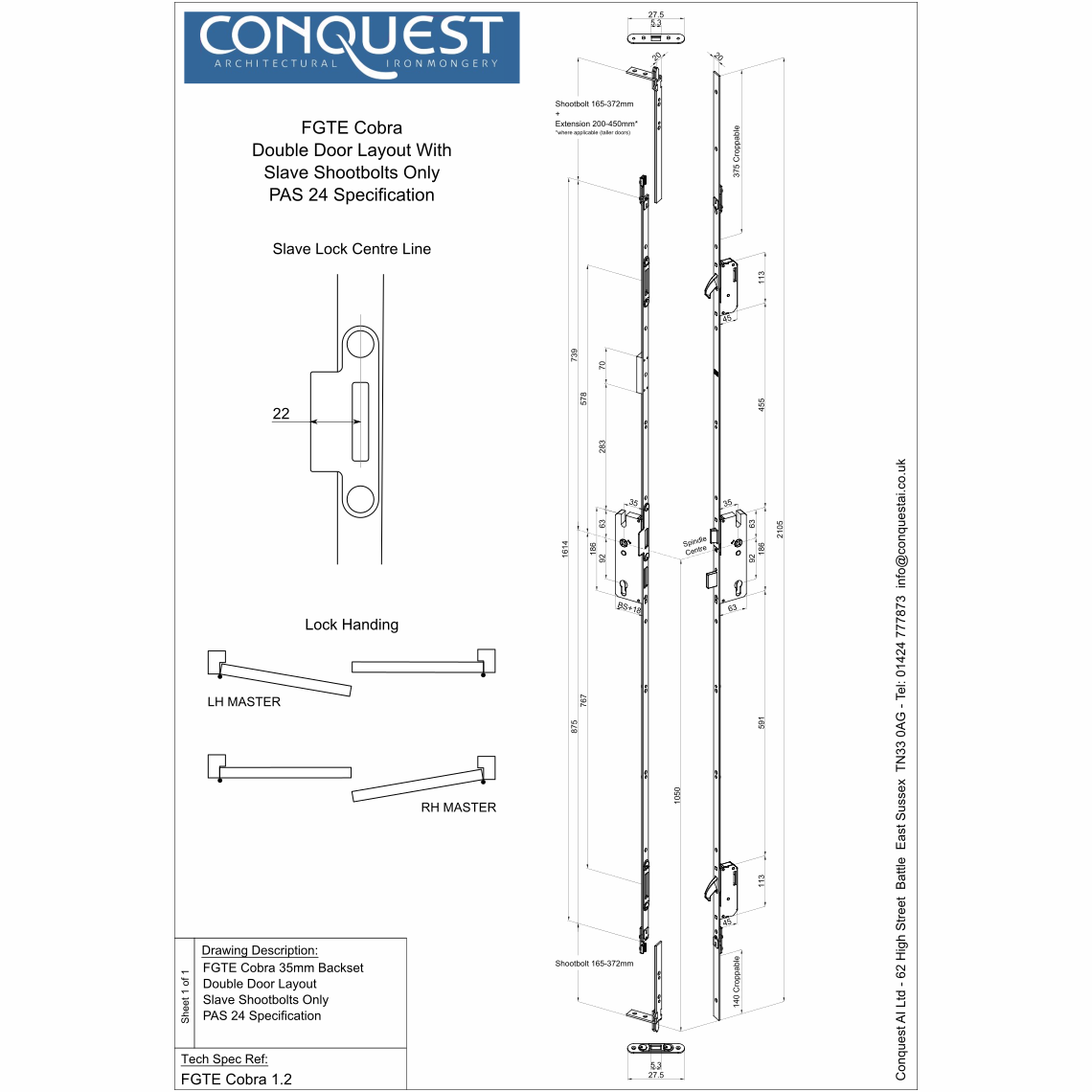

Lever handle furniture MUST be of a type that allows the handle to be lifted. Handle backplates should be compatible with the lock centres measurement and fixing centres measurements. Please refer to the relevant technical drawings.

One Winkhaus FGTE Cobra double door multipoint lock set as described complete with master door lock, slave door lock, top/bottom shootbolts and shootbolt keeps.

This multipoint lock set is stocked in component parts in quantities normally sufficient to fulfill most orders for immediate despatch. Where we are temporarily out of stock you should allow approximately 10 - 14 working days for despatch. Please contact us if you would like to know the stock situation prior to placing your order.

[Manufacturer's Brochure]
FGTE Double Door Multipoint Lock System
