The Winkhaus FGTE Cobra Multipoint Lock System is a twin handle solution for double doors and is ideal for inward or outward opening entrance doors and other external doors in domestic settings requiring a high security yet cost effective and versatile locking system. The Cobra lock on the master door has two high tensile steel hookbolts locking directly into the slave lock. Both slave and master door locks have 8mm square tri-laminate shootbolts that locate into fully adjustable steel keeps at the head and cill. The versatility of the FGTE system allows for it's use on a range of door heights and for alternative handle height positions - please refer to the 'Door/Handle Height" tab.
Finished in corrosion resistant Silver and offered with a choice of slave lock centre line positions and door handings. Individual parts can be found in the 'Component Parts for Multipoint Locks' store section.
The FGTE Cobra system uses cropable top and bottom shootbolts to allow adjustment of both the door height and handle height measurements. Door height measurements in the drop down options list are shown from the minimum (with the top bolt being fully cropped) to the maximum (with the top bolt uncropped). In all cases, the handle height measurement is set at 1050mm (with the bottom bolt uncropped).
Shorter doors and lower handle heights can be accomodated by cropping the bottom shootbolt by up to 73mm (giving a handle height of 977mm). Obviously, maximum door heights decrease proportionally when decreasing the handle height.
This lock set is handed Left Hand or Right Hand and care must be taken to specify the correct hand when ordering.
For optimum security this lock set should be fitted with TS 007 3 Star cylinders (see our ULTION Maximum Security range) or TS 007 1 Star cylinders with 2 Star cylinder guard (see our Adapta Prime High Security range). We recommend master and slave door cylinders are Keyed Alike.

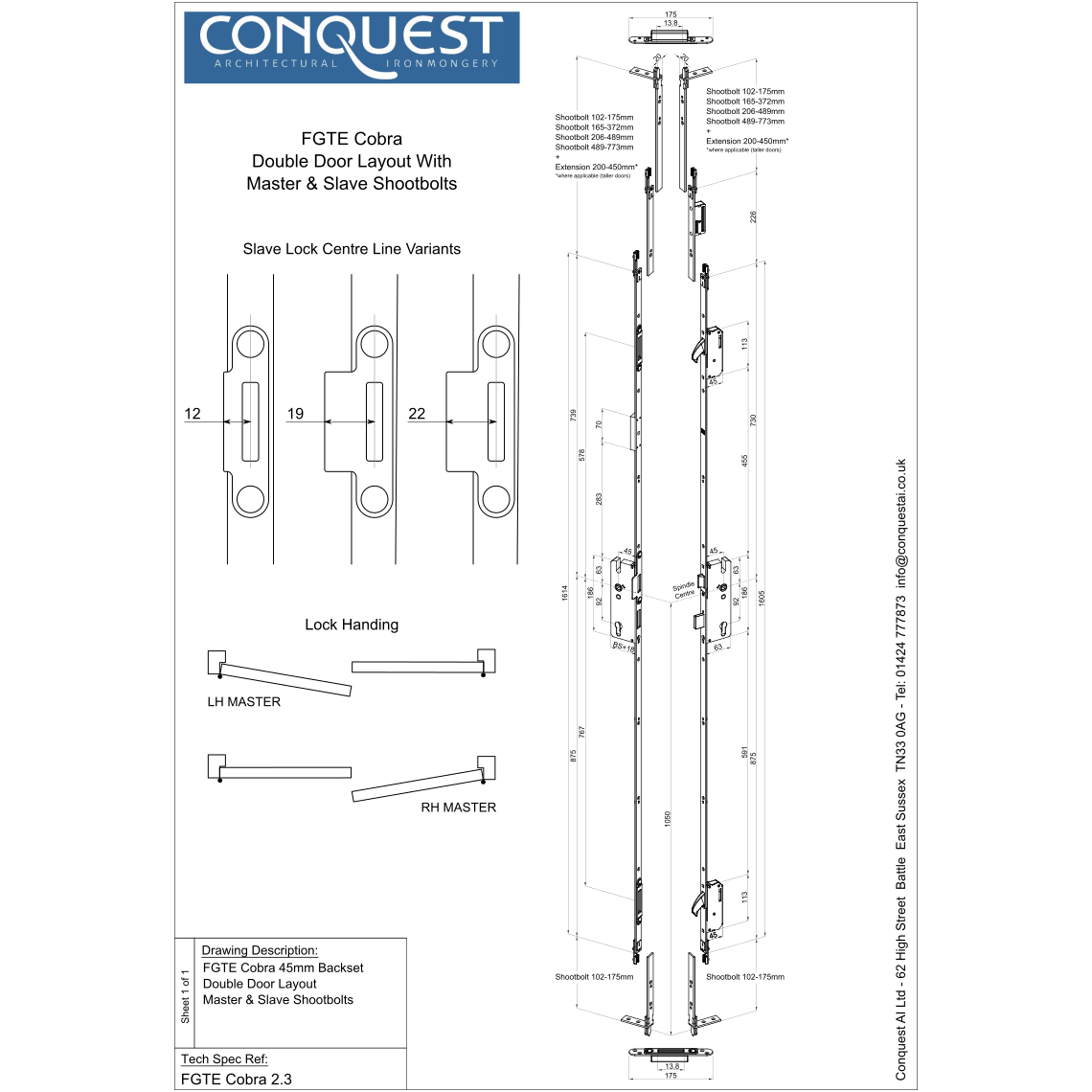

Lever handle furniture MUST be of a type that allows the handle to be lifted. Handle backplates should be compatible with the lock centres measurement and fixing centres measurements. Please refer to the relevant technical drawings.
One Winkhaus FGTE Cobra double door multipoint lock set as described complete with master door lock, slave door lock, top/bottom shootbolts and shootbolt keeps.
This multipoint lock set is stocked in component parts in quantities normally sufficient to fulfill most orders for immediate despatch. Where we are temporarily out of stock you should allow approximately 10 - 14 working days for despatch. Please contact us if you would like to know the stock situation prior to placing your order.
