The Winkhaus Stable Door Lock is a purpose made locking system with two separate locks that has been developed using the proven features and characteristics of the Cobra Hookbolt system. The lock allows convential use of the door when all hooks are retracted and the upper and lower door sections are bolted together. Releasing the bolt allows the upper section to be opened independently.
Finished in corrosion resistant Silver and offered here as a complete kit with a choice of adjustable keep sets for standard door thicknesses and door handings
The top and bottom lock part only (without keep set) and/or alternative keeps can be purchased via the relevant product link in the "Related Items" section below.

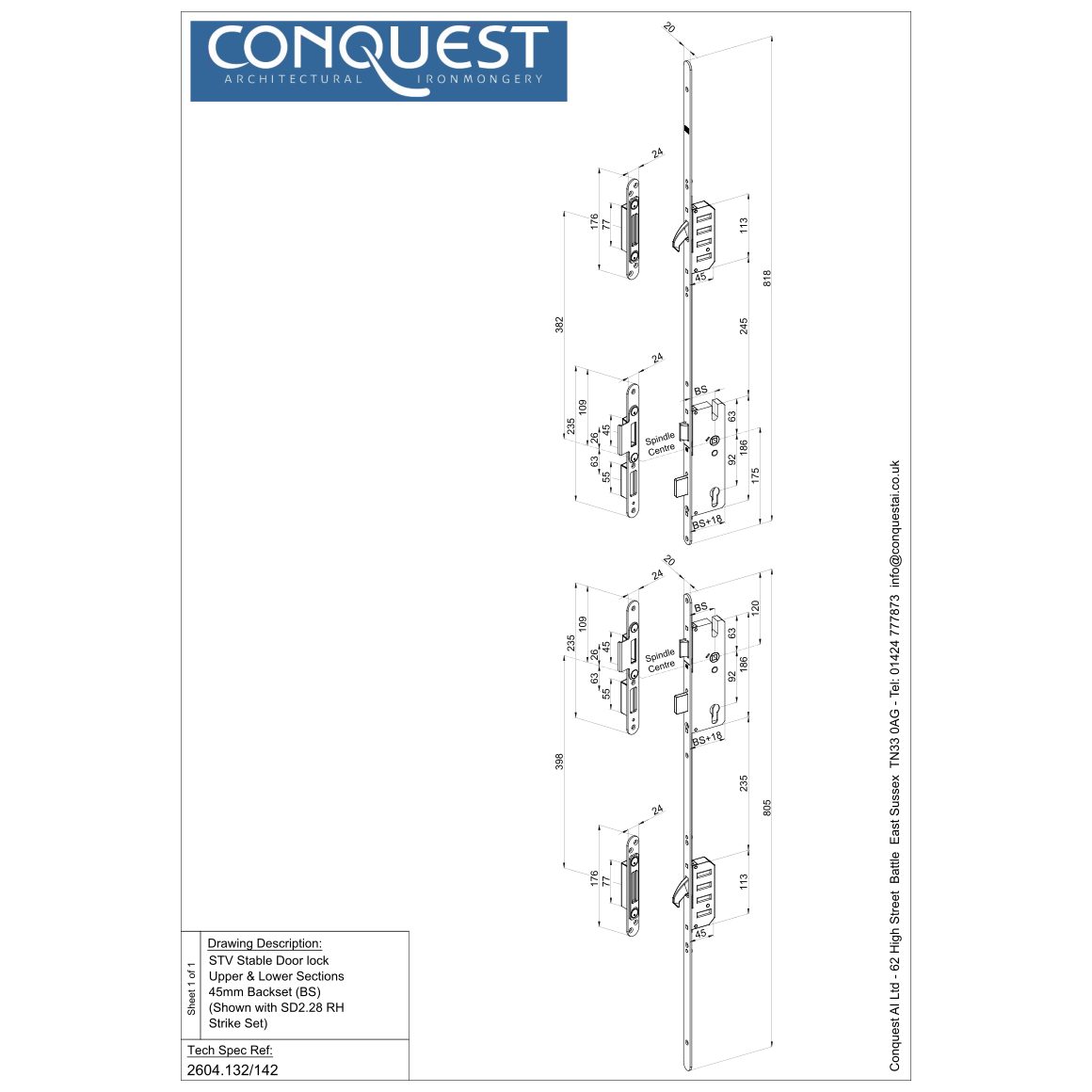

Please Note: This listing is for the upper and lower lock parts and keeps only as shown in the technical drawings. Lock cylinders, handles, escutcheons and connecting bolt are NOT included and should be ordered separately if required.

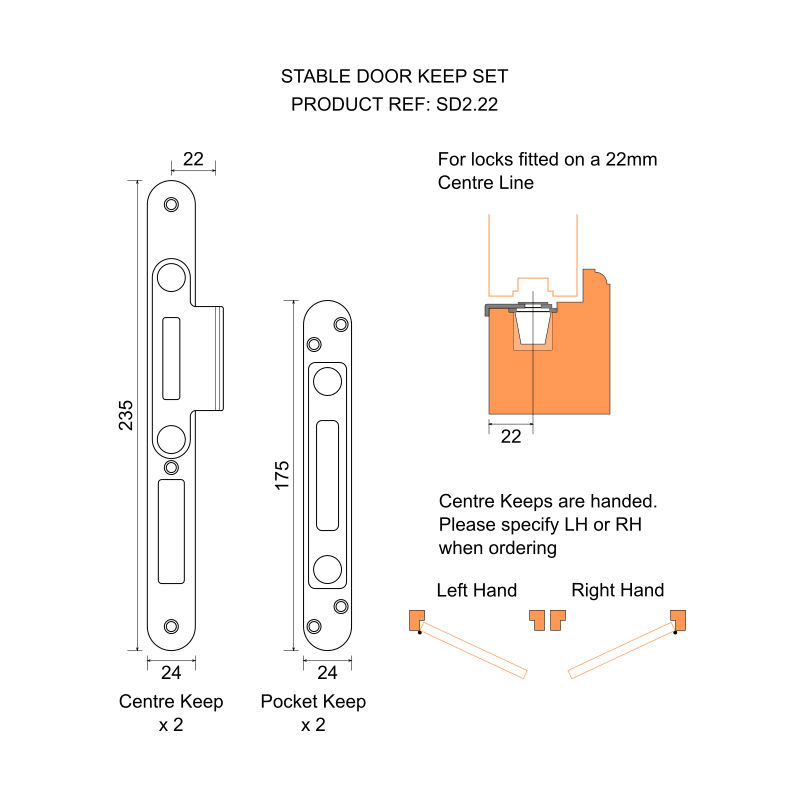

This lock is site reversible to suit left hand or right hand applications. However, keep sets are handed Left Hand or Right Hand and care must be taken to specify the correct hand when ordering.
For optimum security this lock should be fitted with a TS 007 3 Star cylinder (see our ULTION Maximum Security range) or a TS 007 1 Star cylinder with 2 Star cylinder guard (see our Adapta Prime High Security range). Depending on the requirement, lock cylinders can be key and turn type (external key/internal thumbturn), double cylinder (key both sides) or single cylinder (key one side only).
Lever handle furniture for the upper door section MUST be of a type that allows the handle to be lifted. Handle backplates should be compatible with the lock centres measurement and fixing centres measurements. Please refer to the relevant technical drawings.
For correct operation, a bolt must be fitted to join the upper and lower leaves when being used as a conventional door. Depending on the joinery detail, this can be either a traditional straight surface mounted bolt or a mortice rack bolt. Please refer to the relevant store sections.

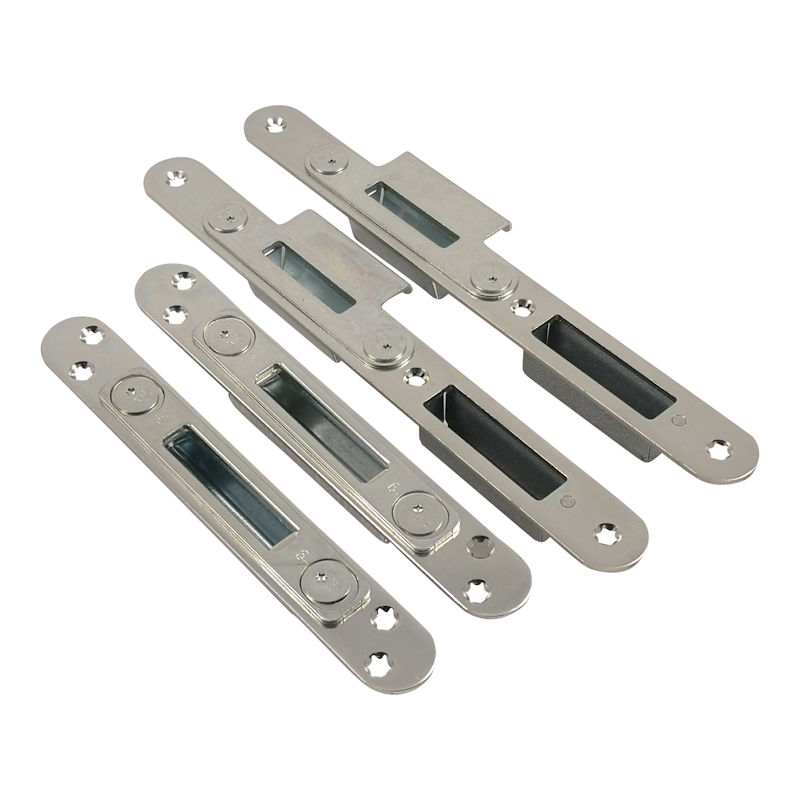

One set Multipoint Stable Door Lock upper and lower sections complete with four part adjustable keep set. Lock cylinders, handles, escutcheons and connecting bolt are NOT included and should be ordered separately if required.
This multipoint lock set is stocked in component parts in quantities normally sufficient to fulfill most orders for immediate despatch. Where we are temporarily out of stock you should allow approximately 10 - 14 working days for despatch. Please contact us if you would like to know the stock situation prior to placing your order.
