#08 - Yale 89 Standard Cylinder Rim Nightlatch Case

(Code: 2314.561)
£ 37.79
(-14.95%) £ 32.14
(2 Item(s) In Stock)
Add to cart
#08 - Yale 89 Standard Cylinder Rim Nightlatch Case
  • #08 - Yale 89 Standard Cylinder Rim Nightlatch Case
  • #08 - Yale 89 Standard Cylinder Rim Nightlatch Case
  • #08 - Yale 89 Standard Cylinder Rim Nightlatch Case

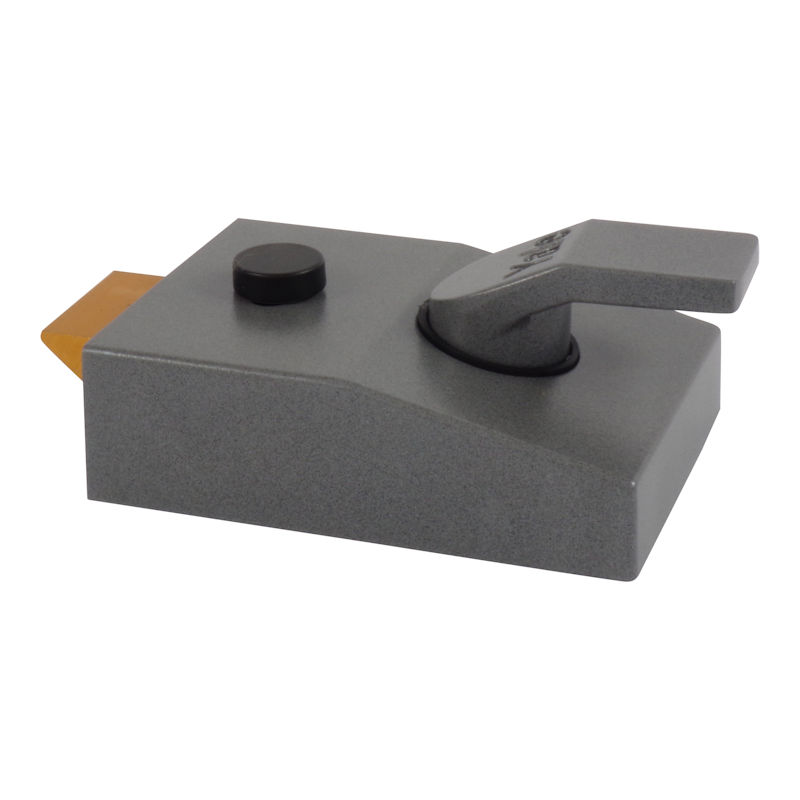

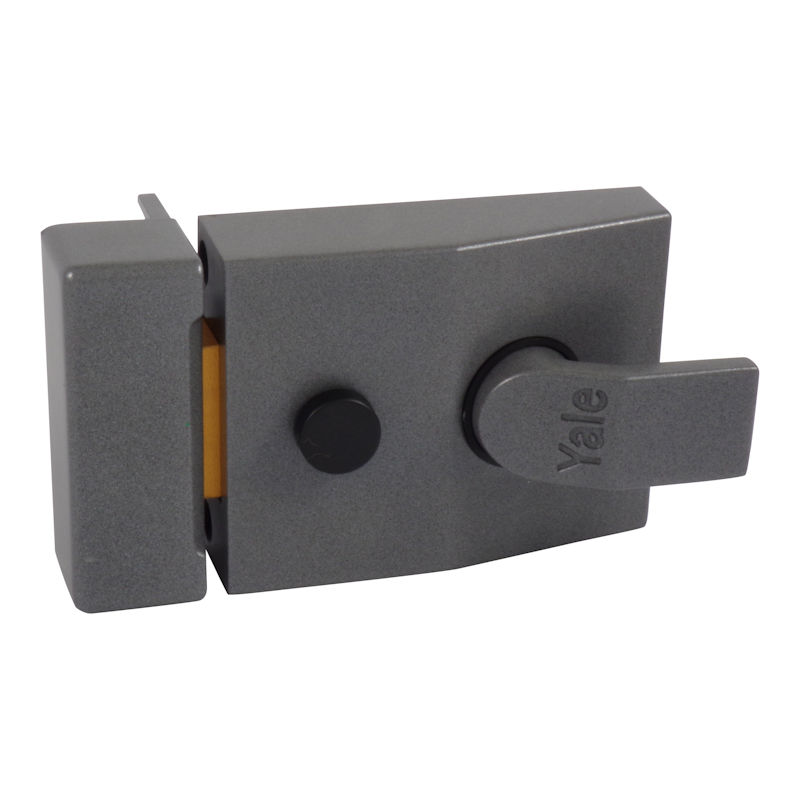

Standard Stile Cylinder Rim Nightlatch (Slam Lock) Case Only with Key Deadlocking Function


- Priced per Single complete with frame keep & fixing screws
- Latchbolt withdrawn by key externally & turn knob internally
- Bolt can be deadlocked or held back by internal snib catch
- External key deadlocking function

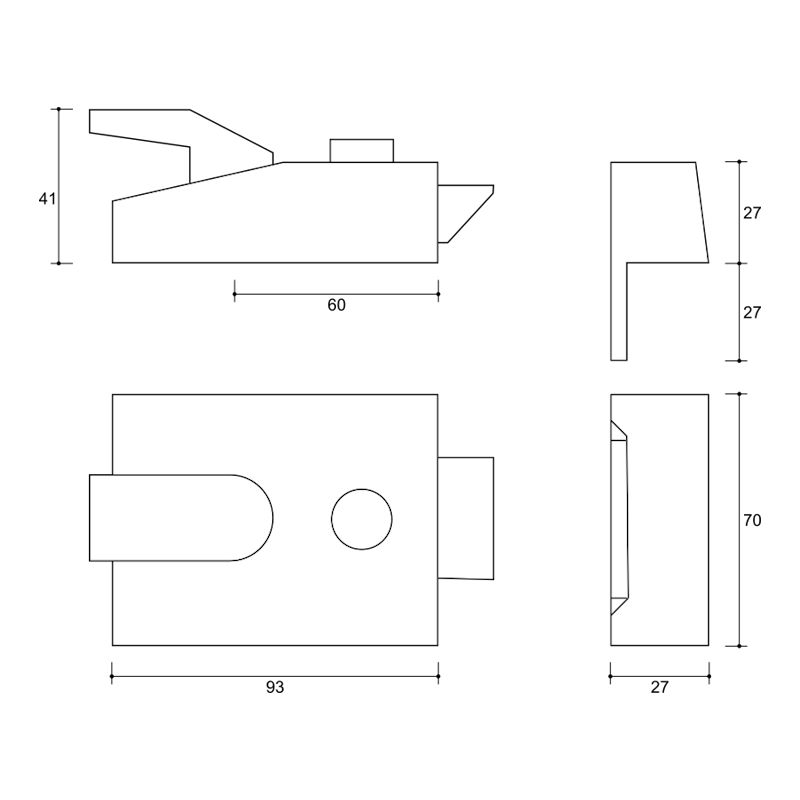

- 60mm backset for doors with standard stiles
- Core Stock Product

Yale Product Ref: 89

Medium Security 5 Year Guarantee Residential Use

Manufactured as part of the Yale brand, this high quality, popular Rim Nightlatch (Slam Lock) body is ideally suited to glazed or panelled wood doors with standard stile widths. The latchbolt can be held back in the withdrawn position or deadlocked using the internal snib rendering the lock inoperable by key or inside turn. In addition the cylinder "Deadlocking" function allows the lock to be deadlocked externally by a full turn of the key. The lock is non-handed to suit left hand or right hand applications without modification.

Use with any of our standard Round Rim Cylinders - a small selection can be found in the Related Items section below.

All of our rim nightlatches are supplied to suit inward opening doors as standard. Outward opening doors can be accomodated by reversing the latchbolt and fitting with an appropriate, alternative striking plate - please refer to the Related Items section below.

This nightlatch case is supplied WITHOUT an external cylinder lock barrel. Suitable Round Rim Cylinders can be purchased via the relevant store section.

For best results and long life, the internal moving parts of this lock should be lubricated with a light machine oil at least once a year.

One nightlach case complete with frame keep and fixings.

External Round Rim Cylinder lock barrels should be ordered separately.

This rim nightlatch case is normally available from stock. If we are temporarily out of stock you should allow 3 - 5 working days for despatch.
