#01 2.5" (66mm) Mortice Bathroom Lock for Lever Door Handles

(Code: 2523-752-150)
£ 20.20
(1 Item(s) In Stock)
Add to cart

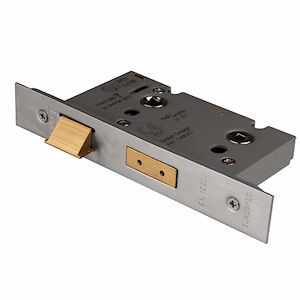

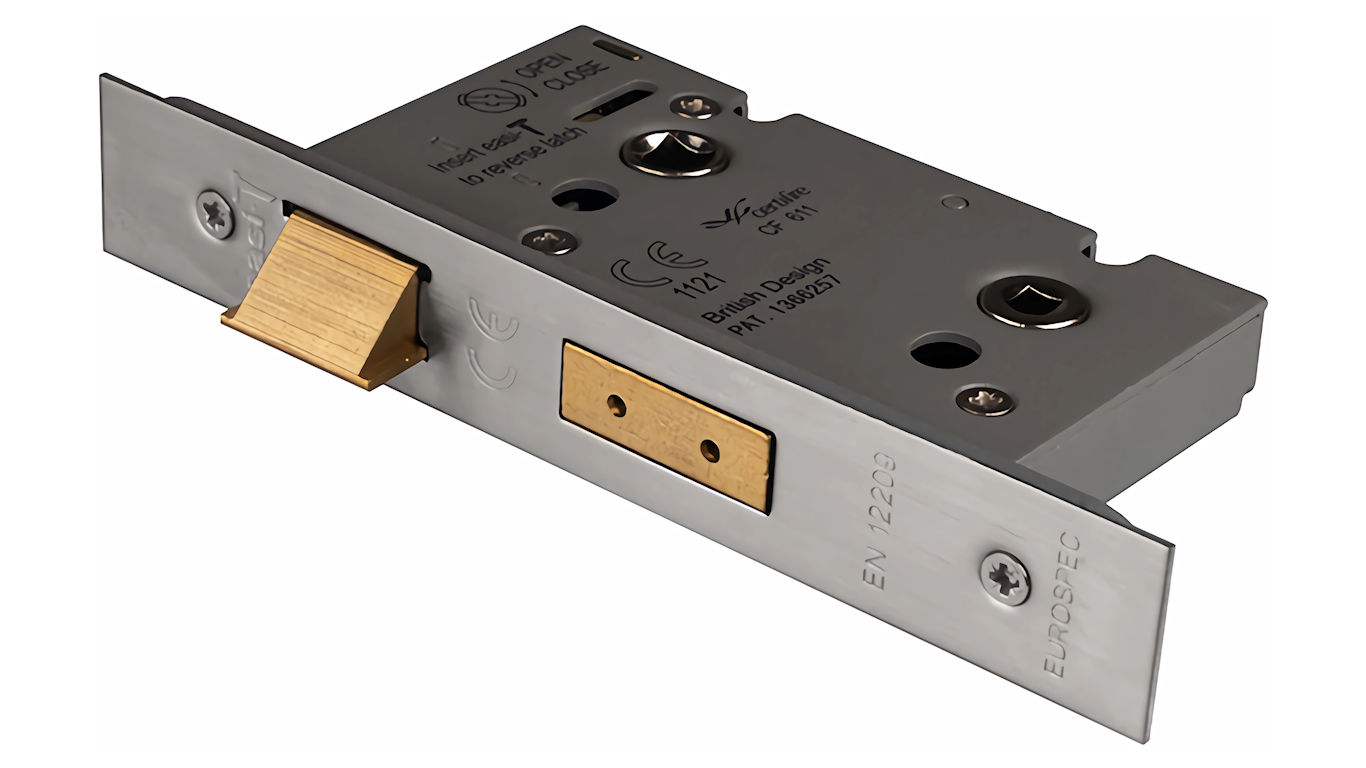

#01 2.5" (66mm) Mortice Bathroom Lock for Lever Door Handles
  • #01 2.5" (66mm) Mortice Bathroom Lock for Lever Door Handles
  • #01 2.5" (66mm) Mortice Bathroom Lock for Lever Door Handles
Suitable for FD30/FD60 Fire Doors

Medium Duty Upright Mortice Bathroom Lock for Self-Sprung Lever Door Handles

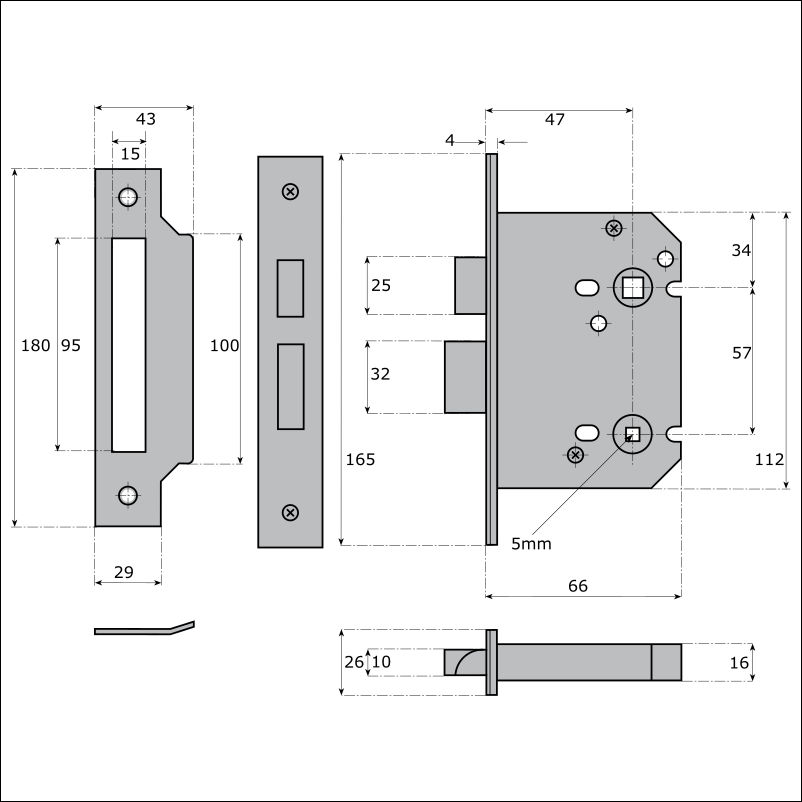

Dimensions: Case Depth 66mm, Backset 47mm, Centres 57mm
Thumbturn Spindle Follower: 5mm Square

Finish: Satin Stainless Steel

Priced per SINGLE c/w Strikeplate & Fixing Screws
Core Stock Product

This quality mortice privacy lock provides simple keyless locking of bathroom or toilet doors and is a good choice for both residential properties and medium use commercial applications. Suitable for self-sprung lever handle furniture on backplate with integral privacy thumbturn, or on rose with a seperate thumbturn and release set. The latchbolt is easily reversible on site to suit left or right hand hung doors. CE/UKCE certified and fully compliant for use on FD30/FD60 fire rated timber door sets when used with this [INTUMESCENT LINER PACK]

Part of our 'UK Base' range of modular sized upright mortice locks and latches.

Recommended for door thicknesses from 44mm to 56mm.

Supplied complete with frame striking plate and fixings for wood.

Suitable for use on double doors with rebated meeting stiles when used with the appropriate [REBATE CONVERSION SET]

This upright mortice privacy lock is suitable for FD30/FD60 rated doors in light to medium use settings. For full compliance on fire doors, this lock MUST be fitted with appropriate intumescent material on both door and frame.

This lock is medium sprung and should only be used with lever handle furniture with integral springing in the rose or backplate. NOT recommended for use with door knobs or ring handle furniture.

Detailed advice on the selection of mortice locks & latches can be found [HERE]

To keep this mortice lock in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Wipe clean with an oil impregnated cloth.
