#01 2.5" (67mm) 5 Lever BS3621 High Security Mortice Lock for Lever Door Handles

(Code: 2504-512-150)
Select Finish :
£ 29.00
(7 Item(s) In Stock)
Add to cart
#01 2.5" (67mm) 5 Lever BS3621 High Security Mortice Lock for Lever Door Handles
  • #01 2.5" (67mm) 5 Lever BS3621 High Security Mortice Lock for Lever Door Handles
  • #01 2.5" (67mm) 5 Lever BS3621 High Security Mortice Lock for Lever Door Handles
Suitable for FD30/FD60 Fire Doors High Security British Standard BS3621

High Security 5 Lever Mortice Sashlock to British Standard BS3621 for Self-Sprung Lever Door Handles

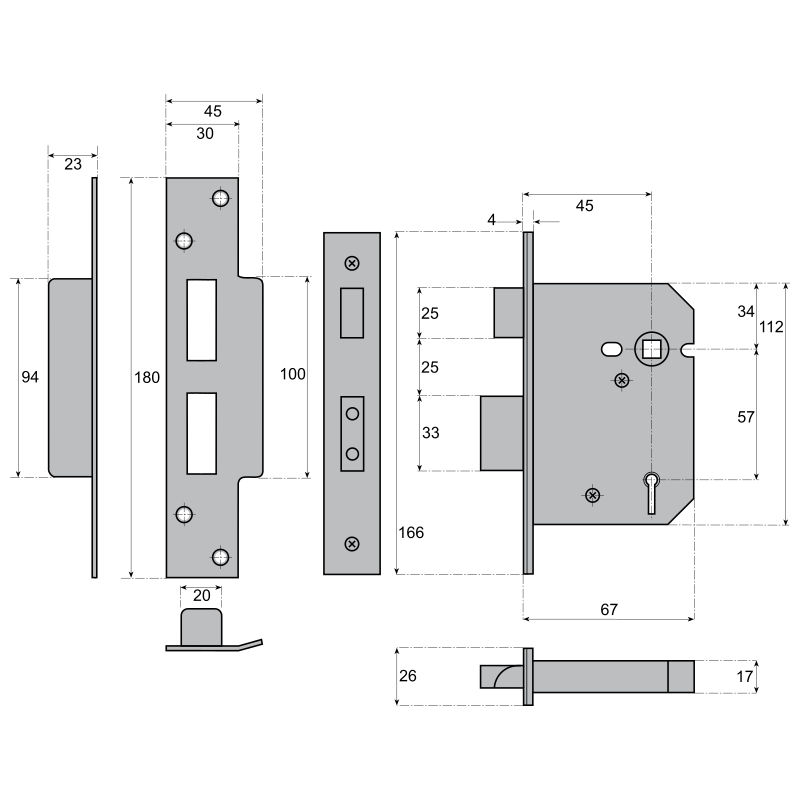

Dimensions: Case Depth 67mm, Backset 45mm, Centres 57mm

Priced per SINGLE c/w 2 Keys, Strikeplate & Fixing Screws
Core Stock Product

Use the drop down menu above to select from the following quality finishes:
(Click on a finish image for more details)
Satin Stainless Steel Stainless Brass PVD

One of our best selling locks and the first choice of many of our trades customers for external doors requiring a High Security 5 Lever Sashlock. The lock features a solid, hardened steel, anti-saw deadbolt with positive 20mm throw, hardened steel anti-drill side plates and 5 pick resistant levers. Suitable for self-sprung lever handle furniture on backplate, or on rose with seperate keyhole escutcheons. The latchbolt is easily reversible on site to suit left or right hand hung doors. Certified to BS3621 and recommended by insurance companies and the police. CE/UKCE certified and fully compliant for use on FD30/FD60 fire rated timber door sets when used with this [INTUMESCENT LINER PACK]

Recommended for door thicknesses from 44mm to 56mm.

Suitable for handle roses with horizontally opposed bolt through fixings.

Supplied complete with 2 keys, frame striking plate and fixings for wood.

Suitable for use on double doors with rebated meeting stiles when used with the appropriate [REBATE CONVERSION SET]

This upright mortice sashlock is suitable for FD30/FD60 rated doors in light to medium use settings. For full compliance on fire doors, this lock MUST be fitted with appropriate intumescent material on both door and frame.

This lock is medium sprung and should only be used with lever handle furniture with integral springing in the rose or backplate. NOT recommended for use with door knobs or ring handle furniture.

Detailed advice on the selection of mortice locks & latches can be found [HERE]

These locks are supplied "to differ" (individually keyed) with 2 keys per lock. If required, we can supply these locks in passing groups operated by the same key ("keyed alike" or "keyed to pass") to special order - please contact us for details

To keep this mortice lock in optimum working condition we recommend a once yearly application of light machine oil (3 in 1). Wipe clean with an oil impregnated cloth.
