#11 85mm Euro Profile Cylinder Escape Sashlock

(Code: 2535-603-150)
£ 30.77
(-9.98%) £ 27.70
(1 Item(s) In Stock)
Add to cart
#11 85mm Euro Profile Cylinder Escape Sashlock
  • #11 85mm Euro Profile Cylinder Escape Sashlock
  • #11 85mm Euro Profile Cylinder Escape Sashlock

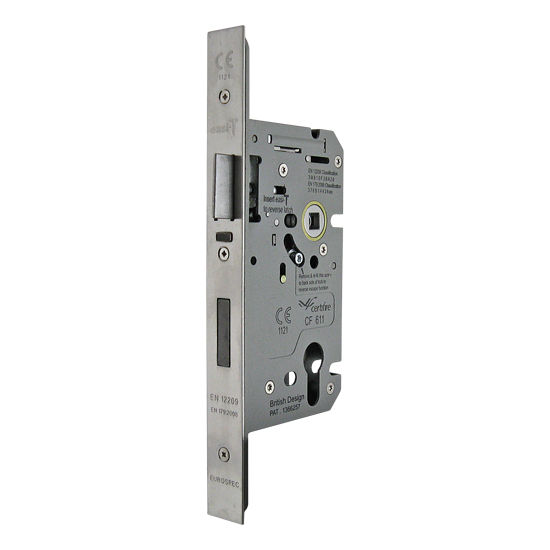

Heavy Duty Euro DIN Style Cylinder Mortice Escape Sashlock Case for Self-Sprung or Un-Sprung Lever Door Handles


- Priced per Single complete with frame keep & fixings
- Latchbolt withdrawn from either side by lever handle or externally by key
- Deadbolt operated by euro profile cylinder lock barrel
- Deadbolt withdrawn by internal lever handle for quick escape
- Anti-thrust bolt to prevent latchbolt manipulation

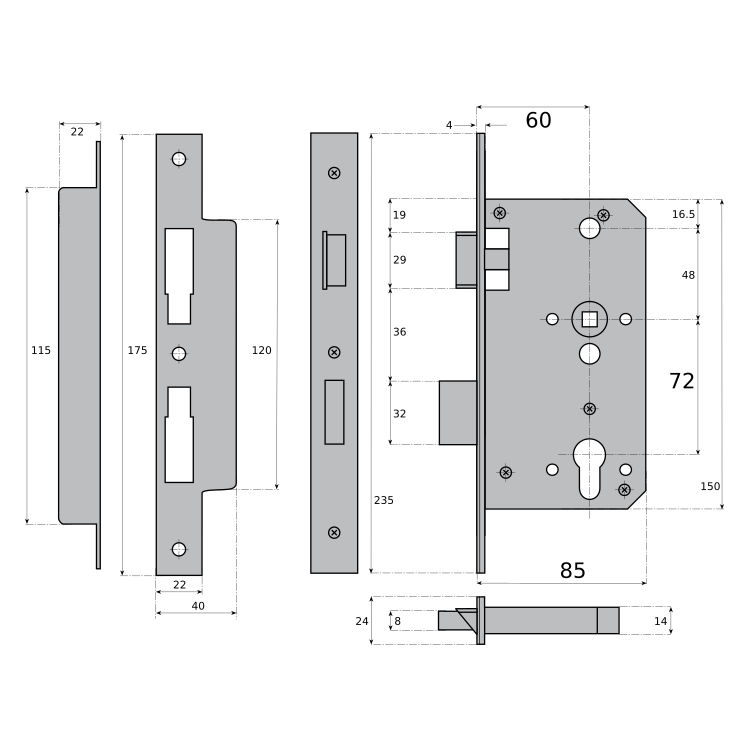

- 85mm case depth, 60mm backset, 72mm centres
- Optional [Rebate Conversion Set] for double doors
- Core Stock Product

Satin Stainless Steel

10 Year Guarantee CE Marked BS EN 12209: 2003 BS EN179 Fire Rated FD30/FD60
Residential Use Commercial Use Industrial Use

Forming part of our Euro Modular range this heavy duty Mortice Escape Sashlock case can be used with any of our Euro Profile Cylinder Lock Barrels to provide a range of locking functions. The split-follower Anti-Panic function allows single action easy exit in the event of an emergency and is an ideal solution for apartment entrance doors. Can be used with half-set lever handles internally only to provide an automatic locking nightlatch function. The latch follower is heavy sprung and ideally suited for use with un-sprung lever handle furniture. Easily reversible to suit left or right hand hung doors and approved for use on fire rated timber door sets in accordance with current regulations.

Lever handle furniture for this lock must be fitted with a suitable spindle to accomodate the split-follower function - please see the appropriate product in the Related Items section below.

To avoid fixing screws fouling the latch body use handles with horizontally opposed bolt through fixings or with backplates where fixing positions are adequately spaced. NOT recommended for use with door knobs.

Can be fitted to double doors with rebated meeting stiles when used with the rebate conversion set in the Related Items section below.

Detailed advice on the selection of mortice locks and latches can be found in our [Mortice Locks & Latches Specification Guide].

For best results and long life, this lock should be lubricated with a light machine oil at least once a year.

This product has been successfully type tested for conformity to all of the requirements of BS EN 12209 : 2003 including the additional requirements for fire/smoke door use. In addition, this product has been successfully type tested for conformity to all of the requirements of BS EN 179 : 2008 - certificates are available on request.

Fire rating is only applicable to this product when fitted to timber based door assemblies of proven fire resistance as defined in BS EN1634-1 or BS476 Part 22:1987 and when fitted with appropriate intumescent material.

One mortice escape sashlock case as described complete with faceplate, frame keeper plate and all fixing screws.

Euro profile lock cylinders should be ordered separately.

This lock is normally available from stock. If we are temporarily out of stock you should allow 3 - 5 working days for despatch.
