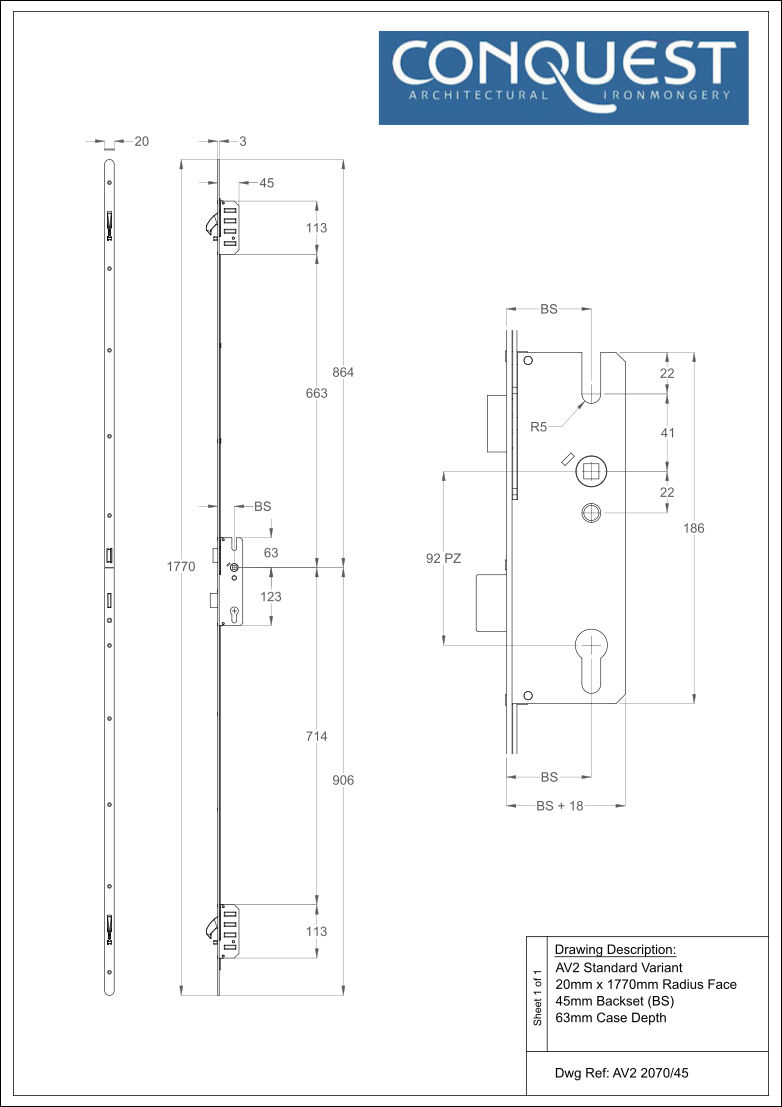

The AV2 Multipoint Lock system is an ideal solution for single entrance doors and other external doors in domestic settings that require automatic locking. An excellent choice for doors where lever handles are not required. This Standard variant has a radiused end faceplate and is suitable for door heights up to 2226mm.

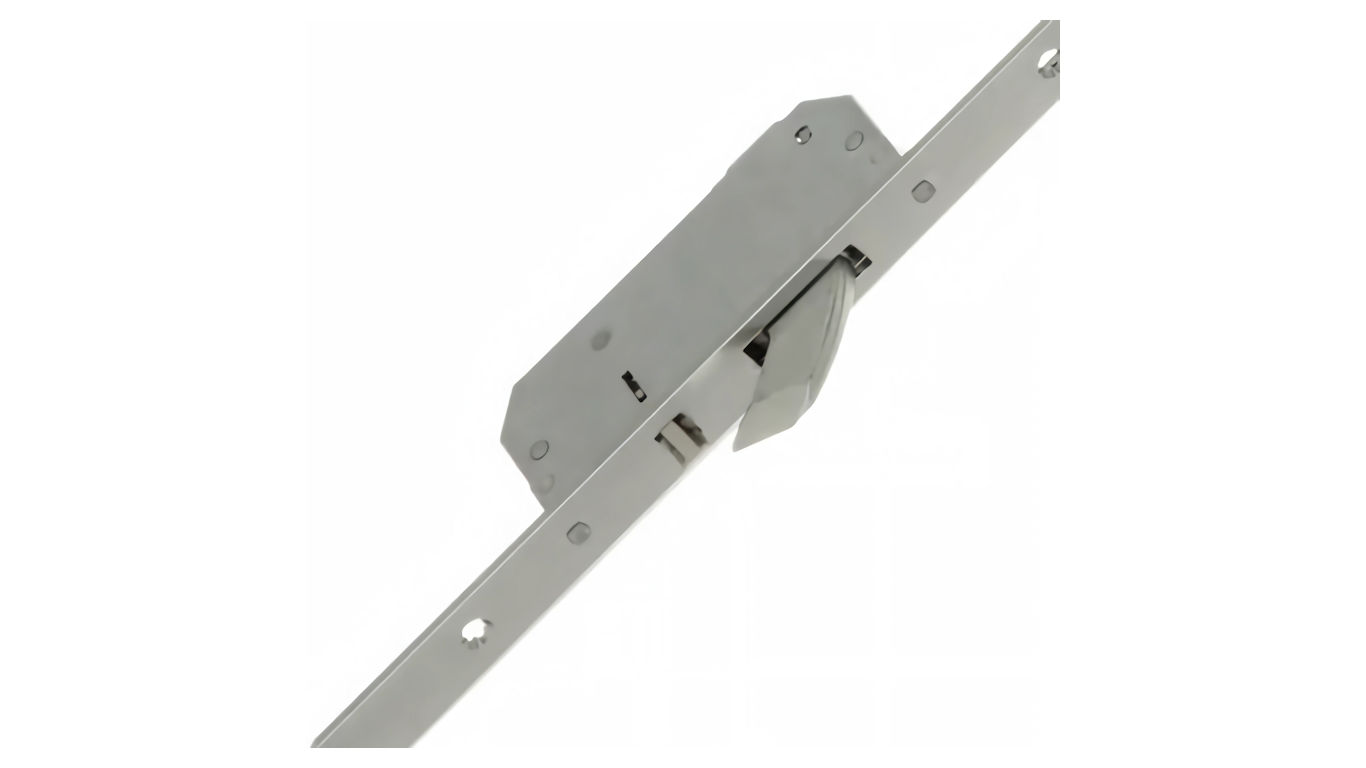

- External Operation: Closing of the door automatically throws the top/bottom hookbolts. Deadlocking is achieved by a full turn of the key. A reverse turn of the key withdraws the hookbolts and central deadbolt. Entry is then gained by an additional quarter turn of the key to withdraw the sprung latchbolt.
- Internal Operation (without Handle): Closing of the door automatically throws the top/bottom hookbolts. Deadlocking is achieved by a full turn of the key/thumbturn. A reverse turn of the key/thumbturn will withdraw the central deadbolt and hookbolts. The sprung latchbolt can then be withdrawn by an additional quarter turn of the key/thumbturn.
- Internal Operation (with Half-Set Lever Handle): Closing of the door automatically throws the top/bottom hookbolts. Deadlocking is achieved by a full of the key/thumbturn. A reverse turn of the key will withdraw the central deadbolt and allow the handle to withdraw the hookbolts and sprung latchbolt. Half-set handles will normally require a suitable half-spindle - see the 'Related Items' section below.

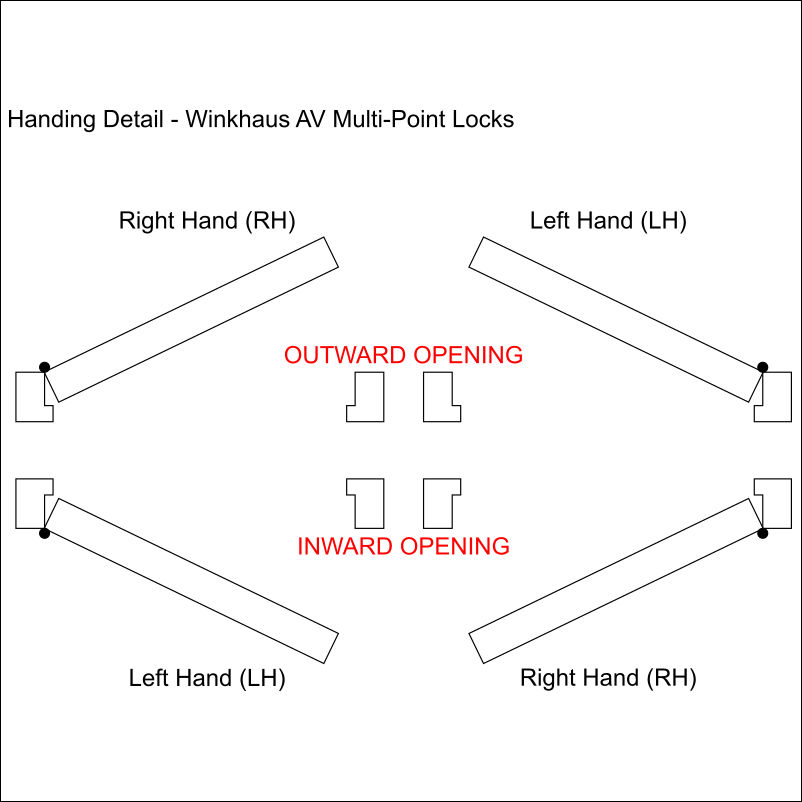

Important: These locks are handed for Left Hand (LH) hung or Right Hand (RH) hung doors - Please refer to the relevant technical image and make your selection from the drop down list above.
This lock is supplied WITHOUT centre strikeplate or bolt keeps. Suitable strike and keep sets can be found in the 'Related Items' section below.
Important: Winkhaus locks are finished with a corrosion resistant electroplating. However, care should be taken when fitting to highly acidic woods such as oak and accoya or in extreme coastal locations. Contact between the lock and bare timber should be avoided. Where possible, timber should be painted or varnished prior to fitting the lock especially under and around the faceplate. For best results we recommend the use of our 3 Part Corrosion Protection Kit.
Winkhaus multipoint locks are supplied WITHOUT fixing screws. Suitable fixings can be found in the 'Related Items' section below.
For optimum security this lock should be fitted with a TS 007 3 Star cylinder (see our ULTION Maximum Security range).
To keep this multi-point lock in optimum working condition we recommend a once yearly application of light machine oil (3 in 1) to all moving parts. Wipe clean with an oil impregnated cloth.
